Commercial Chocolate Enrober For Donuts / Wafer
  • Commercial Chocolate Enrober For Donuts / Wafer
  • Commercial Chocolate Enrober For Donuts / Wafer
  • Commercial Chocolate Enrober For Donuts / Wafer

Commercial Chocolate Enrober For Donuts / Wafer

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number PE15
Product Details
Capacity:
15KG Chocolate/batch
Belt Speed:
2meter/min
Enrober Belt Width:
180mm
Tunnel Belt Width:
200mm
Heating Method:
Electric Heating
Power:
4.6kw
Weight:
550KG
Voltage:
220V,Single Phase
Dimention:
6400*71*1350 Mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Donuts Commercial Chocolate Enrober

,

Wafer Commercial Chocolate Enrober

,

Chocolate Enrobing Equipment

Product Description

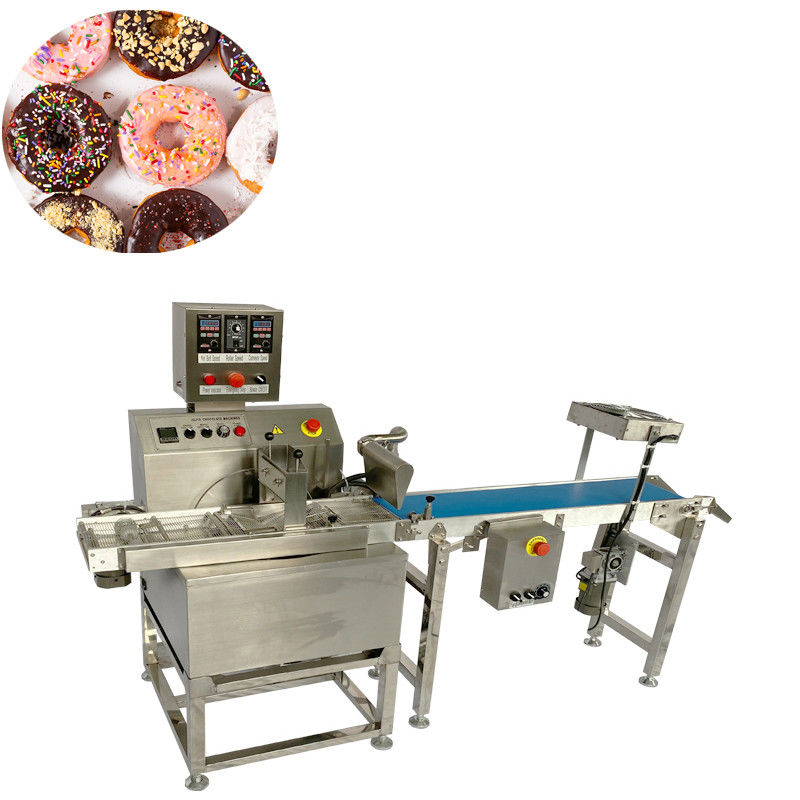

Commercial chocolate enrober for donuts/wafer



Description:



The small chocolate enrober for donuts/wafer consist of small chocolate enrobing machine and 3P Chocolate cooling tunnel or cooling fan conveyor belt.The commercial chocolate enrober can offer precise and consistent chocolate coating process that make sure the finished chocolated food products with consistent weight and uniform thickness.The 3P cooling tunnel can do the fast cooling for the chocolate,the temperature can be up to -18 degree.



The commercial chocolate enrobing machine has 4 models with different capacity for customer to choose: PE8, PE15, PE30 and PE60. For example,the PE15 Commercial chocolate enrobing machine tank capacity is 15kg chocolate per batch.The capacty for PE60 is 60kg one batch,customer can choose different model according to their daily chocolate consumption.



The chocolate enrobing machine is most often used to coordinate with other food making machines in food production:

1. The chocolate coating machine is used after the cereal bar making machine to coat chocolate on snack bars;

2. The chocolate coating machine is used after the automatic encrusting machine to coat chocolate on cookies and stuffed pastries;

3. The chocolate coating machine is used after the protein bar making machine to coat chocolate on protien bars, cereal bars and energy bars.

4. The chocolate coating machine is also used after the protein energy ball making machine to coat chocolate on protein balls and energy balls.



PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg





Commercial Chocolate Enrober For Donuts / Wafer 0



PE30 Commercial chocolate Dripping Machine Enrober demo video:



Commercial Chocolate Enrober For Donuts / Wafer 1

Commercial Chocolate Enrober For Donuts / Wafer 2



Food coated by PE15 Chocolate enrobing machine



Commercial Chocolate Enrober For Donuts / Wafer 3



Application:



protien bar extruder with PE15 small chocolate enrobing line video:





PE15 Small chocolate enrobing line for energy ball video:







Optional devices:



Automatic protein bar extruding machine

Description:



The complete protein bar extruding line incudes mixer, encrusting machine, date bar cutter, tray arranger, conveyor, baking oven, flow wrapping machine. Optional equipment can be added to the date bar production line, such as maamoul stamping machine for making maamouls and mooncakes, ball roller machine for making energy balls and date balls, wire cut machine for making wire cut cookies and panda cookies,etc.



Specifications:

Model P160
Capacity 60 pcs/min
Application Stuffed date bar, date cookies, date roll, fig newtons, date bites, etc.
Product weight 10-250g
Casing and filling proportion 1:9-10:0
Voltage 220V, single phase
Power 4.5kw
Dimension 4000*1650*1560mm
Weight 650KG



Commercial Chocolate Enrober For Donuts / Wafer 4
