Automatic Continuous Chocolate Enrobing Machine With Melting Tank
  • Automatic Continuous Chocolate Enrobing Machine With Melting Tank
  • Automatic Continuous Chocolate Enrobing Machine With Melting Tank
  • Automatic Continuous Chocolate Enrobing Machine With Melting Tank
  • Automatic Continuous Chocolate Enrobing Machine With Melting Tank
  • Automatic Continuous Chocolate Enrobing Machine With Melting Tank
  • Automatic Continuous Chocolate Enrobing Machine With Melting Tank

Automatic Continuous Chocolate Enrobing Machine With Melting Tank

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number PE8
Product Details
Capacity:
8KG Chocolate/batch
Belt Speed:
2meter/min
Enrober Belt Width:
180mm
Tunnel Belt Width:
200mm
Heating Method:
Electric Heating
Power:
1.8kw
Weight:
80KG
Voltage:
220V,Single Phase
Dimention:
2000*570*1350mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Continuous Chocolate Enrobing Machine

,

Melting Tank Chocolate Enrobing Machine

,

Automatic Small Scale Chocolate Enrober

Product Description

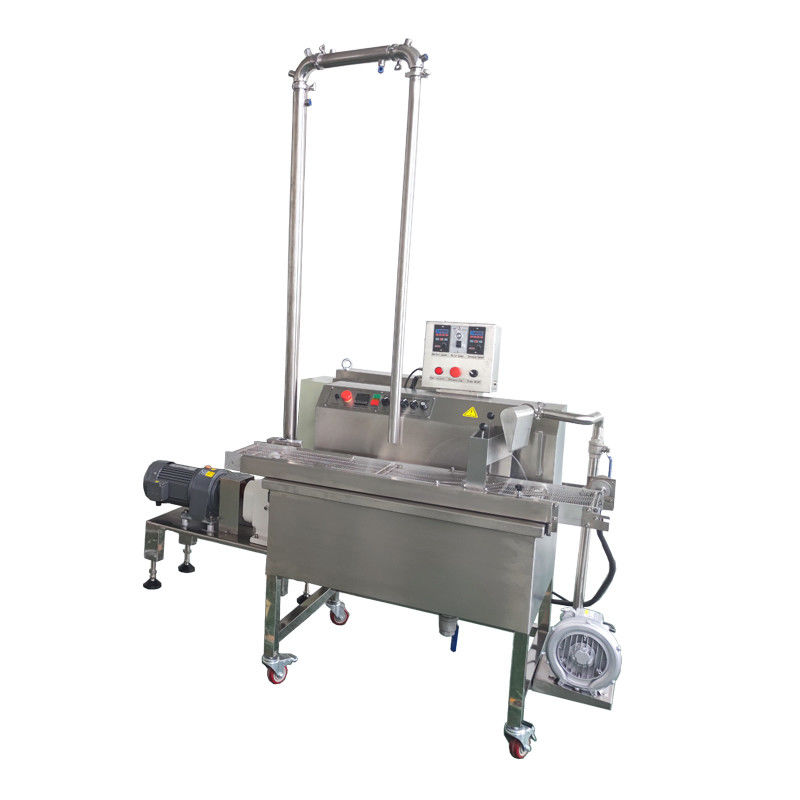

Automatic continuous Chocolate supply enrobing Machine with melting tank

Description:

Automatic continuous Chocolate Enrobing Machine with melting tank is the new combination that we desigend for the customers who have large chocolate production demand,but have very limited operation space.The chocolate enrober with continuous supply consist of the chocolate enrober machine,chocolate melting tank and chocolote pump and pipes.

The chocolate enrobing line is used to create a consistent waterfall to coat the food with finished chocolate coated food products with uniform size,consistent weight and perfect finish.

The chocolate melting tank is used to melt the chocolate into liquid and for warm keeping storage,the chocolate pump is used for chocolate liquid transferring to the chocolate enrobing machine tank,all these chocolate equipment can be connected via a water-jacketed pipes,which can supply the chocolate liquid continuously to the small chocolate enrober.

PE8/PE15/PE30/PE60 Commercial fan cooling small chocolate enrober specifications:


Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg


Automatic Continuous Chocolate Enrobing Machine With Melting Tank 0


Food coated by small chocolate enrober machine

Automatic Continuous Chocolate Enrobing Machine With Melting Tank 1

Application:

Commercial small chocolate enrober demo video:



Small chocolate enrobing line with cooling tunnel for protein bar video:



Papa Industrial is the expert for the chocolate coating machines, we have been exporting the chocolate coating machines to oversea countries for more than ten years. both our commercial chocolate enrober machine and our industrial chocolate enrobing machine are hot sold, please contact us immediately for more information about our small chocolate enrobing machine!
