Place of Origin | CHINA |
Brand Name | iPAPA |
Certification | CE |
Model Number | PE8 |

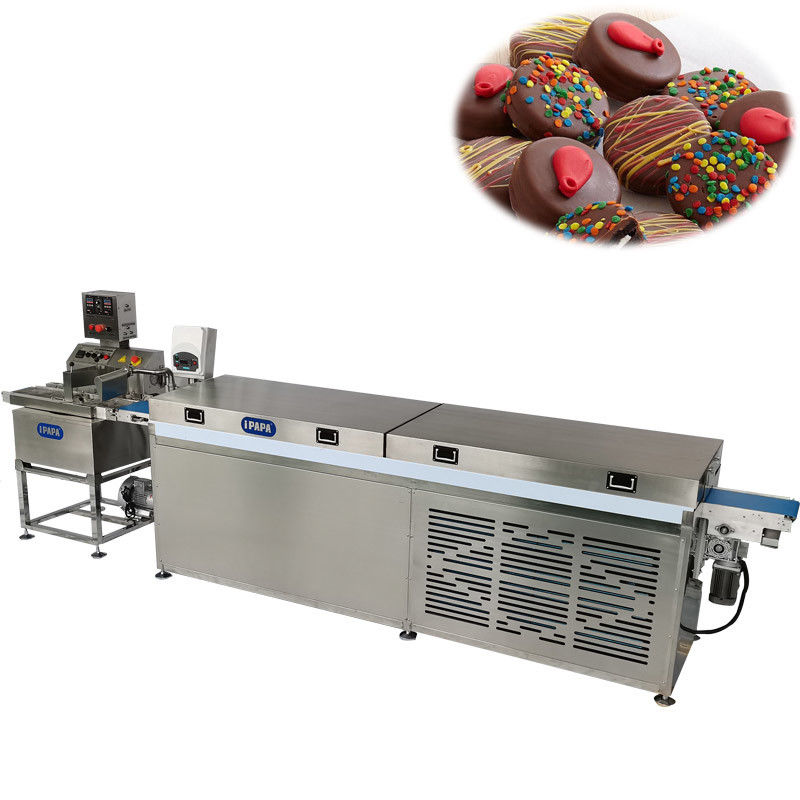

Perfect equipment chocolate enrober/Chocolate covered machine
Description:
The Perfect equipment chocolate enrober/Chocolate covered machine consit of chocolate enrobing line and cooling device.The small chocolate enrobing line is we designed for small chocolate industry,which is mainly used to improve the enrobing chocolate efficiency than chcolate dipping by hand,it can make the finished food products with uniform thickness and consistent weight,such as energy bars, protein bars, candy bars, rice bites, wafers and wafer stick, birthday cakes, cakes, breads, rolls, pies, muffins, snacks, candies, confectionery, maamoul and mooncakes, cookies, biscuits, crackers, cake ball, date ball and chocolate truffles, mochi, dates, strayberries and other fruits etc.
The cooling device for the perfect equipment chocolate enrober we use is 3P cooling tunnel and ordinary cooling fan converyor,the chocolate cooling tunnel is mainly designed for industrial lelvel usage,which create very low temperature to cool the chocolate fast.The cooling fan conveyor is mainly designed for home use,which don't need dry the chocolate very well.
The small chocolate enrobing line is very suitable for the customers who have small chocolate production demand and very limited operation space,which can improve the chocolate enrobing efficiency high than manually.
There are 4 different capacity for our small chocolate coating machine,such as 8kg,15kg,30kg&60kg,the small chocolate enrober can connect to our 3P cooling tunnel or cooling fan conveyor belt for chocolate drying,customers can choose the suitable combination according to their daily production requirement.
Type 1: Chocolate enrobing machine + 3.2M Cooling tunnel
Type 2: Chocolate enrobing machine + 2M Fan cooling conveyor
Specifications:
Model | PE8 |
---|---|
Capacity | 8KG chocolate/batch |
Belt speed | 2meter/min |
Enrober mesh belt width | 180mm |
Tunnel PU belt widh | 200mm |
Heating method | Electric heating |
Voltage | 220V, single phase |
Power | 2.0kw |
Dimension | 4400*650*1320 mm |
Weight | 500KG |
Features:
1.This chocolate coating machine is made up of the pouring ,vibrating and Auto temperature control into one.
2.It is quite flexible,and to be with compact conformation.
3.It is easy operation and convenient maintenance.
4.It is the main equipment which suitable for pouring and filling chocolate on-the-spot in food company, lab and shops.
Temperature range 1-10 degrees adjustable, US brand Copeland compressor 304 stainless steel material, 3MM thick stainless steel industrial pipe frame.Two layers insulation cotton inside stainless steel mirror decoration
After-sale service:
1.Free assembling and installation,free operation and training.
2.12months quality warranty since the date of installation.Whole life services.
3.During warranty,all maintenance and damaged spare parts for free.After warranty,all charges with cost price.
4.Support 24hours hot line service,as well as email and video communications.
5.Engineer is always available for customers' machine adjustment and maintenance if require
Application:
Food coated by PE8 Chocolate belt coating machine:
protien bar machine working with PE8 small chocolate coating machine video:
PE8 Small chocolate coating machine for energy ball video:
Shanghai Papa Industrial Co., LTD is the leading manufacturer for chocolate machines with well-equipped testing facilities and strong technical force team. Because of the wide range, good quality, reasonable price and stylish design, our chocolate enrobing machines are extensively used in food industry and help so many people develop their careers.
