P307 Automatic date paste fruit bar making machine
  • P307 Automatic date paste fruit bar making machine
  • P307 Automatic date paste fruit bar making machine
  • P307 Automatic date paste fruit bar making machine
  • P307 Automatic date paste fruit bar making machine
  • P307 Automatic date paste fruit bar making machine
  • P307 Automatic date paste fruit bar making machine

P307 Automatic date paste fruit bar making machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P307
Product Details
Capacity:
10-60 Pcs/min
Product Shape:
Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight:
10-250g
Power:
3.5kw
Voltage:
220V,Single Phase
Dimention:
5500*650*1380 Mm
Weight:
600KG
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Fruit Bar, Date Bar, Energy Bar, Protein Bar, Etc.
High Light:

P307 date paste bar machine

,

60pcs/min date paste bar machine

,

3.5kw paste making machine

Product Description

P307 Automatic date paste fruit bar making machine



Description:

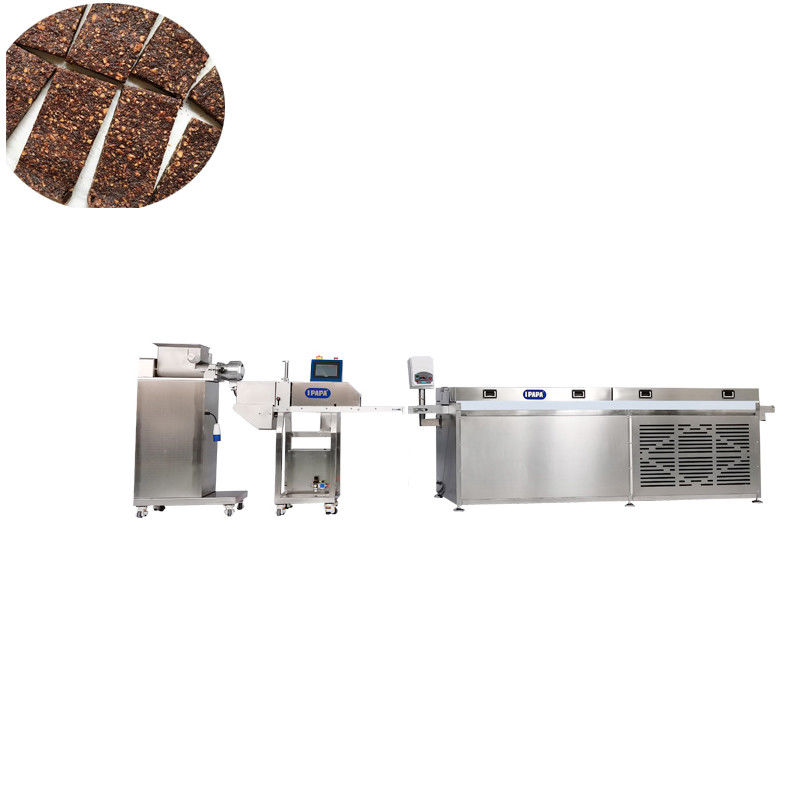

P307 Automatic date paste fruit bar making machine consists of fruit bar extruder, fruit bar cutter and cooling tunnel. The P307 Fruit bar making machine with cooling tunnel is suitable for making dried fruit bar or sticky fruit bar, date bar, energy bar, protein bar, etc. The fruit bar or date paste bar comes out of the fruit bar extrusion machine nozzle was transfered by the conveyor belt, as fruit bar or date paste bar is normally sticky material, they will stick to the belt and cutting blade, so cooling tunnel is used to cool the bars for easy taking the bars away and easy packaging by film. The cooling tunnel can be customized according to customer's requirements.



P307 Fruit bar making machine is mostly used for making fruit bar and date bar, so it is also called date bar making machine. The chocolate enrober machine is optional to choose between the fruit bar machine and the cooling tunnel for making chocolate coated date bar and chocolate coated fruit bar. The flow wrapping machine is also optional to choose after the cooling tunnel for automatic bar packaging. The date bar making machine can make pure date paste bar or nuts mixed date bar. The date bar machine can handle high temperature fruit paste during extrusion and cutting process. Also the cutting blade of the date bar cutting machine is anti-sticky treated to handle the fruit paste.



P307 Date bar extruder machine has a 30kg capacity feeding hopper driven by double spirals, and with a speed of maximum 60 pieces bars per minute. The P307 Date paste bar making machine is the ideal equipment for beginner and market testing.



Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 3.5kw
Dimension 5500*650*1380mm
Weight 600KG





Fruit bar making machine with cooling tunnel:

P307 Automatic date paste fruit bar making machine 0



Fruit bar making machine with chocolate enrober:

P307 Automatic date paste fruit bar making machine 1

Fruit bar making machine with chocolate enrober demo video:





Bar produced by P307 Fruit bar making machine



P307 Automatic date paste fruit bar making machine 2

P307 Automatic date paste fruit bar making machine 3



Application:



Fruit bar making machine with packaging line video:





Date bar making machine with chocolate enrobing line video:





Optional devices:



1. Metal detector

The metal detector is widely use for detecting metals in food, pharmaceutical products, rubber, garment, plastic, beverage, chemical and any other industries to ensure product safety and protect your brand.

P307 Automatic date paste fruit bar making machine 4

2. Checkweighter

Checkweighter is used for online weight check for packed food. Step for food quality control, It is high accurate loadcell based on advanced DSP technology, and automatic weighing compensation and zero tracking, as well as quickly product shift and speed recall.

P307 Automatic date paste fruit bar making machine 5

3. Flow wrapping machine

Automatic flow packing machine is used for food packing, featuring by steady working and excellent quality. It can pack variety of different materials and be very multifunctional to pack different kinds of food, such as bars, cookies, biscuits, cakes, breads, etc.

P307 Automatic date paste fruit bar making machine 6
