P307 Chocolate Coated Fruit Energy Protein Bar Making Machine

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 14-30 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P307

Detail Information

Capacity: 10-60 Pcs/min Product Shape: Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight: 10-250g Power: 9kw
Voltage: 220V,Single Phase Dimention: 8000*2500*1450 Mm
Weight: 1300KG Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Protein Bar, Energy Bar, Fruit Bar, Date Bar, Chocolate Bar, Cookies, Etc.
High Light:

P307 Protein Bar Extruder Machine

,

Coated Protein Bar Extruder Machine

,

9kw chocolate bar making machine

Product Description

P307 Chocolate Coated Fruit Energy Protein Bar Making Machine

Description:

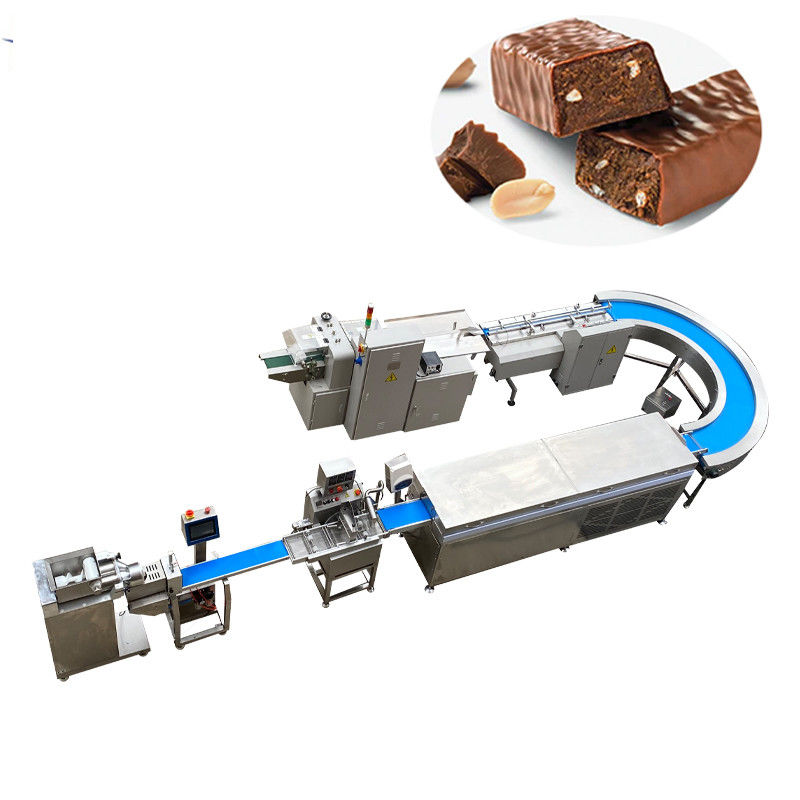

P307 Chocolate Coated Fruit Energy Protein Bar Making Machine includes protein bar extruder machine, protein bar cutter, chocolate enrober, chocolate cooling tunnel, 180 ° turning conveyor, connection conveyor, flow wrapping machine. Customer can freely choose the machines needed for suitable collocation.

Protein bar cutting machine is the bar forming machine, the extrusion nozzles can be customized by bar width and height. The protein bar making machine can adjust the bar length by screen panel.

Chocolate enrober is the essential equipment for chocolate coating outside the bar, the chocolate coating can be fully coated or bottom coated on the bar, of course, the chocolate enrober machine can coat other food as well besides the bar products.

Chocolate cooling tunnel is the essential equipment for chocolate cooling, The cooling tunnel has strong 3P power refrigerating unit to reach minimum minus 20 ℃ temperature. Except for cooling chocolate, customer can connect the cooling tunnel right after the protein bar machine for making sticky bars without chocolate coating.

180 ° Turning conveyor is used to connect the cooling tunnel and flow wrapping line for saving space. Customer can take it out as long as he has enough space for the protien bar production line. Besides, we can customize the turning conveyor to different radian ( such as 90 °)to meet customer's factory layout.

Flow wrapping line has automatic sensor to sort and count the bars in order before entering the flow wrapping machine, and the film downside wrapping type can perfectly protect the bars from broken or deformed, especially for protecting fragile and sticky bars.

P307 Chocolate coated protein bar making machine is special designed for bar products, such as protein bar, fruit bar, energy bar, date bar, coconut bar, nutrition bar, power bar, chocolate bar, bar shape cookies, date roll, date bites, disc, etc.

P307 Chocolate coated protien bar making machine is our small protein bar line special designed for low production, new business or limited space. It has a low capacity of maximum 60 pieces bar per minute, if customer need big capacity,we have P400 Multiple row protein bar extruder for customer to choose.

Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 9kw
Dimension 8000*2500*1450mm
Weight 1300KG



P307 Chocolate Coated Fruit Energy Protein Bar Making Machine 0
P307 Chocolate Coated Fruit Energy Protein Bar Making Machine 1


Bar produced by P307 protein bar making machine:
P307 Chocolate Coated Fruit Energy Protein Bar Making Machine 2

Application:

Complete Small chocolate coated protein bar production line video:



Small fruit bar production line with packaging machine video:



Small chocolate coated date bar production line video:



Double layers bar production line with granules sprinkler video:



Related Product

Small P301 Cereal Bar Making Machine

Papa small cereal bar making machine is designed to make bars based on cripsy rice, puffed rice, cereals, granolas, nuts, seeds, dry fruits, protein powder, grounded nut powders or energy elements. So the slab bar forming machine can make puffed rice bar, rice crispy/rice krispies, cereal bars, granola bars, muesli bars, nut bars, seed bars, dry fruit bars, protein bars, power bars, peanut bars, sesame snaps, and other energy bars.Papa small P301 Automatic slab bar making machine uses slab rolling technology to roll the material mixture into a whole slab with desired height and width, then the slab is cutted by the vertical and horizontal cutting knives to be each uniform sized bars.



The small cereal bar cutting machine is the slab bar former that we desigend for lab and other small barkey shop use.The footprint of the small food bar press machine is very small,which is very suitable for the customers who has very limited operation space,but need make the hard protein bar food that other ordinary energy bar maker can't make.The mini cereal bar making machine includes feeding hopper, double rollers, cooling fans, cutting unit, conveyor and control box

P307 Chocolate Coated Fruit Energy Protein Bar Making Machine 3

P307 Chocolate Coated Fruit Energy Protein Bar Making Machine 4

Specifications:


Model P301
Capacity 100-130 KG/H
Cooling type Cooling fans
Voltage 380V, three phase
Power 5kw
Dimension 2500*120*1200mm
Weight 450KG






Advantages:
Small footprint size: 10㎡

Low power consumption

Low investment.

Operator required: 1

Material: nuts, melon seeds, fruits, pop rice, granola, or their mixture

Versatile products: nut bar, granola bar, rice bar, fruits bar, energy bar...

Binder: jaggery, glucose, honey, dates, chocolate, fruit jam....

Setting up: ready set up before delivery, just need connecting cable line.

Easy to learn: one hour online training

Lead time: 18 days

Package: Export wooden case, suitable for long terms transportation..


Bars produced by P301 Slab bar forming machine:

P307 Chocolate Coated Fruit Energy Protein Bar Making Machine 5

1.Is the cereal bar sheeting cutting machine fully automatic?

The cereal bar manufacturing machine is an automatic machine, the whole cereal bar manufacturing process includes cereal bar extrusion, cereal bar rolling and slabing, cereal bar cutting and cereal bar conveying.Customers just need put the well mixed ingredients in the hopper of the slab bar former,the cereal bar or granola bar can finished automatically.Customer can also connect the small snack bar food machine to our small chocolate enrober to do the chocolate coating to make the chocolate coated bar.



2.Can the cereal bar machine make the soft protein bar and fruit bar?

The cereal bar making machine is mainly used to make the hard protein bar,such as cereal bar,nut bar,but the cereal bar machine can also make protein bar and fruit bar as well. But if the mixture is very soft, a cooling tunnel is needed before the cereal bar cutting machine.Under the circumstances,we will direclty suggest the customer to choose our protein bar extruder machien rather than the slab forming machine.



3.Can the cereal bar machine make granola bar?

P301 is also a granola bar machine or sesame snaps bar machine, some customers' granola bars need be baked before the granola bar cutting machine, this requires a tunnel baking oven to be added before the granola bar forming machine. Some customers' granola bars can be baked after the cutting, so this depends on customer's requirements. A complete granola bar production line includes granola bar making machine, granola bar cutting machine, granola bar baking oven, and granola bar packing machine.



4.Can the cereal bar machine make candy bar?

As a slab bar forming line, can the cereal bar machine make candy bar? The cereal bar making machine can make peanut candy bar, sesame candy bar, rice candy bar, cereal candy bar, etc. The cereal bar making machine can't make chocolate candy bar like mars or snickers. These two kinds of chocolate candy bar contains caramel, they need special candy bar making machine.


Optional devices:

1. Metal detector
The metal detector is widely use for detecting metals in food, pharmaceutical products, rubber, garment, plastic, beverage, chemical and any other industries to ensure product safety and protect your brand.
P307 Chocolate Coated Fruit Energy Protein Bar Making Machine 6

2. Checkweighter
Checkweighter is used for online weight check for packed food. Step for food quality control, It is high accurate loadcell based on advanced DSP technology, and automatic weighing compensation and zero tracking, as well as quickly product shift and speed recall.
P307 Chocolate Coated Fruit Energy Protein Bar Making Machine 7

Small protein bar line with metal detector and checkweighter video:



3. Planetary mixer
The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.
P307 Chocolate Coated Fruit Energy Protein Bar Making Machine 8
P307 Chocolate coated protein bar making machine is an ideal small bar line for starting a new business and for low investment, If you have any questions about the P307 Protein bar making machine, please send us an inquiry, we will answer you as soon as possible!
