P307 Horizontal Small Protein Bar Extruder Machine
  • P307 Horizontal Small Protein Bar Extruder Machine
  • P307 Horizontal Small Protein Bar Extruder Machine
  • P307 Horizontal Small Protein Bar Extruder Machine
  • P307 Horizontal Small Protein Bar Extruder Machine
  • P307 Horizontal Small Protein Bar Extruder Machine
  • P307 Horizontal Small Protein Bar Extruder Machine
  • P307 Horizontal Small Protein Bar Extruder Machine

P307 Horizontal Small Protein Bar Extruder Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P307
Product Details
Capacity:
10-60 Pcs/min
Product Shape:
Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight:
10-250g
Power:
0.5kw
Voltage:
220V,Single Phase
Dimention:
2250*560*1380mm
Weight:
180KG
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Fruit Bar, Date Bar, Energy Bar, Protein Bar, Etc.
High Light:

Horizontal Protein Bar Extruder Machine

,

60pcs min Protein Bar Extruder Machine

,

single phase small protein bar extruder

Product Description

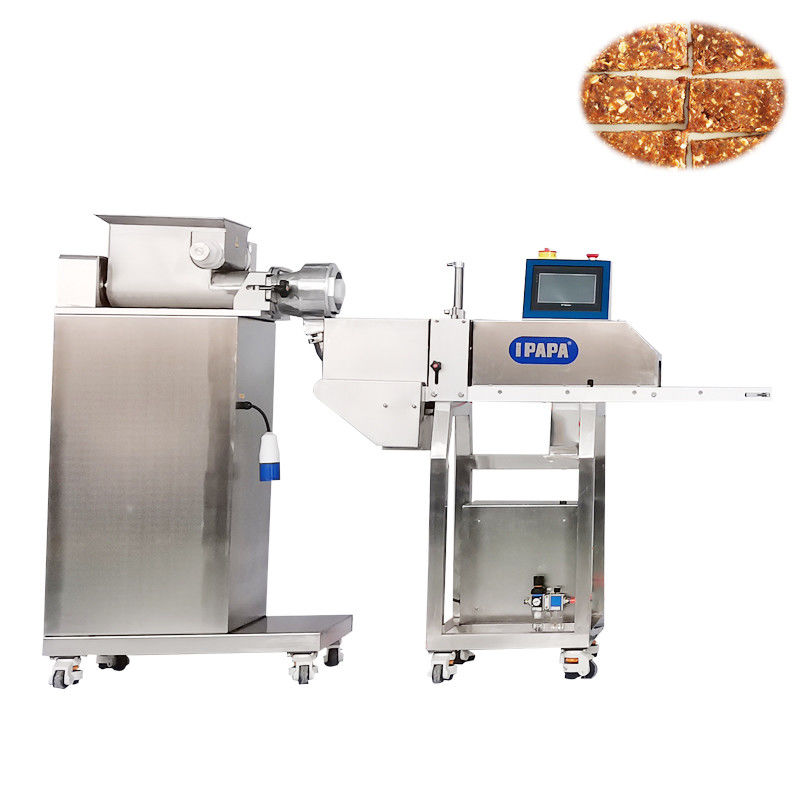

P307 Horizontal Small Protein Bar Extruder Machine



Description:



P307 Horizontal small protein bar extruder machine is our fourth generation protein bar extruder machine, The P307 Small protein bar extruder is horizontal designed for better dough transfering, and driven by two PE spirals inside the stainless steel flat feeding hopper, the sprials will transfer the pre-mixed dough to the rectifier for dough equally distribution, then the dough comes of the custom made nozzles to form a bar and finally conveyored and cutted by a separate vertical protein bar cutting machine. The P307 Small protein bar making machine is controlled by PLC program and operated by screen panel. All settings are done in the touch screen,which includes each section speed adjustment and memory settings.



P307 Small protein bar extrusion machine is special designed for bar products with different shapes like bar shape, round shape, disc shape, bites shape, pyramid shape, etc. It is avaibale to make protein bar, date bar, fruit bar, energy bar, power bar, nutrition bar, coconut bar, cookies and so on.



P307 Small protein bar manufacturing machine is small sized, automatic control and easy cleaning, It is little space required, so it is suitable to be used at home, shops or in factory.



P307 Small protein bar cutting machine can be used alone or combined with other food machines: It can combine cooling tunnel for products which need cooling; It can combine chocolate enrober for chocolate coated products; It can combine packing machine for auto bag wrapping: It can combine oven for baking; It can be used in other food production line, etc.





Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 0.5kw
Dimension 2250*560*1380mm
Weight 180KG



P307 Horizontal Small Protein Bar Extruder Machine 0





P307 Horizontal Small Protein Bar Extruder Machine 1

P307 Horizontal Small Protein Bar Extruder Machine 2

P307 Horizontal Small Protein Bar Extruder Machine 3



Bar produced by P307 Protein bar extruder



P307 Horizontal Small Protein Bar Extruder Machine 4

P307 Horizontal Small Protein Bar Extruder Machine 5

Application:



P307 Horizontal protein bar extruder video:





Protein bar extrusion machine with powder coating machine video:





Protein bar extruder machine with turning conveyor and packing line video:





Chocolate coated protein bar production line video:





Related Product:



P160 Automatic encrusting machine

P160 Automatic encrusting machine is our multifunctional equipment to make center filled products, such as cookies, mooncakes, stuffed pies, filled balls, filled date bars, and so on. The encrusting machine can make round, ball, cone, bar, strip shapes, etc. So the encrusting machine can also make bar products, It can not make hard dough, but it is enough for normal products making.

P307 Horizontal Small Protein Bar Extruder Machine 6



Optional devices:



1. Chocolate enrober

Chocolate enrober is used for coat chocolate around food or on bottom of food, the commercial chocolate enrober machine is small sized and easy operation. Customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine. The chocolate enrober has different capacities for customer to choose.

P307 Horizontal Small Protein Bar Extruder Machine 7

2. Planetary mixer

The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.

P307 Horizontal Small Protein Bar Extruder Machine 8



3. Flow wrapping machine

Automatic flow packing machine is used for food packing, featuring by steady working and excellent quality. It can pack variety of different materials and be very multifunctional to pack different kinds of food, such as bars, cookies, biscuits, cakes, breads, etc.

P307 Horizontal Small Protein Bar Extruder Machine 9
