| Place of Origin | CHINA |
| Brand Name | iPAPA |
| Certification | CE |
| Model Number | PE15 |

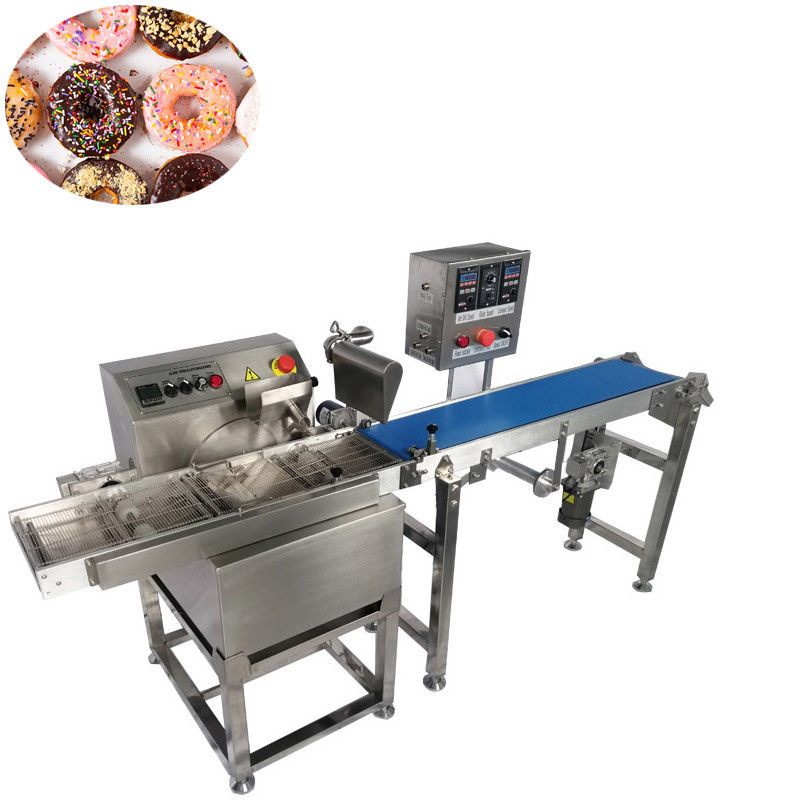

Automatic chocolate coating machine for dates/wafer
Description:
The automatic chocolate coating machine for dates/wafer is the small chocolate enrobing equipment that we desigend for small scale chocolate industries,which make the customers can use the small chocolate coater to make the end chocolate coated product with consistent weight,uniform thickness and perfect finish even if they have very limited opreration space and small chocolate production demand.
The automatic chocolate coating machine consists of small chocolate enrober and 3P Chocolate cooling tunnel or cooling fan conveyor belt.The 3P cooling tunnel can do the fast cooling for the chocolate,the temperature can be up to -18 degree and the length of the cooling tunnel is 3.2m,once the food coated,it will flow into the cooling tunnel and can get cold well so that the customer can direclty do the packing.The cooling fan conveyor is usually used for the food that don't need fast cooling.
The commercial chocolate enrobing machine has 4 models with different capacity for customer to choose: PE8, PE15, PE30 and PE60. For example,the PE15 Commercial chocolate enrobing machine tank capacity is 15kg chocolate per batch.The capacty for PE60 is 60kg one batch,customer can choose different model according to their daily chocolate consumption.
The chocolate enrobing machine is most often used to coordinate with other food making machines in food production:
1. The chocolate coating machine is used after the cereal bar making machine to coat chocolate on snack bars;
2. The chocolate coating machine is used after the automatic encrusting machine to coat chocolate on cookies and stuffed pastries;
3. The chocolate coating machine is used after the protein bar making machine to coat chocolate on protien bars, cereal bars and energy bars.
4. The chocolate coating machine is also used after the protein energy ball making machine to coat chocolate on protein balls and energy balls.
PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:
| Model | PE8 | PE15 | PE30 | PE60 |
|---|---|---|---|---|
| Capacity | 15KG chocolate/batch | 8KG chocolate/batch | 25KG chocolate/batch | 5KG chocolate/batch |
| Belt speed | 2meter/min | 2meter/min | 2meter/min | 2meter/min |
| Enrober mesh belt width | 180mm | 180mm | 180mm | 300mm |
| Tunnel PU belt widh | 200mm | 200mm | 200mm | 400mm |
| Heating method | Electric heating | Electric heating | Electric heating | Electric heating |
| Voltage | 220V, single phase | 220V, single phase | 220V, single phase | 220V, single phase |
| Power | 1.8kw | 2kw | 2.8kw | 3.1kw |
| Dimension | 2000x5701350 | 2000x640x1350 | 3200x710x1350 | 3400x910x1400 |
| Weight | 80KG | 100kg | 190kg | 240kg |
PE30 Commercial chocolate Dripping Machine Enrober demo video:
Food coated by PE15 Chocolate enrobing machine:
Application:
protien bar extruder with PE15 small chocolate enrobing line video:
PE15 Small chocolate enrobing line for energy ball video:
Optional devices:
Automatic protein bar extruding machine
Description:
The complete protein bar extruding line incudes mixer, encrusting machine, date bar cutter, tray arranger, conveyor, baking oven, flow wrapping machine. Optional equipment can be added to the date bar production line, such as maamoul stamping machine for making maamouls and mooncakes, ball roller machine for making energy balls and date balls, wire cut machine for making wire cut cookies and panda cookies,etc.
Specifications:
| Model | P160 |
|---|---|
| Capacity | 60 pcs/min |
| Application | Stuffed date bar, date cookies, date roll, fig newtons, date bites, etc. |
| Product weight | 10-250g |
| Casing and filling proportion | 1:9-10:0 |
| Voltage | 220V, single phase |
| Power | 4.5kw |
| Dimension | 4000*1650*1560mm |
| Weight | 650KG |
