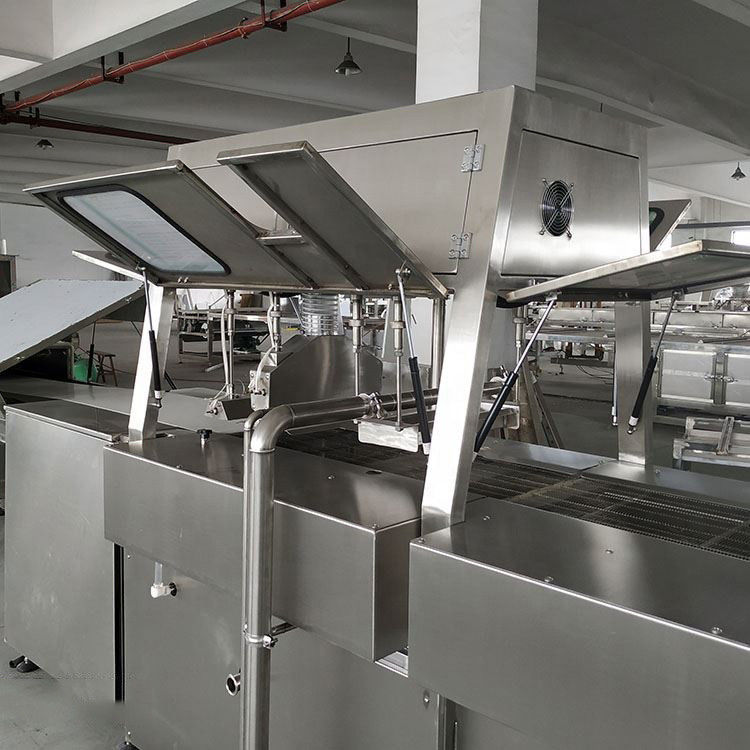

Industrial 400mm Belt Width Chocolate Enrobing Machine For Wafers / Wafer Rolls

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 25-35 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 2sets/month
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: 400

Detail Information

Belt Width: 400mm Belt Speed: 1-10meter/min
Tunnel Length: 10meter Tunnel Temperature: 2-10 ℃
Refrigerator: 2sets Power: 12.1kw
Weight: 2000KG Voltage: 380V, Three Phase
Dimention: 14200x950x1800mm Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Industrial Wafers Chocolate Enrobing Machine

,

Chocolate Enrobing Machine 400mm Belt

,

Wafer Rolls Commercial Chocolate Enrober

Product Description

Industrial 400mm belt width chocolate enrobing machine for wafers/Wafer rolls



Description:



Industrial 400mm belt width chocolate enrobing machine for wafers/Wafer rolls is best choice for the daily chocolate consumption on caoting within 400-600kg,they are mainly designed for these medium level production.



The 400mm chocolate enrobing machine can attach with various length of cooling tunnel to meet the industrial scale chocolate coating production.The 10mm cooling tunnel with 1-2 sets of copeland refrigerating system is the most selected options.



The 400mm industrial enrobing machine can also  work with our Automatic zigzag chocolate decorator machine,which can be used to form the chocolate zigzag or chocolate glazing on the surface of food, the chocolate decorator can do different forms of zigzag by twisting the nozzles and adjusting the distance. The chocolate decorating machine uses a special chocolate delivery pump,which is rotor pump with steady chocolate-supply, It can decorate all kinds of zigzags through the eccentric gear to adjust the distance. The pipeline adopts double-layer thermal insulation to ensure smooth chocolate mass. The chocolate decorating machine is small size, easy to move and flexible to match different kinds of food production line.



The industrial chocolate coating machine can create one or more than two different “waterfall” of chocolate liquid for two or more than two different coating,the cookies and other food will enter the chocolate coater machine and will be transferred onto the wire mesh converyor and pass under the Waterfall of the chocolate,the excess chocolate paste from the chocolate waterfall falls through the wire mesh conveyor into a small movable jacketed chocolate tank and will be recirculated.For the pure chocolate(dark chocolate without sugar) can also be re-designed for pumping back to the chocolate holding tank and then re-tempered for next batch of enrobing or coating.



The industrial chocolate coating machine normally need continuous production together with the food making machine, this requires continuous chocolate liquid supplying to the tank of chocolate coating machine, we have complete sets of chocolate preparing equipments:chocolate holding tank, chocolate tempering machine and chocolate pumps. The chocolate tempering machine is the necessary equipment for making pure chocolate, Customer can choose the chocolate melting tank only if be just buy the chocolate blocks as raw materials for melting.The chocolate holding tank and chocolate pumps are essential equipment for the chocolate enrobing line,the chocolate holding tank is used to store the chocolate and provide the continuous chocolate feeding and the chocolate pump is used to deliver the chocolate paste from the chocolate holding tank to the the large chocolate coating line.



1.500L Chocolate melting tank

For continuous chocolate liquid feeding, we customize customer a small size 500L chocolate melting tank, the 500L chocolate melting tank has heating pipes inside which are used to heat and melt chocolate blocks into liquid.

Industrial 400mm Belt Width Chocolate Enrobing Machine For Wafers / Wafer Rolls 0





2.Chocolate pump

The 5 M3 chocolate feeding pump is used to connect the chocolate enrober machine and the chocolate melting tank. Chocolate liquid will be transferred from the melting tank to the enrober tank by accurate ration. The jacketed connecting pipes are used to connect all the machines to transfer chocolate liquids.

Industrial 400mm Belt Width Chocolate Enrobing Machine For Wafers / Wafer Rolls 1

Besides the industrial chocolate enrobing machines, we also have commercial small chocolate enrobing machines for customer to choose, this depends on what kind conditions customer has, such as factory layout, factory size, budget, application field, etc.



Different models of chocolate enrobing line specifications:



Model 400 600 900 1200
Belt width 400mm 600mm 900mm 1200mm
Belt speed 1-10meter/min 1-10meter/min 1-10meter/min 1-10meter/min
Cooling tunnel length 10meter 14meter 20meter 24meter
Refrigerator unit 2 3 4 5
Refrigerator DANFOSS DANFOSS DANFOSS DANFOSS
PLC/Touch screen

Hpmont

Hpmont Hpmont Hpmont
Voltage 380V, Three phase 380V, Three phase 380V, Three phase 380V, Three phase
Power 12.1kw 20.8kw 23.8kw 27.8kw
Dimension 14200x950x1800mm 18200x1150x1800 24200x1450x1800 28250x1750x1800
Weight 2000KG 2450KG 3400KG 4100KG





Product Features

The industrial chocolate enrobing machine is a special automatic equipment for production colored chocolate products. The enrober machine has the functions of full coating, bottom coating and partial coating, and integrates chocolate enrobing and cooling.



Industrial 400mm Belt Width Chocolate Enrobing Machine For Wafers / Wafer Rolls 2

Application of Industrial Chocolate Enrober Machine
It can dip chocolate paste on the surface of a variety of foods, such as candy, cake, wafer biscuits, cookies, egg rolls,moon cakes and fruit jerky, form a variety of unique taste of chocolate products. The chocolate coating machine can realize enrobing on the surface of food or enrobing on the bottom of food.



Advantages of Industrial Chocolate coating machine
1.Equipped with cooling tunnel, 3P refrigeration units have good refrigeration effect.
2.The chocolate enrober can be designed into two double net coatings, one side can be painted with white chocolate and the other is black chocolate.
3.The conveyor belt is equipped with automatic correction device, the machine uses touch screen, PLC control.
4.The length of chocolate enrobing equipment and cooling tunnel can be adjusted according to customer requirements.



400 Chocolate enrobing production line demo video:





400 Chocolate enrobing line in customer factory:





Industrial chocolate enrobing production line in production:



Industrial 400mm Belt Width Chocolate Enrobing Machine For Wafers / Wafer Rolls 3

Industrial 400mm Belt Width Chocolate Enrobing Machine For Wafers / Wafer Rolls 4



Food coated by chocolate enrobing machine



Industrial 400mm Belt Width Chocolate Enrobing Machine For Wafers / Wafer Rolls 5



Application:



Industrial Chocolate enrobing line for ball products video:





Chocolate coating line for cake products video:





Chocolate coating line for protein bar products video:





Chocolate enrobing line for biscuit stick products video:





Industrial Chocolate enrobing machine for dounut product video:





Chocolate enrobing line for strawberries video:





Chocolate enrobing line with granules sprinkling machine video:





Chocolate enrobing line with zigzag chocolate decorating machine video:
