Automatic zigzag chocolate decorator machine

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 20-25 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 2sets/month
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: 400MM

Detail Information

Belt Width: 400mm Power: 4kw
Pump Power: 1.5kw Electric Heating Power: 2.5kw
Voltage: 380V, Three Phase Dimention: 1550x700x1600mm
Weight: 50KG Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Chocolate Coated Food,fruits, Sweets, Etc.
High Light:

Automatic Chocolate Enrober Machine

,

zigzag Chocolate Enrober Machine

,

decorator chocolate coating machine

Product Description

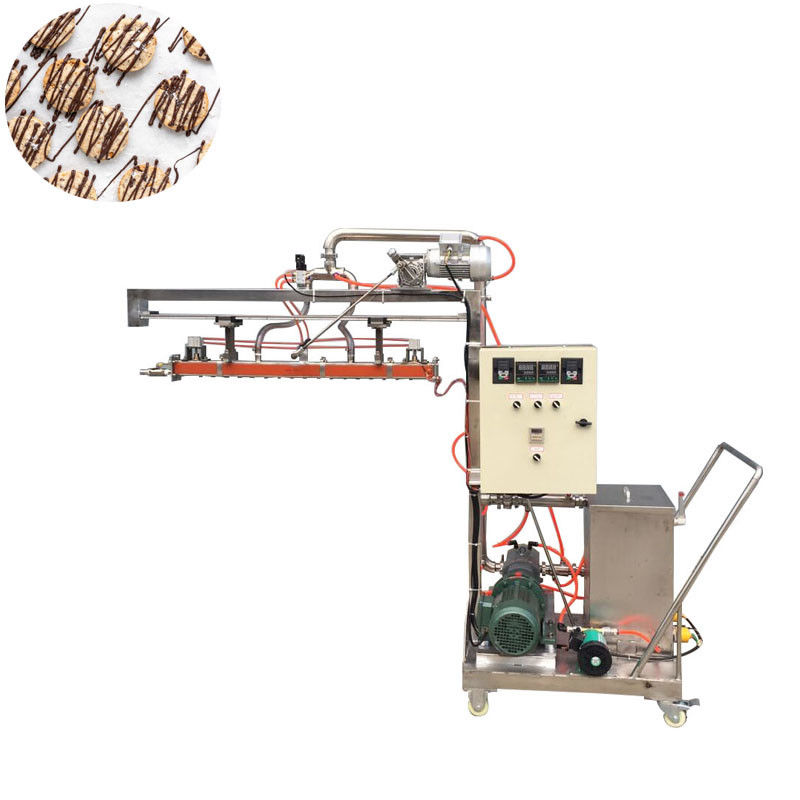

Automatic zigzag chocolate decorator machine



Description:

Automatic zigzag chocolate decorator machine is one of the essential equipment in the chocolate production line. The chocolate decorator machine is used to chocolate zigzag or chocolate glazing on the surface of food, the chocolate decorator can do different forms of zigzag by twisting the nozzles and adjusting the distance. The chocolate decorating machine uses a special made chocolate delivery pump which is rotor pump with steady chocolate-supply, It can decorate all kinds of zigzags through the eccentric gear to adjust the distance. The pipeline adopts double-layer thermal insulation to ensure smooth chocolate mass. The chocolate decorating machine is small size, easy to move and flexible to match different kinds of food production line.



The chocolate zigzag machine normally need to work with cooling tunnel to cool down the food after glazing, or It can be added after the chocolate enrober machine and before chocolate enrober cooling tunnel, so the chocolate enrober and the chocolate zigzag machine can share same cooling tunnel.



The zigzag chocolate glazing machine can be used for different kinds of food, such as cookies, biscuits, cakes, breads, snack bars, confectionery, sweets, fruits, donuts, etc.



Specifications:



Model 400
Belt width 400mm
Voltage 380V, Three phase
Total power 4kw
Pump power 1.5kw
Electric power 2.5kw
Dimension 1550x700x1600mm
Weight 50KG



Automatic zigzag chocolate decorator machine 0

Automatic zigzag chocolate decorator machine 1

Zigzag chocolate decorator demo video:



Application:



Food produced by chocolate decorator:

Automatic zigzag chocolate decorator machine 2



Chocolate decorator video:







Welcome to contact us if you are interested in our chocolate glazing machine, as the top chocolate decorator manufacturer and chocolate glazing machine supplier in China, we are the expert for you to choose !
