Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine
  • Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine
  • Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine
  • Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine

Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number PE30
Product Details
Capacity:
30 KG Chocolate/batch
Belt Speed:
2meter/min
Tunnel Belt Width:
200mm
Heating Method:
Electric Heating
Power:
2.8kw
Weight:
500KG
Voltage:
220V,Single Phase
Dimention:
3200x710x1350mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Covered Nuts Chocolate Enrober Machine

,

SS304 Chocolate Tempering Machine

,

2m/Min Belt Chocolate Tempering Machine

Product Description

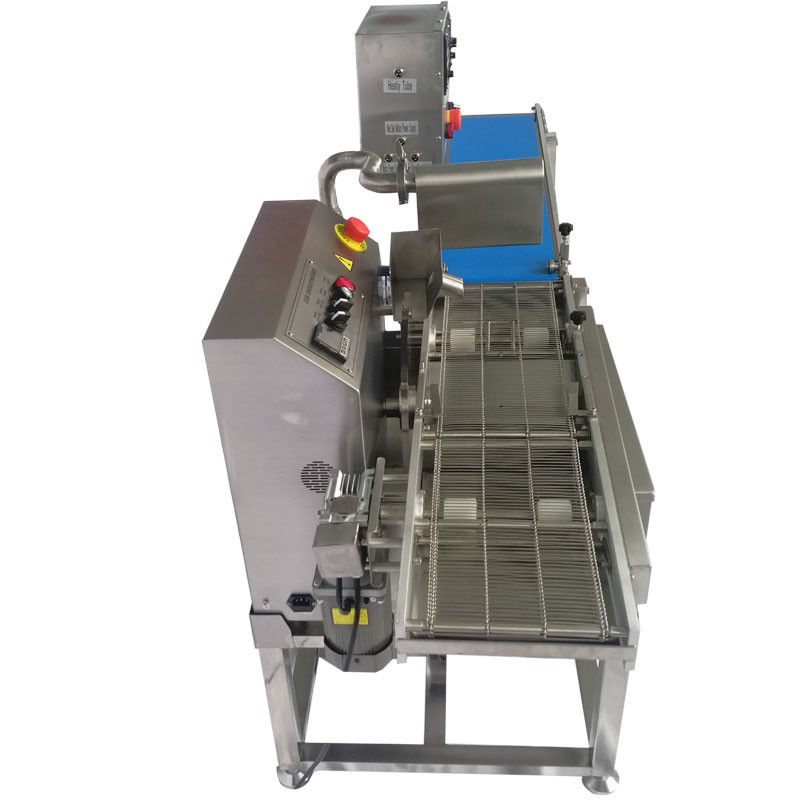

Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine



Description:



The Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine is the machine specially designed for small scale chocolate industries,there are many bakery shop or confection who need make chocolated coated food,but they have very limited operation space and small chocolate production demand,so they need a small chocolate enrober,which can make the customers can use it to make the end chocolate coated product with consistent weight,uniform thickness and perfect finish.



The Chocolate enrobing machine is used for coating chocolate around food or on bottom of food, such as cereal bars, energy bars, protein bars, candy bars, rice bites, wafers and wafer stick, birthday cakes, cakes, breads, rolls, pies, muffins, snacks, candies, confectionery, maamoul and mooncakes, cookies, biscuits, crackers, cake ball, date ball and chocolate truffles,etc,the commercial chocolate enrober machine is small sized and easy operation.Customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine.



The commercial chocolate enrobing machine has 4 models with different capacity for customer to choose: PE8, PE15, PE30 and PE60. For example,the PE15 Commercial chocolate enrobing machine tank capacity is 15kg chocolate per batch.The capacty for PE60 is 60kg one batch,customer can choose different model according to their daily chocolate consumption.



The chocolate enrobing machine is most often used to coordinate with other food making machines in food production:

1. The chocolate coating machine is used after the cereal bar making machine to coat chocolate on snack bars;

2. The chocolate coating machine is used after the automatic encrusting machine to coat chocolate on cookies and stuffed pastries;

3. The chocolate coating machine is used after the protein bar making machine to coat chocolate on protien bars, cereal bars and energy bars.

4. The chocolate coating machine is also used after the protein energy ball making machine to coat chocolate on protein balls and energy balls.



PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg




Type 1: Chocolate enrobing machine + 3.2M Cooling tunnel

Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine 0

Type 2: Chocolate enrobing machine + 2M Fan cooling conveyor

Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine 1




Features:



1.temperature adjustment
2.melting and storage function
3.with scraper, mixer and stir device
4.304 stainless steel food grade material
5.digital temperature control system
6.with water interlayer heating equipment, can be used for external heating and heat preservation



Application:



Food coated by PE30 Chocolate enrobing machine:



Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine 2

Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine 3





protien bar machine working with PE30 small chocolate enrobing line video:







PE30 Small chocolate enrobing line for energy ball video:





About Us



Shanghai Papa Industrial Co., LTD has been the leading expert for the chocolate machinery in China, especially the chocolate enrobing machine, we have both industrial chocolate enrobing machine and commercial chocolate enrobing machine available to meet different customer's needs. We have related commercial cooling tunnel as well customized for our customers with little space required and energy saving. Our chocolate enrober machines are approved with CE certificate and are hotly exported to the world, especially in USA and Europe.



Optional devices:



1.P307 protein bar machine



Our P307 Protein bar machine maker is new designed extruder machine specially made for making many types of bars such as protien bar, fruit bar, energy bar, coconut bar, chocolate bar and so on.

Donuts Toast Bread Cake and Biscuit Chocolate Enrobing Machine 4
