Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel
  • Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel
  • Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel
  • Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel
  • Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel

Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number PE15
Product Details
Capacity:
15KG Chocolate/batch
Belt Speed:
2meter/min
Enrober Belt Width:
180mm
Tunnel Belt Width:
200mm
Heating Method:
Electric Heating
Power:
5.5kw
Weight:
500KG
Voltage:
220V,Single Phase
Dimention:
4400*650*1320 Mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
Fumigation-free wooden box; packed size: 700*680*690mm, 1100*700*660mm, 3350*860*1180mm
Delivery Time
7-14 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
1set/week
Product Description

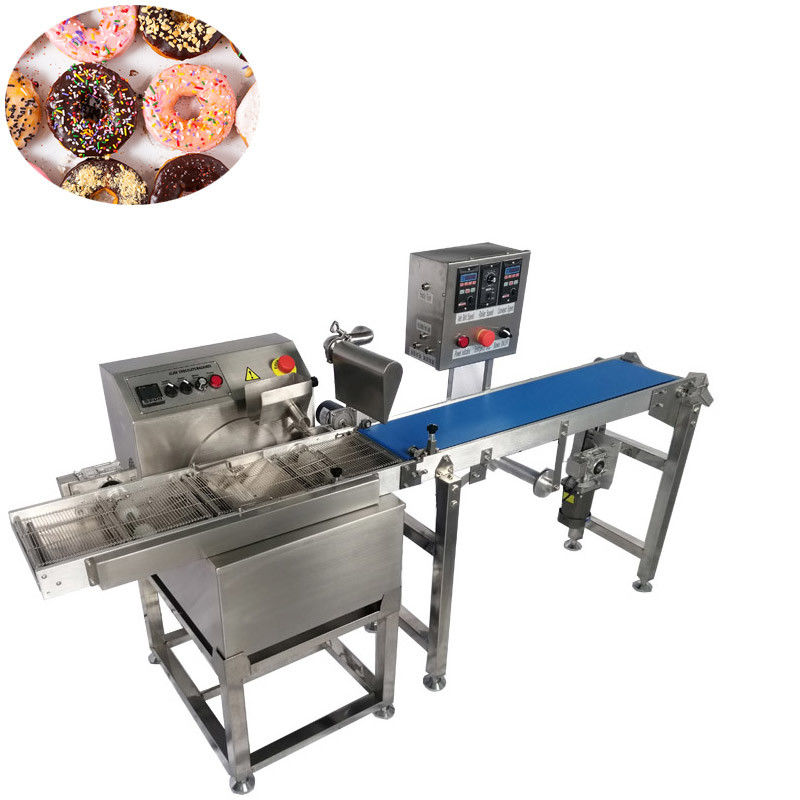

Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel



Description:



The chocolate enrobing equipment is enrobing machine designed to fit on the chocolate tempering machine when installed on the optional cart with casters. It allows enrobing chocolate centers, cookies, ganaches or whatever your want with chocolate. The product pass on a wire mesh belt which is 180 mm wide and are enrobed by a double curtain waterfall system. The chocolate enrobing machine coats top and bottom or top only. For bottom only, a bottomer is available on special request. The control box allows regulating the speed of the belts.



Application of Industrial Chocolate Enrobing Machine:



It can coat various food surfaces with chocolate sauce, such as cereal bars, energy bars, protein bars, candy bars, rice cakes, wafers and wafer sticks, birthday cakes, cakes, bread, wraps, pies, muffins, snacks, candies, pastries, mooncakes, biscuits, crackers, cake balls, date balls and chocolate truffles, mochi, dates, strawberries and other fruits. The chocolate coating machine can also coat the surface or bottom of food products.



PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg




Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel 0


Food coated by PE15 Chocolate enrobing machine:

Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel 1



PE15 Commercial tunnel cooling chocolate enrobing machine demo video:



Papa Factory Automatic Mini Chocolate Covering Machine with cooling tunnel 2













Application:



protien bar extruder with PE15 small chocolate enrobing machine video:







PE15 Small chocolate coating machine for fruit bar video:
