Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine

Place of Origin	CHINA
Brand Name	iPAPA
Certification	CE
Model Number	400

Product Details

Belt Width:

400mm

Belt Speed:

1-10meter/min

Tunnel Length:

10meter

Tunnel Temperature:

2-10 ℃

Refrigerator:

2sets

Power:

12.1kw

Weight:

2000KG

Voltage:

380V, Three Phase

Dimention:

14200x950x1800mm

Material:

Stainless Steel 304

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Condition:

New

Application:

Snacks, Fruits, Cakes, Breads,cookies, Etc.

Highlight:

Chocolate Coating Pocky Biscuit Machine

,

Automatic Pocky Biscuit Machine

,

Finger Biscuit Chocolate Coating Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiate

Packaging Details

Fumigation-free wooden box

Delivery Time

25-35 working days

Payment Terms

L/C, T/T, Western Union, MoneyGram

Supply Ability

2sets/month

Product Description

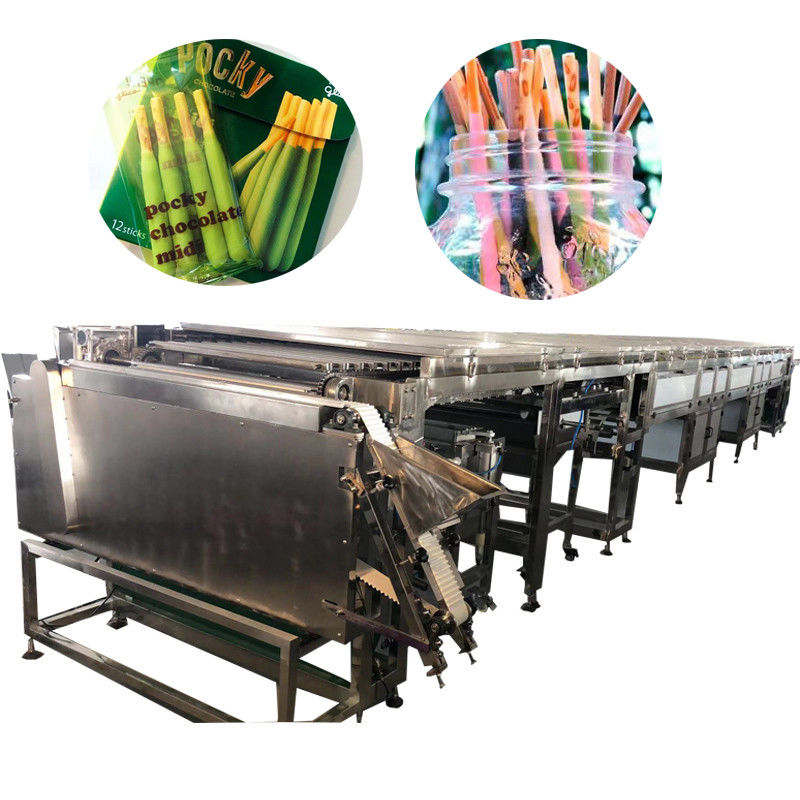

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine

Description:

This biscuit bar chocolate coating machine includes a chocolate dripping machine and a cooling tunnel, which is specially designed for coating chocolate on biscuit bars. The machine is made of all stainless steel and is used to make high-quality pure chocolate or compound chocolate coating on biscuits.

This Pocky bar coating machine adopts electric, gas, and photoelectric tracking control, with a high degree of automation, uniform dipping liquid level, smooth product appearance, and uniform coating surface thickness. After the first coating, sprinkle with granular material, then cool slightly, apply the second coating, and then enter the cooling tunnel.

The Pocky bar coating machine starts with manual feeding of baked biscuit bars, which are manually put into the biscuit hopper, and the biscuit bars automatically fall into the mold. The pusher pushes the biscuit bars horizontally into the clamp hole, and the clamp holds the biscuit bars tightly; driven by the chain, the biscuit bars move downward; then the clamp moves forward, and the chocolate cream groove moves up and down to wrap the chocolate on the biscuit bars, and vibrates slightly to remove excess chocolate cream; after chocolate wrapping, the clamp moves forward to the cooling tunnel; after cooling, the biscuit bars can be packaged.

Different models of chocolate enrobing line specifications:

Model	400	600	900	1200
Belt width	400mm	600mm	900mm	1200mm
Belt speed	1-10meter/min	1-10meter/min	1-10meter/min	1-10meter/min
Cooling tunnel length	10meter	14meter	20meter	24meter
Refrigerator unit	2	3	4	5
Refrigerator	DANFOSS	DANFOSS	DANFOSS	DANFOSS
PLC/Touch screen	Hpmont	Hpmont	Hpmont	Hpmont
Voltage	380V, Three phase	380V, Three phase	380V, Three phase	380V, Three phase
Power	12.1kw	20.8kw	23.8kw	27.8kw
Dimension	14200x950x1800mm	18200x1150x1800	24200x1450x1800	28250x1750x1800
Weight	2000KG	2450KG	3400KG	4100KG

Product Features

Chocolate coating machine for finger biscuits

Function: This equipment is specially designed for chocolate coating of finger biscuits. The whole machine is made of stainless steel. It is used to make high-quality pure chocolate or compound chocolate biscuit coating.

Advantages:

1. This chocolate machine has the advantages of simple operation, convenient maintenance and low one-time investment.

2. It adopts electric heating system with fast heating and cooling speed.

3. The cylinder and base are connected by thread, which is convenient for maintenance and repair.

4. It is especially suitable for the technical requirements of chocolate and biscuit factories.

5. The outer cylinder is made of stainless steel.

Made of SUS304 Stainless Steel (Contact with the chocolate)

The Mesh Unit can be pulled out for easy cleaning

Enrobing System ,blower system (adjustable blower volume),

vibrating system ,de-tailor system

All surface coating/bottom coating

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine 0

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine 1

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine 2

Application of Industrial Pocky Sticks Chocolate Enrober Machine

This pocky sticks coating machine also can cover nuts /sweets on food surface or do double chocolate coating as well . we have nut sprinkle function for your choice .

This production machine is specially developed for stick biscuit dip coating chocolate, which reducing the manual link greatly, and highly improving the product quality, safety and quality.

The Full Automatic Pocky Sticks Finger Biscuit Chocolate Dipping and Coating Machine adopts electric, gas and photoelectric tracking control, with high degree of automation, uniform dip coating liquid level, smooth product appearance and uniform coating surface thickness. After the first coating, the granule material is sprinkled, and then it is slightly cooled, and the second coating is carried out, then it enters the cooling tunnel.

Advantages of Industrial Chocolate coating machine
1.Equipped with cooling tunnel, 3P refrigeration units have good refrigeration effect.
2.The chocolate enrober can be designed into two double net coatings, one side can be painted with white chocolate and the other is black chocolate.
3.The conveyor belt is equipped with automatic correction device, the machine uses touch screen, PLC control.
4.The length of chocolate enrobing equipment and cooling tunnel can be adjusted according to customer requirements.

How to achieve continuous chocolate liquid feeding?

500L Chocolate melting tank

For continuous chocolate liquid feeding, we customize customer a small size 500L chocolate melting tank, the 500L chocolate melting tank has heating pipes inside which are used to heat and melt chocolate blocks into liquid.

Chocolate pump

The 5 M3 chocolate feeding pump is used to connect the chocolate enrober machine and the chocolate melting tank. Chocolate liquid will be transferred from the melting tank to the enrober tank by accurate ration. The jacketed connecting pipes are used to connect all the machines to transfer chocolate liquids.

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine 4

400 Chocolate enrobing machine demo video:

400 Chocolate enrobing line in customer factory:

Industrial chocolate enrobing production line in production:

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine 5

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine 6

Food coated by chocolate enrobing machine:

Automatic Pocky Biscuit Machine Finger Biscuit Chocolate Coating Machine 7

Application:

Industrial Chocolate enrobing line for ball products video:

Chocolate coating line for cake products video:

Chocolate coating line for protein bar products video:

Industrial Chocolate enrobing machine for dounut product video:

Chocolate enrobing line for strawberries video:

Chocolate enrobing line with granules sprinkling machine video:

Chocolate enrobing line with zigzag chocolate decorating machine video:
