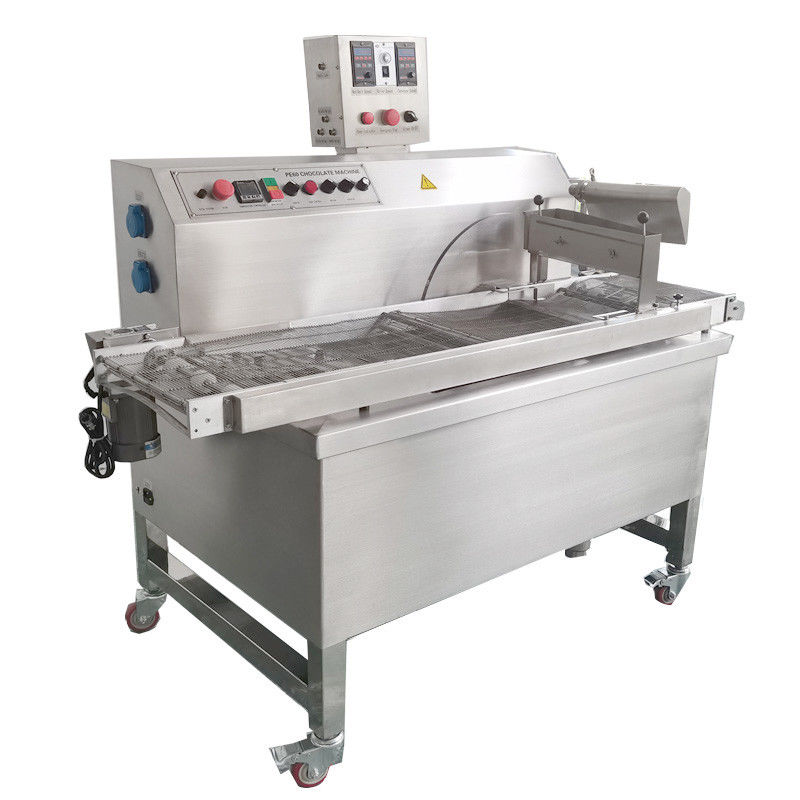

60kg Chocolate Enrobing Coating Line With Small Footprint Size

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box; packed size: 700*680*690mm, 1100*700*660mm, 3350*860*1180mm Delivery Time : 7-14 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: PE60

Detail Information

Capacity: 60KG Chocolate/batch Belt Speed: 2meter/min
Enrober Belt Width: 300mm Tunnel Belt Width: 400mm
Heating Method: Electric Heating Power: 4.6kw
Weight: 550KG Voltage: 220V,Single Phase
Dimention: 6400*71*1350 Mm Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Chocolate Coating Line 2meter/Min

,

Stainless Steel Chocolate Enrobing Line

,

Electric Heating Chocolate Coating Line

Product Description

60kg Chocolate enrobing Coating Line with small footprint size



Description:



The 60kg Chocolate enrobing Coating Line with small footprint size is designed for small scale chocolate industries,the width of the mesh conveyor is 180mm/300m and you could put 1 or 2 product per row,it's the best option for small scale chocolate enrobing machine if you have limited operation space and small production demand.The small chocolate enrober can be widely used in chocolate coated products, such as protein bar, energy bar, cereal bar, granola bars, energy ball, date ball, truffles, cookies, biscuits, crackers, pies, cakes, breads, wafer sticks, egg rolls, fruits, nuts, candy bars, donuts and so on.



The commercial chocolate enrober machine has 4 models with different melting tank capacity for customer to choose: PE8, PE15, PE30 and PE60. The PE15 Commercial chocolate enrobing machine tank capacity is 15kg chocolate per batch and 60kg per batch for PE60 chocolate enrober.There are two options for chocolate coating machine: 1. Chocolate enrobing machine with cooling tunnel. 2. Chocolate coating machine with cooling fan conveyor. The size of the cooling tunnel is 3.2m long,which is much bigger compared to the fan cooling conveyor and can cool the chocolate liquid fast,but the choclate enrobing machine with cooling fan conveyor is mostly used in shops, kitchen or at home. The chocolate enrobing machine with cooling tunnel is mainly designed for industrial purpose.



PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg



60kg Chocolate Enrobing Coating Line With Small Footprint Size 0

60kg Chocolate Enrobing Coating Line With Small Footprint Size 1



PE30 Commercial tunnel cooling chocolate enrobing machine demo video:



Food coated by PE15 Chocolate enrobing machine



60kg Chocolate Enrobing Coating Line With Small Footprint Size 2



Application:



protien bar extruder with PE15 small chocolate enrobing line video:





PE15 Small chocolate enrobing line for energy ball video:





Optional devices:



Automatic protein bar extruding machine

Description:



The complete protein bar extruding line incudes mixer, encrusting machine, date bar cutter, tray arranger, conveyor, baking oven, flow wrapping machine. Optional equipment can be added to the date bar production line, such as maamoul stamping machine for making maamouls and mooncakes, ball roller machine for making energy balls and date balls, wire cut machine for making wire cut cookies and panda cookies,etc.



Specifications:

Model P160
Capacity 60 pcs/min
Application Stuffed date bar, date cookies, date roll, fig newtons, date bites, etc.
Product weight 10-250g
Casing and filling proportion 1:9-10:0
Voltage 220V, single phase
Power 4.5kw
Dimension 4000*1650*1560mm
Weight 650KG



60kg Chocolate Enrobing Coating Line With Small Footprint Size 3
