Automatic Chocolate Dipped Cookies Coating Machine
  • Automatic Chocolate Dipped Cookies Coating Machine
  • Automatic Chocolate Dipped Cookies Coating Machine
  • Automatic Chocolate Dipped Cookies Coating Machine

Automatic Chocolate Dipped Cookies Coating Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number PE15
Product Details
Capacity:
15KG Chocolate/batch
Belt Speed:
2meter/min
Enrober Belt Width:
180mm
Tunnel Belt Width:
200mm
Heating Method:
Electric Heating
Power:
4.6kw
Weight:
550KG
Voltage:
220V,Single Phase
Dimention:
6400*71*1350 Mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Cookies Chocolate Coating Machine

,

Automatic Chocolate Coating Machine

,

Cookies Dipping Chocolate Machine SS304

Product Description

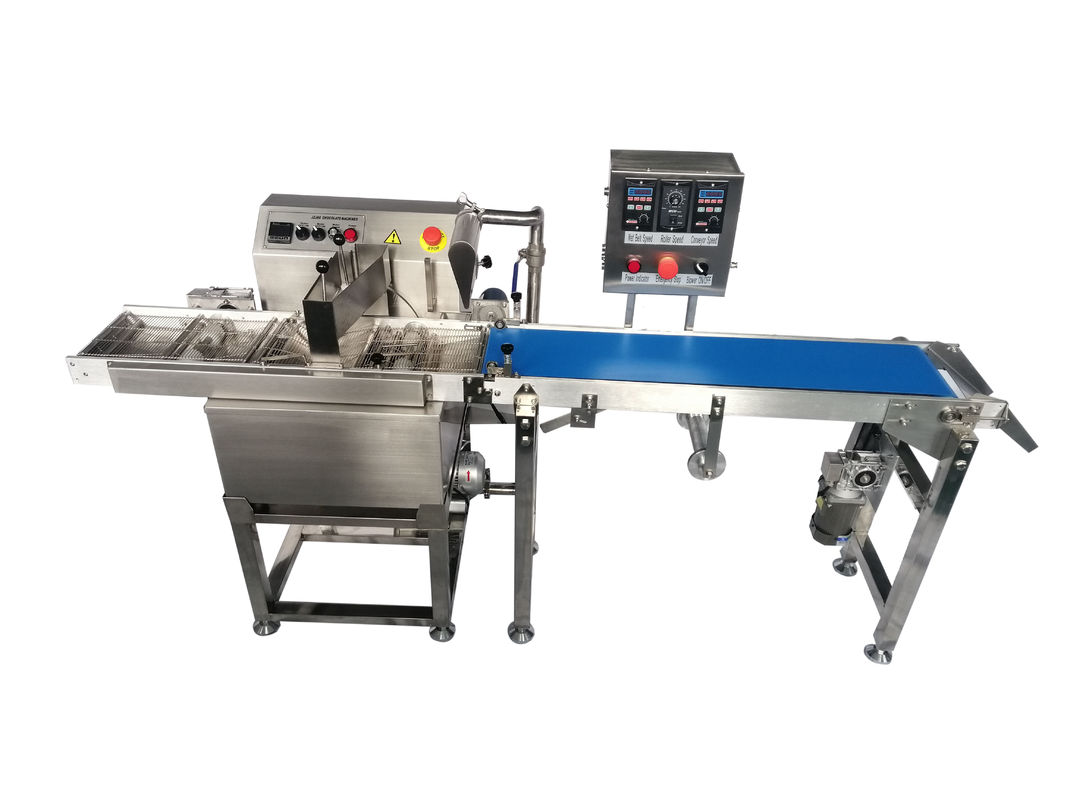

Automatic chocolate Dipped Cookies coating machine



Description:



The automatic chocolate Dipped Cookies coating machine is the small chocolate enrobing equipment that we desigend for small scale chocolate industries,which make the customers can use the small chocolate enrober  to make the end chocolate coated product,such as chocolate dipped cookies with consistent weight,uniform thickness and perfect finish even if they have very limited opreration space and small chocolate production demand.



The small chocolate coating machine for chocolate dipped cookies consists of small chocolate enrober and 3P Chocolate cooling tunnel or cooling fan conveyor belt.The 3P cooling tunnel can do the fast cooling for the chocolate,the temperature can be up to -18 degree and the length of the cooling tunnel is 3.2m,once the food coated,it will flow into the cooling tunnel and can get cold well so that the customer can direclty do the packing.The cooling fan conveyor is usually used for the food that don't need fast cooling.



The commercial chocolate enrobing machine has 4 models with different capacity for customer to choose: PE8, PE15, PE30 and PE60. For example,the PE15 Commercial chocolate enrobing machine tank capacity is 15kg chocolate per batch.The capacty for PE60 is 60kg one batch,customer can choose different model according to their daily chocolate consumption.



PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg





Automatic Chocolate Dipped Cookies Coating Machine 0



PE30 Commercial chocolate Dripping Machine Enrober demo video:





Food coated by PE15 Chocolate enrobing machine



Automatic Chocolate Dipped Cookies Coating Machine 1



Application:



protien bar extruder with PE15 small chocolate enrobing line video:





PE15 Small chocolate enrobing line for energy ball video:





PE60 Small chocolate enrobing line for protein bar video:
