Coconut Bar Chocolate Coating Machine / Chocolate Enrober Machine For Cakes

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box; packed size: 700*680*690mm, 1100*700*660mm, 3350*860*1180mm Delivery Time : 7-14 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: PE30

Detail Information

Capacity: 30 KG Chocolate/batch Belt Speed: 2meter/min
Tunnel Belt Width: 200mm Heating Method: Electric Heating
Power: 2.8kw Weight: 500KG
Voltage: 220V,Single Phase Dimention: 3200x710x1350mm
Material: Stainless Steel 304 Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
Application: Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Cakes Chocolate Enrober Machine

,

CCoconut Bar Chocolate Coating Machine

,

Chocolate Coating Machine Small Scale

Product Description

Coconut bar chocolate coating machine/Chocolate enrober machine for cakes



Description:



The Coconut bar chocolate coating machine/Chocolate enrober machine for cakes is we specially designed for small scale chocolate industries,the width of the mesh conveyor is 180mm/300m and you could put 1 or 2 product per row,such as strawberry,dates,energy bar,cake,wafer,biscuit,cookies,etc,it's very suitable for the customers who need enrobing chocoate machine,but with very small chocolate production demand and very limited operation space.The small chocolate enrober offer a precise and consistent process that ensures an end product with a consistent weight, uniform thickness and a perfect finish.



The commercial chocolate enrober machine has 4 models with different melting tank capacity for customer to choose: PE8, PE15, PE30 and PE60. The PE15 Commercial chocolate enrobing machine tank capacity is 15kg chocolate per batch and 60kg per batch for PE60 chocolate enrober.There are two options for chocolate coating machine: 1. Chocolate enrobing machine with cooling tunnel. 2. Chocolate coating machine with cooling fan conveyor. The size of the cooling tunnel is 3.2m long,which is much bigger compared to the fan cooling conveyor and can cool the chocolate liquid fast,but the choclate enrobing machine with cooling fan conveyor is mostly used in shops, kitchen or at home. The chocolate enrobing machine with cooling tunnel is mainly designed for industrial purpose.



For continuous chocolate feeding in the chocolate enrobing line, chocolate melting tank and chocolate pump can be added in addition to the small chocolate enrobing machine as the optional equipment to improve the enrobing chocolate efficiency. The chocolate melting tank is used to melt the chocolate into liquid and for warm keeping,which save much time on chocolate melting, the chocolate pump is used for chocolate liquid transferring to the chocolate enrobing machine tank.





PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg

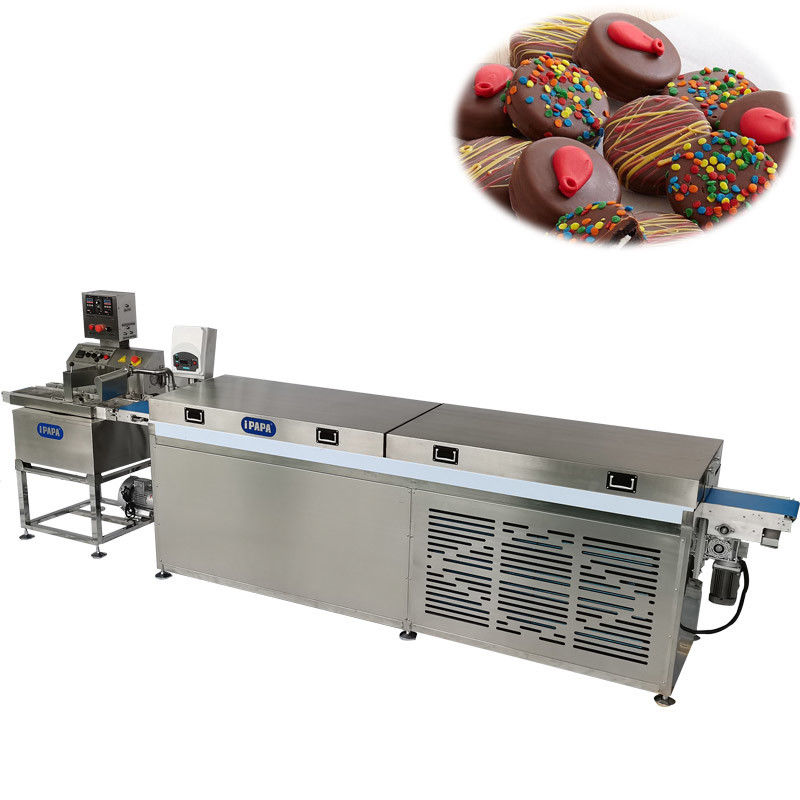

Type 1: Chocolate enrobing machine + 3.2M Cooling tunnel

Coconut Bar Chocolate Coating Machine / Chocolate Enrober Machine For Cakes 0

Type 2: Chocolate enrobing machine + 2M Fan cooling conveyor

Coconut Bar Chocolate Coating Machine / Chocolate Enrober Machine For Cakes 1


Features:



1.This chocolate enrobing machine is made up of the pouring ,vibrating and Auto temperature control into one.
2.It is quite flexible,and to be with compact conformation.
3.It is easy operation and convenient maintenance.
4.It is the main equipment which suitable for pouring and filling chocolate on-the-spot in food company, lab and shops.
Temperature range 1-10 degrees adjustable, US brand Copeland compressor 304 stainless steel material, 3MM thick stainless steel industrial pipe frame.Two layers insulation cotton inside stainless steel mirror decoration



Application:



Food coated by PE30 Chocolate enrobing machine:



Coconut Bar Chocolate Coating Machine / Chocolate Enrober Machine For Cakes 2

Coconut Bar Chocolate Coating Machine / Chocolate Enrober Machine For Cakes 3





protien bar machine working with PE30 small chocolate enrobing line video:





PE30 Small chocolate enrobing machine for energy ball video:





About Us



Shanghai Papa Industrial Co., LTD has been the leading expert for the chocolate machinery in China, especially the chocolate enrobing machine, we have both industrial chocolate enrobing machine and commercial chocolate enrobing machine available to meet different customer's needs. We have related commercial cooling tunnel as well customized for our customers with little space required and energy saving. Our chocolate enrober machines are approved with CE certificate and are hotly exported to the world, especially in USA and Europe.



Optional devices:



1.P307 protein bar machine



Our P307 Protein bar machine maker is new designed extruder machine specially made for making many types of bars such as protien bar, fruit bar, energy bar, coconut bar, chocolate bar and so on.

Coconut Bar Chocolate Coating Machine / Chocolate Enrober Machine For Cakes 4
