Small Chocolate Coating Machine For Dried Fruit Strawberry
  • Small Chocolate Coating Machine For Dried Fruit Strawberry
  • Small Chocolate Coating Machine For Dried Fruit Strawberry
  • Small Chocolate Coating Machine For Dried Fruit Strawberry

Small Chocolate Coating Machine For Dried Fruit Strawberry

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number PE30
Product Details
Capacity:
30 KG Chocolate/batch
Belt Speed:
2meter/min
Tunnel Belt Width:
200mm
Heating Method:
Electric Heating
Power:
2.8kw
Weight:
500KG
Voltage:
220V,Single Phase
Dimention:
3200x710x1350mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Strawberry Chocolate Coating Machine

,

Dried Fruit Chocolate Coating Machine

,

Small Chocolate Enrober 220V

Product Description

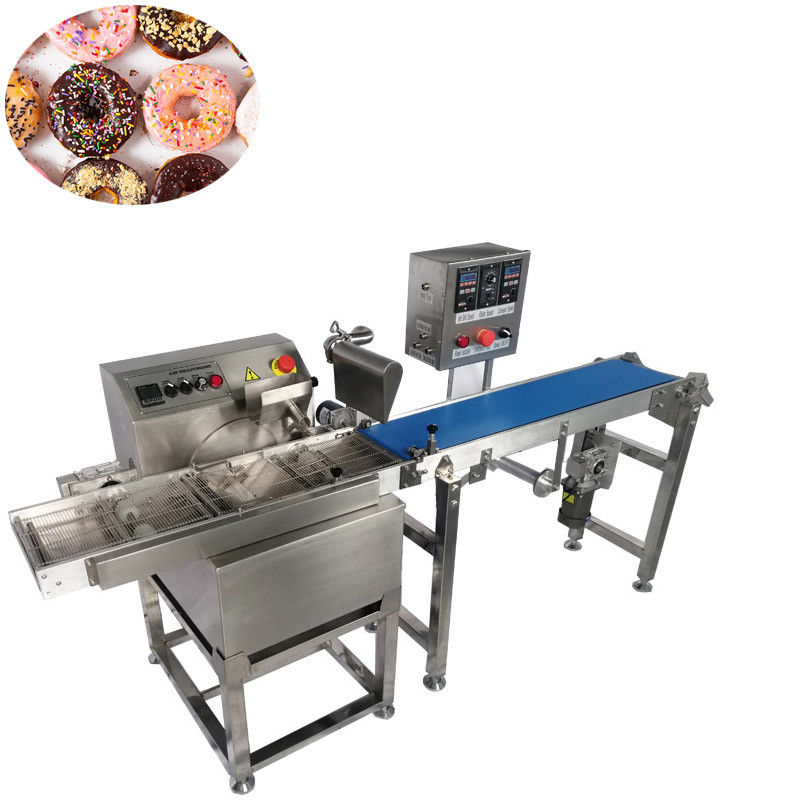

Small chocolate coating machine for dried fruit strawberry



Description:



Small chocolate coating machine for dried fruit strawberry is designed for small chocolate industries,some customers need a chocolate enrobing equipment to do the chocolate enrobing automatically,but they have very limited operation space and very small chocolate producton demand,so they are urgent to find a small sized chocolate enrobing machine.Our small chocolate coating machine is born for this,it can 8-60kg chocolate paste one batch and can create a consistent chocolate coating process that ensure all the end food with consistent weight,uniform thickness and perfect finish around food or on bottom of food, such as cereal bars, energy bars, protein bars, candy bars, rice bites, wafers and wafer stick, birthday cakes, cakes, breads, rolls, pies, muffins, snacks, candies, confectionery, maamoul and mooncakes, cookies, biscuits, crackers, cake ball, date ball and chocolate truffles, mochi, dates.



The small chocolate enrobing machine adopted fully stainless steel wire drawing production,it is totally conformed with food standard.chocolate sensor ensure the electric control sensitivity and temperature preserve efficiency,which can achieve the uniform chocolate tempering.



The mini chocolate enerober has 4 models with different capacity for customer to choose: PE8, PE15, PE30 and PE60. For example,The PE15 Commercial chocolate coating machine tank capacity is 15kg chocolate per batch and 60kg per batch for PE60.Usually the chocolate coater need work with the cooling tunnel for cooling fan conveyor belt do the full or partly coating.



There are two options for enrobing chocolate: 1. Chocolate enrobing machine with cooling tunnel. 2. Chocolate coating machine with cooling fan conveyor. Cooling tunnel is much bigger size compared to the fan cooling conveyor, but the choclate enrobing machine with cooling fan conveyor is mostly used in shops, kitchen or at home. The chocolate enrobing machine with cooling tunnel can be used for industrial purpose. We have industrial type chocolate enrobing line for customer to choose, the industrial type chocolate enrobing line is with much bigger size and much longer cooling tunnel.



PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg




Type 1: Chocolate enrobing machine + 3.2M Cooling tunnel

Small Chocolate Coating Machine For Dried Fruit Strawberry 0

Type 2: Chocolate enrobing machine + 2M Fan cooling conveyor

Small Chocolate Coating Machine For Dried Fruit Strawberry 1


Features:



1.This chocolate enrobing machine is made up of the pouring ,vibrating and Auto temperature control into one.
2.It is quite flexible,and to be with compact conformation.
3.It is easy operation and convenient maintenance.
4.It is the main equipment which suitable for pouring and filling chocolate on-the-spot in food company, lab and shops.
Temperature range 1-10 degrees adjustable, US brand Copeland compressor 304 stainless steel material, 3MM thick stainless steel industrial pipe frame.Two layers insulation cotton inside stainless steel mirror decoration



Application:



Food coated by PE30 Chocolate enrobing machine:



Small Chocolate Coating Machine For Dried Fruit Strawberry 2

Small Chocolate Coating Machine For Dried Fruit Strawberry 3





protien bar machine working with PE30 small chocolate enrobing line video:





PE30 Small chocolate enrobing machine for energy ball video:





About Us



Shanghai Papa Industrial Co., LTD has been the leading expert for the chocolate machinery in China, especially the chocolate enrobing machine, we have both industrial chocolate enrobing machine and commercial chocolate enrobing machine available to meet different customer's needs. We have related commercial cooling tunnel as well customized for our customers with little space required and energy saving. Our chocolate enrober machines are approved with CE certificate and are hotly exported to the world, especially in USA and Europe.



Optional devices:



1.P307 protein bar machine



Our P307 Protein bar machine maker is new designed extruder machine specially made for making many types of bars such as protien bar, fruit bar, energy bar, coconut bar, chocolate bar and so on.

Small Chocolate Coating Machine For Dried Fruit Strawberry 4
