Chocolate Enrober And Cooling Tunnel For Wafer / Dates

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box; packed size: 700*680*690mm, 1100*700*660mm, 3350*860*1180mm Delivery Time : 7-14 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: PE15

Detail Information

Capacity: 15KG Chocolate/batch Belt Speed: 2meter/min
Enrober Belt Width: 180mm Tunnel Belt Width: 200mm
Heating Method: Electric Heating Power: 4.6kw
Weight: 550KG Voltage: 220V,Single Phase
Dimention: 6400*71*1350 Mm Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Dates Chocolate Enrober Machine

,

Wafer Chocolate Enrobing Machine

,

Cooling Tunnel Small Chocolate Enrober

Product Description

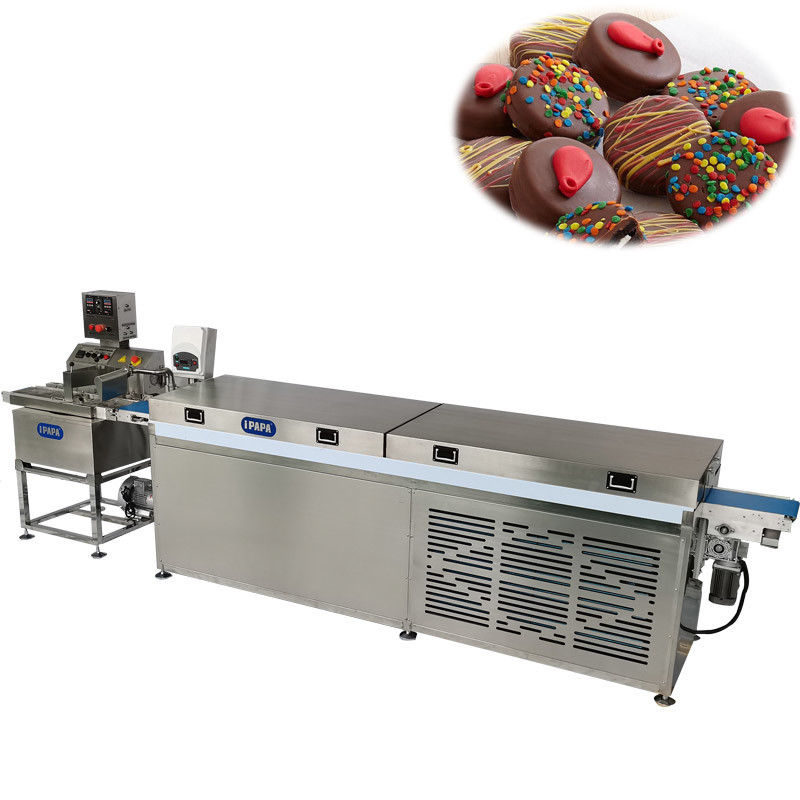

Chocolate enrober and cooling tunnel for wafer/dates

Description:

The small Chocolate enrober and cooling tunnel for wafer/datesis we desigend for small scale chocolate industries,which make the customers can use the small dipping machine enrober to make the end chocolate coated product with consistent weight,uniform thickness and perfect finish even if they have very limited opreration space and small chocolate production demand.

The small Chocolate enrober and cooling tunnel for wafer/dates consists of small chocolate enrobing machine and 3P Chocolate cooling tunnel or cooling fan conveyor belt.The 3P cooling tunnel can do the fast cooling for the chocolate,the temperature can be up to -18 degree and the length of the cooling tunnel is 3.2m,once the food coated,it will flow into the cooling tunnel and can get cold well so that the customer can direclty do the packing.The cooling fan conveyor is usually used for the food that don't need fast cooling.

The mini chocolate enrober and cooling tunnel for wafer/dates has 4 models with different capacity for customer to choose: PE8, PE15, PE30 and PE60. For example,the PE15 Commercial chocolate enrobing machine tank capacity is 15kg chocolate per batch.The capacty for PE60 is 60kg one batch,customer can choose different model according to their daily chocolate consumption.

PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:


ModelPE8PE15PE30PE60
Capacity15KG chocolate/batch8KG chocolate/batch25KG chocolate/batch5KG chocolate/batch
Belt speed2meter/min2meter/min2meter/min2meter/min
Enrober mesh belt width180mm180mm180mm300mm
Tunnel PU belt widh200mm200mm200mm400mm
Heating methodElectric heatingElectric heatingElectric heatingElectric heating
Voltage220V, single phase220V, single phase220V, single phase220V, single phase
Power1.8kw2kw2.8kw3.1kw
Dimension2000x57013502000x640x13503200x710x13503400x910x1400
Weight80KG100kg190kg240kg




Chocolate Enrober And Cooling Tunnel For Wafer / Dates 0

PE30 Commercial chocolate Dripping Machine Enrober demo video:


Food coated by PE15 Chocolate enrobing machine

Chocolate Enrober And Cooling Tunnel For Wafer / Dates 1

Application:

protien bar extruder with PE15 small chocolate enrobing line video:



PE15 Small chocolate enrobing line for energy ball video:



Optional devices:
Automatic protein bar extruding machine
Description:

The complete protein bar extruding line incudes mixer, encrusting machine, date bar cutter, tray arranger, conveyor, baking oven, flow wrapping machine. Optional equipment can be added to the date bar production line, such as maamoul stamping machine for making maamouls and mooncakes, ball roller machine for making energy balls and date balls, wire cut machine for making wire cut cookies and panda cookies,etc.

Specifications:

ModelP160
Capacity60 pcs/min
ApplicationStuffed date bar, date cookies, date roll, fig newtons, date bites, etc.
Product weight10-250g
Casing and filling proportion1:9-10:0
Voltage220V, single phase
Power4.5kw
Dimension4000*1650*1560mm
Weight650KG


Chocolate Enrober And Cooling Tunnel For Wafer / Dates 2
