Place of Origin | CHINA |
Brand Name | iPAPA |
Certification | CE |
Model Number | PE30 |

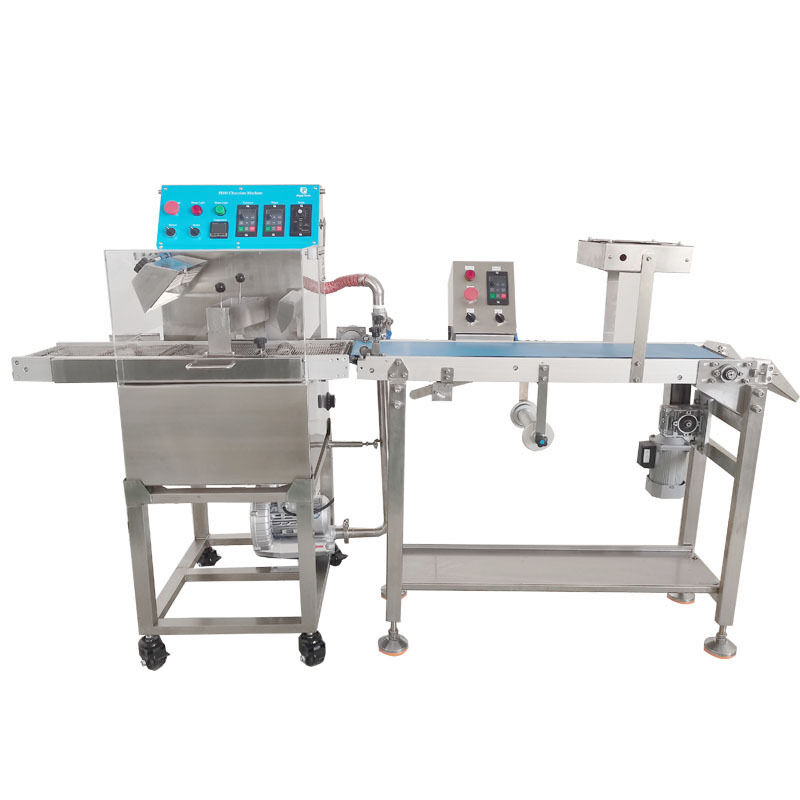

Hot selling home chocolate enrobing machine
Description:
The home chocolate enrobing machine is designed for small scale chocolate industries,the width of the mesh conveyor is 180mm/300m and you could put 1 or 2 product per row,such as strawberry,dates,energy bar,cake,wafer,biscuit,cookies,etc,it's the best option for small scale chocolate enrobing machine if you have limited operation space and small production demand.The small chocolate enrober offer a precise and consistent process that ensures an end product with a consistent weight, uniform thickness and a perfect finish.
The home chocolate enrober machine has 4 models with different melting pot capacity for customer to choose: PE8, PE15, PE30 and PE60. The PE15 Commercial chocolate enrobing machine melting pot capacity is 15kg chocolate per batch and 60kg per batch for PE60 chocolate enrober.There are two options for chocolate coating machine: 1. Chocolate enrobing machine with cooling tunnel. 2. Chocolate coating machine with cooling fan conveyor. The size of the cooling tunnel is 3.2m long,which is much bigger compared to the fan cooling conveyor and can cool the chocolate liquid fast,but the choclate enrobing machine with cooling fan conveyor is mostly used in shops, kitchen or at home. The chocolate enrobing machine with cooling tunnel is mainly designed for industrial purpose.
PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:
Model | PE8 | PE15 | PE30 | PE60 |
---|---|---|---|---|
Capacity | 15KG chocolate/batch | 8KG chocolate/batch | 25KG chocolate/batch | 5KG chocolate/batch |
Belt speed | 2meter/min | 2meter/min | 2meter/min | 2meter/min |
Enrober mesh belt width | 180mm | 180mm | 180mm | 300mm |
Tunnel PU belt widh | 200mm | 200mm | 200mm | 400mm |
Heating method | Electric heating | Electric heating | Electric heating | Electric heating |
Voltage | 220V, single phase | 220V, single phase | 220V, single phase | 220V, single phase |
Power | 1.8kw | 2kw | 2.8kw | 3.1kw |
Dimension | 2000x5701350 | 2000x640x1350 | 3200x710x1350 | 3400x910x1400 |
Weight | 80KG | 100kg | 190kg | 240kg |
Type 1: Chocolate enrobing machine + 3.2M Cooling tunnel
Type 2: Chocolate enrobing machine + 2M Fan cooling conveyor
Features:
1.This chocolate enrobing machine is made up of the pouring ,vibrating and Auto temperature control into one.
2.It is quite flexible,and to be with compact conformation.
3.It is easy operation and convenient maintenance.
4.It is the main equipment which suitable for pouring and filling chocolate on-the-spot in food company, lab and shops.
Temperature range 1-10 degrees adjustable, US brand Copeland compressor 304 stainless steel material, 3MM thick stainless steel industrial pipe frame.Two layers insulation cotton inside stainless steel mirror decoration
Application:
Food coated by PE30 Chocolate enrobing machine:
protien bar machine working with PE30 small chocolate enrobing line video:
PE30 Small chocolate enrobing machine for energy ball video:
About Us
Shanghai Papa Industrial Co., LTD has been the leading expert for the chocolate machinery in China, especially the chocolate enrobing machine, we have both industrial chocolate enrobing machine and commercial chocolate enrobing machine available to meet different customer's needs. We have related commercial cooling tunnel as well customized for our customers with little space required and energy saving. Our chocolate enrober machines are approved with CE certificate and are hotly exported to the world, especially in USA and Europe.
Optional devices:
1.P307 protein bar machine
Our P307 Protein bar machine maker is new designed extruder machine specially made for making many types of bars such as protien bar, fruit bar, energy bar, coconut bar, chocolate bar and so on.
