Industrial Chocolate Enrobing Machine 400mm Belt Width
  • Industrial Chocolate Enrobing Machine 400mm Belt Width
  • Industrial Chocolate Enrobing Machine 400mm Belt Width
  • Industrial Chocolate Enrobing Machine 400mm Belt Width

Industrial Chocolate Enrobing Machine 400mm Belt Width

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number 400
Product Details
Belt Width:
Belt Speed:
Tunnel Length:
Tunnel Temperature:
2-10 ℃
380V, Three Phase
Stainless Steel 304
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

400mm Belt Tabletop Chocolate Enrober


Industrial Chocolate Enrober Machine


Chocolate Enrobing Equipment 2000KG

Product Description

Industrial chocolate enrobing machine for sales UAE




Industrial chocolate enrobing machine for sales UAE is our industrial level chocolate enrobing line for making chocolate enrobed or coated products,such as candies, candy bars, energy bars, rice crispies, cookies, biscuits, cakes, breads, etc.


The chocolate enrobing line consists of chocolate enrober machine and chocolate cooling tunnel. The 400 chocolate enrobing line has belt width 400mm and cooling tunnel length 10 meter long. We also have 600mm bellt width with 14 meter long cooling tunnel, 900mm belt width with 20 meter long cooling tunnel and 1200mm belt width with 24 meter cooling tunnel for customer to choose.

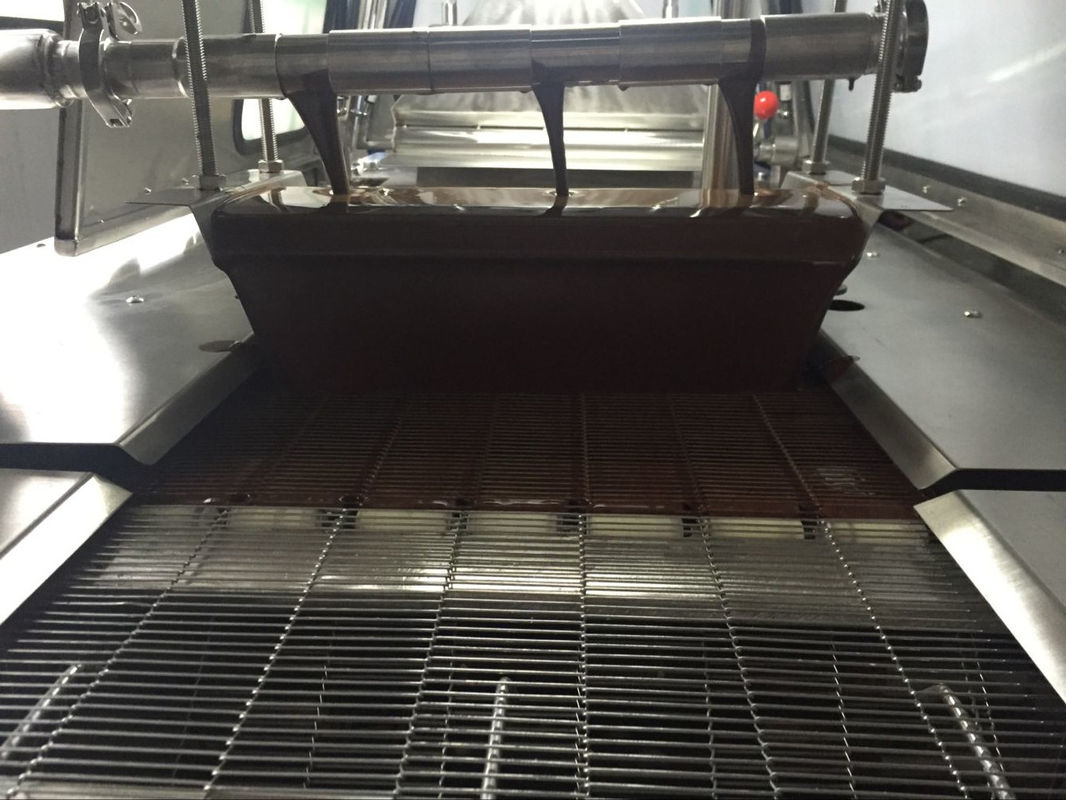

The industrial chocolate enrobing machine can create one or more than two different “waterfall” of liquid chocolate for two ore more than two different coating and the products that need be coated will move through the chocolate waterfall paste before they move down the Cooling Tunnel. Once coated, the the food will pass under an air curtain and over a vibrating plate to remove the excess chocolate.Then the chocolate coated food will continue to go through the Cooling Tunnel for cooling or drying.


The industrial chocolate coating machine normally is connected after the food forming machine, such as protein bar production line, granola bar production line, cookie production, biscuit production, bread production line and so on. As for which chocolate enrobing line model to choose ,it depends on the food forming machine belt size. Our chocolate enrobing line can be customized for the specific height for customer. Customer can use the chocolate enrobing machine alone if he doesn't have the food making machine, they need to take the food to the chocolate enrobing line by hand or by a extra conveyor to finish the food enrobing.


Different models of chocolate enrobing line specifications:


Model 400 600 900 1200
Belt width 400mm 600mm 900mm 1200mm
Belt speed 1-10meter/min 1-10meter/min 1-10meter/min 1-10meter/min
Cooling tunnel length 10meter 14meter 20meter 24meter
Refrigerator unit 2 3 4 5
PLC/Touch screen


Hpmont Hpmont Hpmont
Voltage 380V, Three phase 380V, Three phase 380V, Three phase 380V, Three phase
Power 12.1kw 20.8kw 23.8kw 27.8kw
Dimension 14200x950x1800mm 18200x1150x1800 24200x1450x1800 28250x1750x1800
Weight 2000KG 2450KG 3400KG 4100KG



Product Features

The industrial chocolate enrobing machine is a special automatic equipment for production colored chocolate products. The enrober machine has the functions of full coating, bottom coating and partial coating, and integrates chocolate enrobing and cooling.


Industrial Chocolate Enrobing Machine 400mm Belt Width 0

Application of Industrial Chocolate Enrober Machine
It can dip chocolate paste on the surface of a variety of foods, such as candy, cake, wafer biscuits, cookies, egg rolls,moon cakes and fruit jerky, form a variety of unique taste of chocolate products. The chocolate coating machine can realize enrobing on the surface of food or enrobing on the bottom of food.


Advantages of Industrial Chocolate coating machine
1.Equipped with cooling tunnel, 3P refrigeration units have good refrigeration effect.
2.The chocolate enrober can be designed into two double net coatings, one side can be painted with white chocolate and the other is black chocolate.
3.The conveyor belt is equipped with automatic correction device, the machine uses touch screen, PLC control.
4.The length of chocolate enrobing equipment and cooling tunnel can be adjusted according to customer requirements.


How to achieve continuous chocolate liquid feeding?

500L Chocolate melting tank

For continuous chocolate liquid feeding, we customize customer a small size 500L chocolate melting tank, the 500L chocolate melting tank has heating pipes inside which are used to heat and melt chocolate blocks into liquid.

Industrial Chocolate Enrobing Machine 400mm Belt Width 1


Chocolate pump

The 5 M3 chocolate feeding pump is used to connect the chocolate enrober machine and the chocolate melting tank. Chocolate liquid will be transferred from the melting tank to the enrober tank by accurate ration. The jacketed connecting pipes are used to connect all the machines to transfer chocolate liquids.

Industrial Chocolate Enrobing Machine 400mm Belt Width 2


400 Chocolate enrobing production line demo video:



400 Chocolate enrobing line in customer factory:



Food coated by chocolate enrobing machine


Industrial Chocolate Enrobing Machine 400mm Belt Width 3




Industrial Chocolate enrobing line for ball products video:



Chocolate coating line for protein bar products video:



Chocolate enrobing line for biscuit stick products video:



Chocolate enrobing line for strawberries video:



Chocolate enrobing line with zigzag chocolate decorating machine video:
