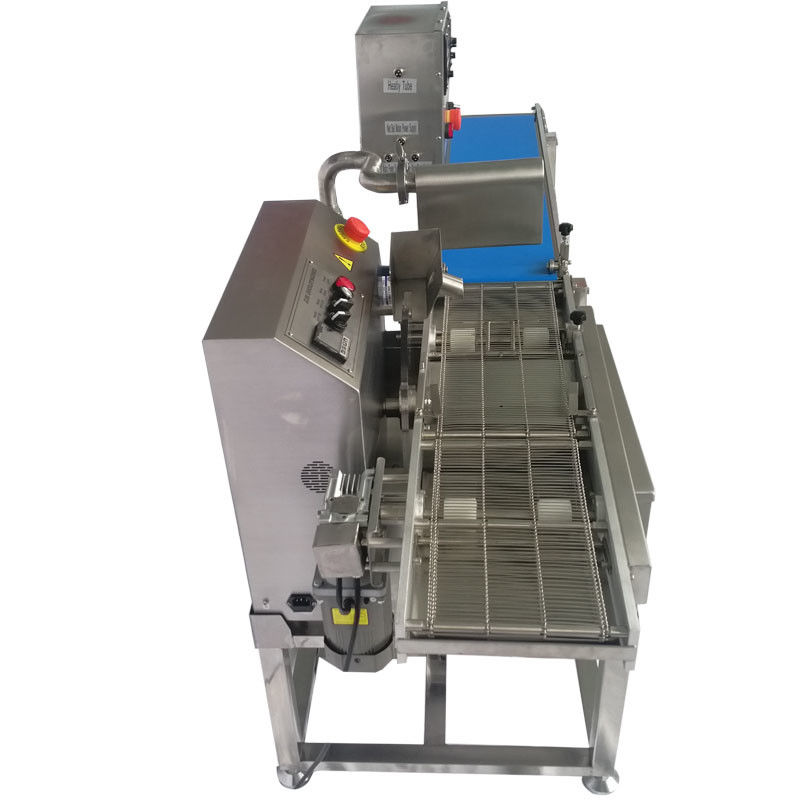

CE Certificated Chocolate Dipping And Enrobing Machine
  • CE Certificated Chocolate Dipping And Enrobing Machine
  • CE Certificated Chocolate Dipping And Enrobing Machine
  • CE Certificated Chocolate Dipping And Enrobing Machine

CE Certificated Chocolate Dipping And Enrobing Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number PE30
Product Details
Capacity:
30 KG Chocolate/batch
Belt Speed:
2meter/min
Tunnel Belt Width:
200mm
Heating Method:
Electric Heating
Power:
3.1kw
Weight:
500KG
Voltage:
220V,Single Phase
Dimention:
3400x910x1400mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Chocolate Dipping Machine CE

,

Chocolate Dipping Machine Snacks

,

Dipping Chocolate Enrobing Equipment

Product Description

CE certificated Chocolate Dipping and enrobing Machine



Description:



The CE certificated Chocolate dipping and enrobing machine is used to coat chcolate on the surface or of food, such as cereal bars, energy bars, protein bars, candy bars, rice bites, wafers and wafer stick, birthday cakes, cakes, breads, rolls, pies,,etc.



We have the chocolate dipping machine with melting pot capcity 8kg,15kg,30kg and 60kg,for example,if your daily chocolate consumption is small,you can choose our 8kg or 15kg one,you can melt the solid chocolate 8kg or 15kg one batch and then do the chocolate enrobing,customer can choose the suitable one according to their daily requirment.Also the machine can work with the cooling tunnel or air fan cooling conveyor to dry the chocolate,customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine.



The small chocolate dipping machine can automates the coating or covering of confectionery and truffles, increasing productivity and efficiency. The traditional way of manual coating of chocolates, cookies, biscuits or confectionery is time consuming.The chocolate enrobing machine can take your production to a much higher level. It can be supplied as either independent unit or combined with a tempering machine and a cooling tunnel.The most important is the chocolate dipping machine can offer precise and consistent process that ensures a finished product with a consistent weight,uniform thickness and a perfect finish.



The chocolate enrobing is a process that uses a “waterfall” of chocolate to provide a delicious coating of chocolate on products such as pretzels, chips, peanuts, popcorn, cookies and peanut brittle.The coating can consist of milk, dark, or white chocolate, as well as other coatings. During the enrobing process, a curtain of chocolate covers the product.The bottom of the product is coated at the same time by passing over a pool of chocolate.



Type 1: Chocolate dipping and enrobing machine + 3.2M Cooling tunnel

CE Certificated Chocolate Dipping And Enrobing Machine 0

Type 2: Chocolate enrobing machine + 2M Fan cooling conveyor

CE Certificated Chocolate Dipping And Enrobing Machine 1

PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg



After-sales service:



1. All our chocolate enrober are guaranteed for one year. During the enrobing machine warranty period, free maintenance services and free replacement of components and accessories will be done if any faults occur.

2.The size of the chocolate covering machine can be customized according to customer requirements so that it can direclty connect to your food equipment,such as the protien bar machine,protein ball machine or maamoul production line,the products are packaged according to wooden boxes, wooden frames, films, etc.;

3. All chocolate coating machines come with detailed instructions and some vulnerable accessories,the user manaul,operation video,training video,cleaning video and assembly video for the enrobing chocoate machine will be provide.Also will provide the timely online technical support.

4. The wearing parts during the warranty period of the equipm



Application:



Food coated by CE certificated almond chocolate coating machine



CE Certificated Chocolate Dipping And Enrobing Machine 2

CE Certificated Chocolate Dipping And Enrobing Machine 3





protien bar machine working with CE certificated almond chocolate coating machine video:





CE certificated almond chocolate coating machine for energy ball video:



.



About Us



Shanghai Papa Industrial Co., LTD has been the leading expert for the chocolate machinery in China, especially the chocolate enrobing machine, we have both industrial chocolate enrobing machine and commercial chocolate enrobing machine available to meet different customer's needs. We have related commercial cooling tunnel as well customized for our customers with little space required and energy saving. Our chocolate enrober machines are approved with CE certificate and are hotly exported to the world, especially in USA and Europe.



Optional devices:



1.P307 protein bar machine



Our P307 Protein bar machine maker is new designed extruder machine specially made for making many types of bars such as protien bar, fruit bar, energy bar, coconut bar, chocolate bar and so on.It can work with the chocolate enrobing machine to make the chocolate bar food product,also can connect to our automatic flow wrapping machine to make the finished chocolate bar with packing from mixture.

CE Certificated Chocolate Dipping And Enrobing Machine 4
