Automatic Protein Cereal Bar Chocolate Coating Machine With Chocolate Melting Tank

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box; packed size: 700*680*690mm, 1100*700*660mm, 3350*860*1180mm Delivery Time : 7-14 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: PE15

Detail Information

Capacity: 60KG Chocolate/batch Belt Speed: 2meter/min
Enrober Belt Width: 300mm Tunnel Belt Width: 300mm
Heating Method: Electric Heating Power: 5.3kw
Weight: 500KG Voltage: 220V,Single Phase
Dimention: 5600*650*1320 Mm Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Cereal Bar Chocolate Coating Machine

,

Automatic Chocolate Coating Machine 2meter/Minne

,

Chocolate Melting Tank Machine

Product Description

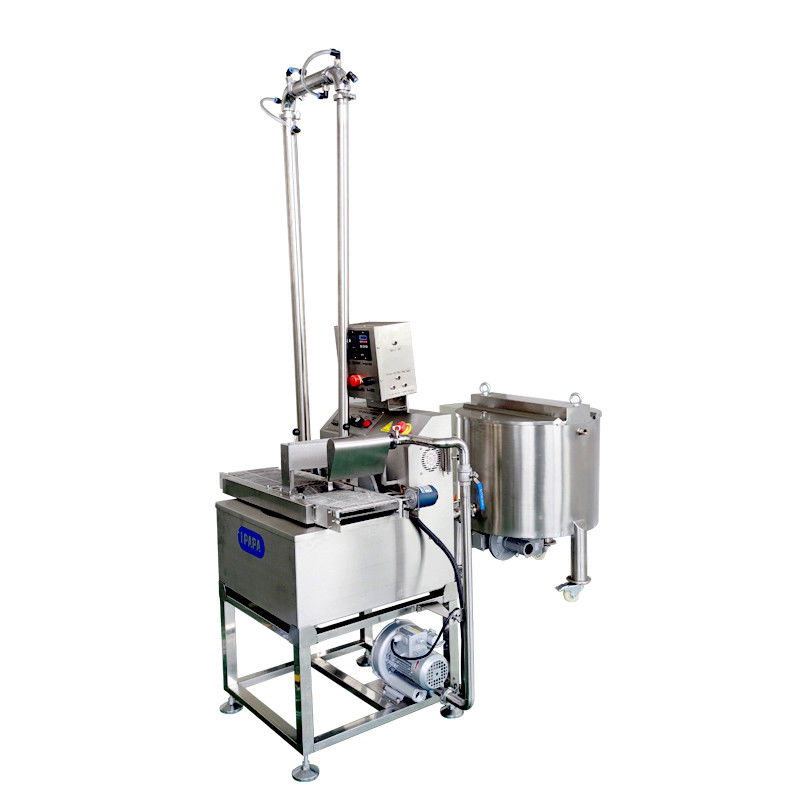

Automatic protein cereal bar chocolate coating machine with chocolate melting tank

Description:


The small protein cereal bar chocolate enrobing line s the small chocolate coating machine we desigend for small scale chocolate industries,which make the customers can use the small chocolate enrober to make the end chocolate coated product with consistent weight,uniform thickness and perfect finish even if they have very limited opreration space and small chocolate production demand.

Customers can add an extra chocolate melting tank and chocolate pump and connect them via the pipes to achieve continuous chocolate supplying in the chocolate enrobing line.The chocolate melting tank is used to melt the chocolate into liquid and warm keeping storage, the chocolate pump is used for chocolate liquid transferring to the chocolate enrobing machine tank.


PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg



Automatic Protein Cereal Bar Chocolate Coating Machine With Chocolate Melting Tank 0

Automatic Protein Cereal Bar Chocolate Coating Machine With Chocolate Melting Tank 1



Food coated by PE15 Min Enrobing machine

Automatic Protein Cereal Bar Chocolate Coating Machine With Chocolate Melting Tank 2

Application:

protien bar extruder with PE15 small chocolate enrobing line video:



Date bar making machine with PE15 small chocolate enrober video:



PE15 Small chocolate enrobing line for energy ball video:



PE15 Small chocolate enrobing line for fruit bar video:
