500L Electric heating pipes double jacketed chocolate melting tank

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 10-15 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 10 sets/month
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: 500L

Detail Information

Capacity: 500L Electric Heating Power: 5kw
Main Axie Rotatiing Speed: 22.5 Rpm Voltage: 380V, Three Phase
Dimention: Ø1080*1300mm Weight: 495KG
Material: Stainless Steel 304 Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
Application: Chocolate
High Light:

500L chocolate melting tank

,

double jacketed chocolate melting tank

,

ss304 electric heating pipes

Product Description

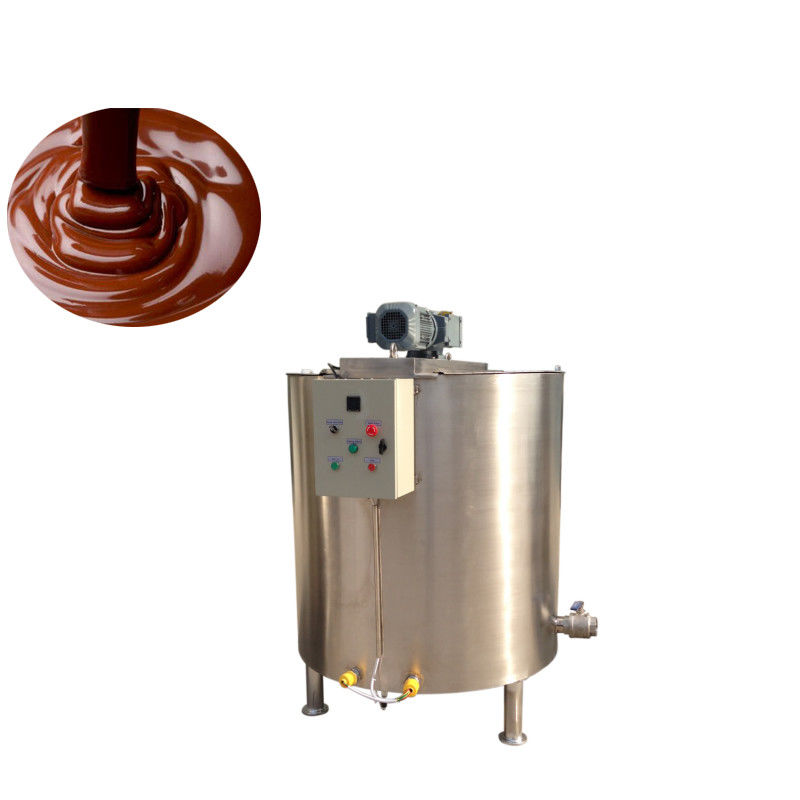

500L Electric heating pipes double jacketed chocolate melting tank



Description:

500L Electric heating pipes double jacketed chocolate melting tank is our 500L capacity chocolate melting tank used for chocolate block melting for continuous supply of chocolate liquid for chocolate production. The chocolate melting tank is double jacketed with warm water recycling to keep the chocolate liquid warm at a certain temperature, it is also inserted with electric heating pipes for fast chocolate block melting, the chocolate mixing tank has the mixing shaft at the bottom to keep the liquid stirring, and a outlet to connect connection pipes to chocolate transfer pump, the chocolate pump will take the liquid to the chocolate tempering machine, chocolate enrober machine or chocolate moulding machine.



The chocolate holding tank has different capacties for customer to choose, we have minumum 100L chocolate holding tank ans maximum 2000L chocolate holding tank. The 100L chocolate holding tank is normally used for small chocolate production, such as our small chocolate enrober, the 2000L chocolate holding tank is used for industrial chocolate production line.





Specifications:



Model 500 100
Capacity 500L  100L
Voltage 380V, Three phase 380V, Three phase
Electric power 2.5kw 2kw
Dimension Ø1080*1300

Φ750*700mm

Weight 495KG 290KG



500L Electric heating pipes double jacketed chocolate melting tank 0

500L Electric heating pipes double jacketed chocolate melting tank 1

Application:

500L Electric heating pipes double jacketed chocolate melting tank 2

Chocolate melting tank in production video:





The chocolate warm keeping tank normally works with chocolate conching machine and chocolate tempering machine in the chocolate production line, It is mostly needed for the chocolate enrobing line and chocolate moulding line for continuous chocolate supply. If you want to know more about our chocolate mixing tank, please send us an inquiry, we will reply in 24 hours !
