CE Certificated Chocolate Dipping Enrobing Machine For Snack Food

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box; packed size: 700*680*690mm, 1100*700*660mm, 3350*860*1180mm Delivery Time : 7-14 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: PE30

Detail Information

Capacity: 30 KG Chocolate/batch Belt Speed: 2meter/min
Tunnel Belt Width: 200mm Heating Method: Electric Heating
Power: 2.8kw Weight: 500KG
Voltage: 220V,Single Phase Dimention: 3200x710x1350mm
Material: Stainless Steel 304 Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
Application: Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

CE Chocolate Dipping Enrobing Machine

,

Snack Chocolate Dipping Enrobing Machine

,

Food Chocolate Enrobing Machine

Product Description

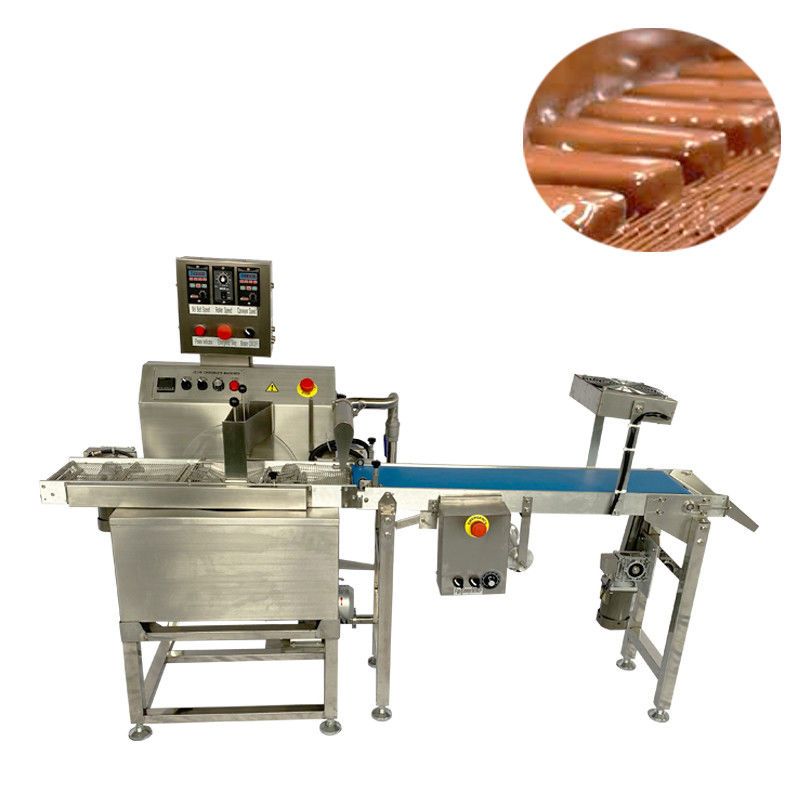

CE certificated chocolate dipping enrobing machine for snack food



Description:



The CE certificated chocolate dipping enrobing machine for snack food is designed for coating chocolate or other coating around snack food or on bottom of snack food, such as cereal bars, energy bars, protein bars, candy bars, rice bites, wafers and wafer stick, birthday cakes, cakes, breads, rolls, pies, muffins, snacks, candies, confectionery, maamoul and mooncakes, cookies, biscuits, crackers, cake ball, date ball and chocolate truffles, mochi, dates.



The mini chocolate dipping machine adopted fully stainless steel wire drawing production,it is totally conformed with food standard.Chocolate enrober sensor ensure the electric control sensitivity and temperaturepreserve efficiency,which can achieve the uniform chocolate tempering.The small chocolate enrobing machines offer a precise and consistent process that ensures an end product with a consistent weight, uniform thickness and a perfect finish.



The chocolate enrober machine has 4 models for customer to choose: PE8, PE15, PE30 and PE60. The PE15 Commercial chocolate coating machine tank capacity is 15kg chocolate per batch. The cooling tunnel has a 3P refrigerator installed inside the tunnel chamber, the imported band copeland refrigerator unit guarantees the cooling tunnel with stable quality and strong cooling performance. The commercial cooling tunnel has a total length of 3.2 meter long and belt width 200mm. The cooling tunnel length can be customized according to customer's requirements.



For continuous chocolate feeding in the chocolate enrobing line, chocolate melting tank and chocolate pump can be added in addition to the small chocolate enrobing machine as the optional equipment to improve the enrobing chocolate efficiency. The chocolate melting tank is used to melt the chocolate into liquid and for warm keeping,which save much time on chocolate melting, the chocolate pump is used for chocolate liquid transferring to the chocolate enrobing machine tank.



There are two options for enrobing chocolate: 1. Chocolate enrobing machine with cooling tunnel. 2. Chocolate coating machine with cooling fan conveyor. Cooling tunnel is much bigger size compared to the fan cooling conveyor, but the choclate enrobing machine with cooling fan conveyor is mostly used in shops, kitchen or at home. The chocolate enrobing machine with cooling tunnel can be used for industrial purpose. We have industrial type chocolate enrobing line for customer to choose, the industrial type chocolate enrobing line is with much bigger size and much longer cooling tunnel.



PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg




Type 1: Chocolate enrobing machine + 3.2M Cooling tunnel

CE Certificated Chocolate Dipping Enrobing Machine For Snack Food 0

Type 2: Chocolate enrobing machine + 2M Fan cooling conveyor

CE Certificated Chocolate Dipping Enrobing Machine For Snack Food 1


Features:



1.This chocolate enrobing machine is made up of the pouring ,vibrating and Auto temperature control into one.
2.It is quite flexible,and to be with compact conformation.
3.It is easy operation and convenient maintenance.
4.It is the main equipment which suitable for pouring and filling chocolate on-the-spot in food company, lab and shops.
Temperature range 1-10 degrees adjustable, US brand Copeland compressor 304 stainless steel material, 3MM thick stainless steel industrial pipe frame.Two layers insulation cotton inside stainless steel mirror decoration



Application:



Food coated by PE30 Chocolate enrobing machine:



CE Certificated Chocolate Dipping Enrobing Machine For Snack Food 2

CE Certificated Chocolate Dipping Enrobing Machine For Snack Food 3





protien bar machine working with PE30 small chocolate enrobing line video:





Date bar making machine with PE30 small chocolate coating machine video:





PE30 Small chocolate enrobing machine for energy ball video:





PE15 Small chocolate coating line for cookie biscuits video:



How to increase your production level and volume with a chocolate enrober



A chocolate enrober will increase your production level and volume. It will ensure a bigger and faster output volume and uniform finish of your products – no matter whether the products are completely enrobed, partly enrobed only or bottom coated.

Our range of enrobing machines starts with a width of 180 mm – this model for this mini chocolate enrobber which has a chocolate wheel melter.The range is then increased to the semi-industrial models with the widths of 200, 400 and 600 mm – all supplied by a pump. The enrobers can be combined with automatic supply of tempered chocolate melting tank.

Start exploring our Papa enrobing machines and discover how Papa can take your operation to the next level.



The Enrobing Machine and Cooling Tunnel:



The Cooling Tunnel is a long structure with imported cooling unit inside,which is similar to a refrigerator. This cooling or freezing tunnel works in conjunction with our Enrobing Machine.The freezing tunnel unit we use is famous brand Copeland and the power is 3.5KW,which can create good and fast cooling effect. The cooling tunnel can be custom-made by different tunnel length and compressor power. we can customized 4meter, 6meter, 8meter and 10 meter cooling tunnel with 3P, 5P or 8P compressor according to customer's requirements.



The chocolate Enrobing Machine can create a waterfall of liquid chocolate, which can make the products move through before they move down the Cooling Tunnel. Once coated, the chocolated covered food can pass under an air curtain and over a vibrating plate to remove the excess chocolate. They then continue through the Cooling Tunnel where they slowly set before reaching the Offload Room. These chocolates are then packaged up and stored in our Chocolate Room, or immediately hand packed depending on demand.



What after-sales service is provided about the chocolate coating machine?



1. All our chocolate enrober are guaranteed for one year. During the enrobing machine warranty period, free maintenance services and free replacement of components and accessories will be done if any faults occur.

2.The size of the chocolate covering machine can be customized according to customer requirements so that it can direclty connect to your food equipment,such as the protien bar machine,protein ball machine or maamoul production line,the products are packaged according to wooden boxes, wooden frames, films, etc.;

3. All chocolate coating machines come with detailed instructions and some vulnerable accessories,the user manaul,operation video,training video,cleaning video and assembly video for the enrobing chocoate machine will be provide.Also will provide the timely online technical support.

4. The wearing parts during the warranty period of the equipment will be provided free of charge at random, and we promise to provide the spare parts needed to maintain the equipment at a favorable price.



What sizes / types of enrobers are available?


Generally, the body of the chocolate enrober is made from stainless steel to minimize contamination. Enrobers come in a wide array of sizes, ranging from industrial sized machines – with over 400mm belts that process thousands of items per hour – to much smaller machines, with belts as narrow as 180mm. Generally the wider the belt, the higher melting pot capacity per batch the enrober will generate.Also will match the longer cooling tunnel to dry the chocolate well.



Chocolate Enrober Pricing?


Chocolate enrobers are often made exactly based on the buyer's universal demand, as certain components can be added or removed and belt widths can be customized.Usually customers will choose our 15kg chocolate enrober and 3.2m cooling tunnel for the small business,this is our ery hot selling model and we have machine in stock.Buying this kind chocolate enrobing line will save the buyer significant time and money,the price for the chocolate enrobing machine is around US$13500.But if the customer have the cooling tunnel or want to do other processing,the customers can only buy the chocolate enrober or chcolate enrober with a 1m conveyor belt with cooling fan,for this case,the price will be very low,just need U$4500-US$6500.Certainly if customers will coat much chocolate or need coat two different chocolate,we also have the large 400mm chocolate coating line,which can do it...Using the 500 liter chocolate melting tank and chocolate pump to connect to this enrobing line,it can improve the chocolate enrobing or dipping effect highly,the price is around US$23,000.



How to make Chocolate Chip Dipped Granola Bars or chocolate coated bar?

Chocolate dipped granola bar or chocolate coated bar are a very popular food,it can be made by different ingredients and the covered with one layer of chocolate.Customers can choose to make the different bar with the recipe they want and then put the finished bar on the chocolate enrobing line for chocolate coating.If the customers want to automate it and improve efficiency,they can get a energy bar machine or protein bar extruder machine and connect it to our our small enrober,customers just need prepare the mixture well and put the mixture into the hopper of the energy bar machine or granola bar machine,the bar can be formed through the extrusion mold of the granola machine and then the finished bar will go through the chocolate coating machine by the conveyor belt to be fully coated or partly coated.



About Us



Shanghai Papa Industrial Co., LTD has been the leading expert for the chocolate machinery in China, especially the chocolate enrobing machine, we have both industrial chocolate enrobing machine and commercial chocolate enrobing machine available to meet different customer's needs. We have related commercial cooling tunnel as well customized for our customers with little space required and energy saving. Our chocolate enrober machines are approved with CE certificate and are hotly exported to the world, especially in USA and Europe.



Optional devices:



1.P307 protein bar machine



Our P307 Protein bar machine maker is new designed extruder machine specially made for making many types of bars such as protien bar, fruit bar, energy bar, coconut bar, chocolate bar and so on.

CE Certificated Chocolate Dipping Enrobing Machine For Snack Food 4
