High speed Energy bar extruder date bar making machine
  • High speed Energy bar extruder date bar making machine
  • High speed Energy bar extruder date bar making machine
  • High speed Energy bar extruder date bar making machine

High speed Energy bar extruder date bar making machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P400
Product Details
Capacity:
120-360 PCS/MIN
Product Shape:
Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight:
10-250g
Power:
2.5kw
Voltage:
220V,Single Phase
Dimention:
4300*968*1200mm
Weight:
400KG
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Fruit Bar
High Light:

extruder date bar making machine

,

automatic date bar making machine

,

High speed cereal bar making machine

Product Description

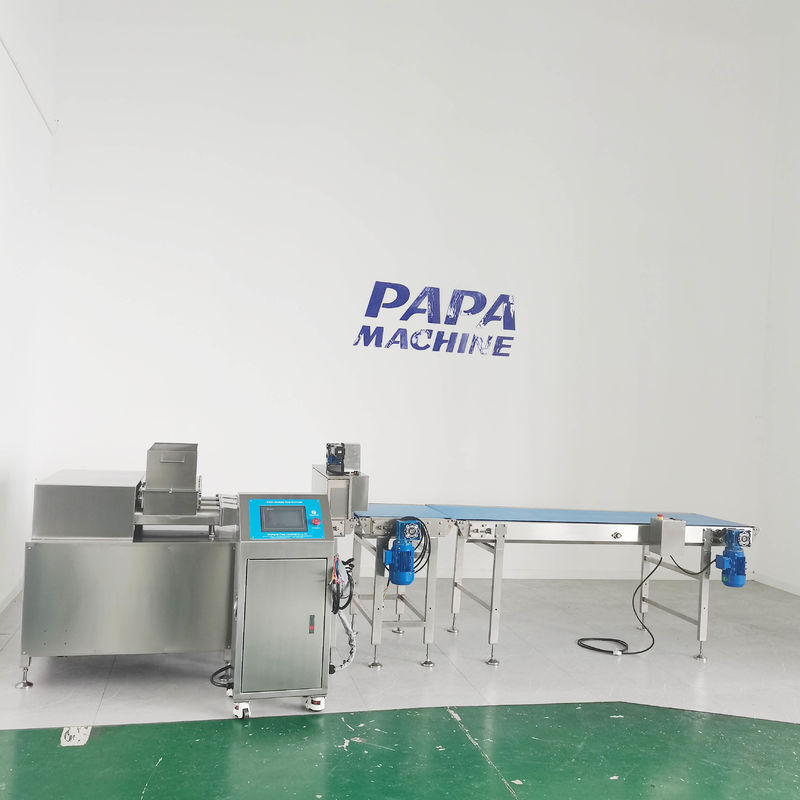

High speed Energy bar extruder date bar making machine



Description:



High speed Energy bar extruder date bar making machine is the high production capacity extruding machine according to customers’requirement,which can make output the six rows of protein bar with desired size at the same time.The High speed Multiples rows Energy bar extruder date bar making machine can make the protein bar,date bar,nutrition bar,power bar and so on.



The high speed Energy bar extruder date bar making machine is full automatic PLC control with touch screen,high configuration with Delta brand,stable to work.



Specifications:

Model P400
Capacity 120-360 pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 2.5kw
Dimension 4300*968*1200mm
Weight 400KG

        产品标题



High speed Energy bar extruder date bar making machine



High speed Energy bar extruder date bar making machine 0



Bar produced by High speed Energy bar extruder date bar making machine



High speed Energy bar extruder date bar making machine 1

High speed Energy bar extruder date bar making machine 2

Application:



Multiple lanes protein bar production line for trapezoid shape bar:





Multiple lanes protein bar production line for nuts mixed energy bar:





Multiple lanes protein bar production line for sticky fruit bar:





Optional devices:



1. Cooling tunnel

The cooling tunnel is used for cooling food products or chocolate coated products, the cooling temperature normally is setted 0-10 ℃, the cooling tunnel length normally require 6-10 meters, it depends on customer's requirements on customer's product formula. The conveyor belt width has 400mm, 600mm, 900mm and 1200mm for customer to choose. The cooling tunnel is a optional equipment according to customer's product textrure requirements.

High speed Energy bar extruder date bar making machine 3



2. Automatic panning machine/Automatic tray aligning machine

The automatic panning system or tray aligning machine is used for auto bar sorting and collecting into baking trays. For some bars which need oven baking, room cooling or normal storage, customer need to collect the bars into the baking trays. The auto tray aligning machine avoids collecting the bars one by one by hands, It largely saves the time and labor.



High speed Energy bar extruder date bar making machine 4



3. Chocolate enrobing line

Industrial type chocolate enrobing line includes chocolate enrober and chocolate cooling tunnel. The industrial type chocolte enrobing line has a minumum 400mm belt width which will be connected to the protein bar forming machine, the belt height will be customized according to protein bar machine belt height. It is the essential equipment for making chocolate coated bars.



High speed Energy bar extruder date bar making machine 5



4. Full auto sorting and flow wrapping line

The full automatic sorting and flow wrapping line includes automatic sorting conveyors and automatic flow wrapping machine. The sorting conveyor need to customized according to customer's protein bar line belt width and height, as well as direction in factory. The sorting conveyor can connect directly to the bar forming machine, or connect the cooling tunnel, or connect the cooling conveyor, or connect the chocolate enrober, it is very flexible. The automatic flow wrapping machine is the major machine doing the film wrapping work for the bar products. It has high speed for wrapping bars with different sizes.

High speed Energy bar extruder date bar making machine 6

P400 Multiple lanes protein bar production line can be separately used or connect other machines in food production. It ideally meets customer's need for high production and low cost, welcome to contact us if you want to know more about our protein bar production line!
