Automatic mini Homemade Energy Bar Making Machine
  • Automatic mini Homemade Energy Bar Making Machine
  • Automatic mini Homemade Energy Bar Making Machine
  • Automatic mini Homemade Energy Bar Making Machine
  • Automatic mini Homemade Energy Bar Making Machine

Automatic mini Homemade Energy Bar Making Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P307
Product Details
Capacity:
10-60 Pcs/min
Product Shape:
Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight:
10-250g
Power:
0.5kw
Voltage:
220V,Single Phase
Dimention:
2250*560*1380mm
Weight:
180KG
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Energy Bar
High Light:

20pics/Min Homemade Energy Bar Making Machine

,

P307 Automatic Energy Bar Making Machine

,

Automatic Ss 304 Energy Bar Maker

Product Description

Automatic mini Homemade Energy Bar Making Machine



Description:

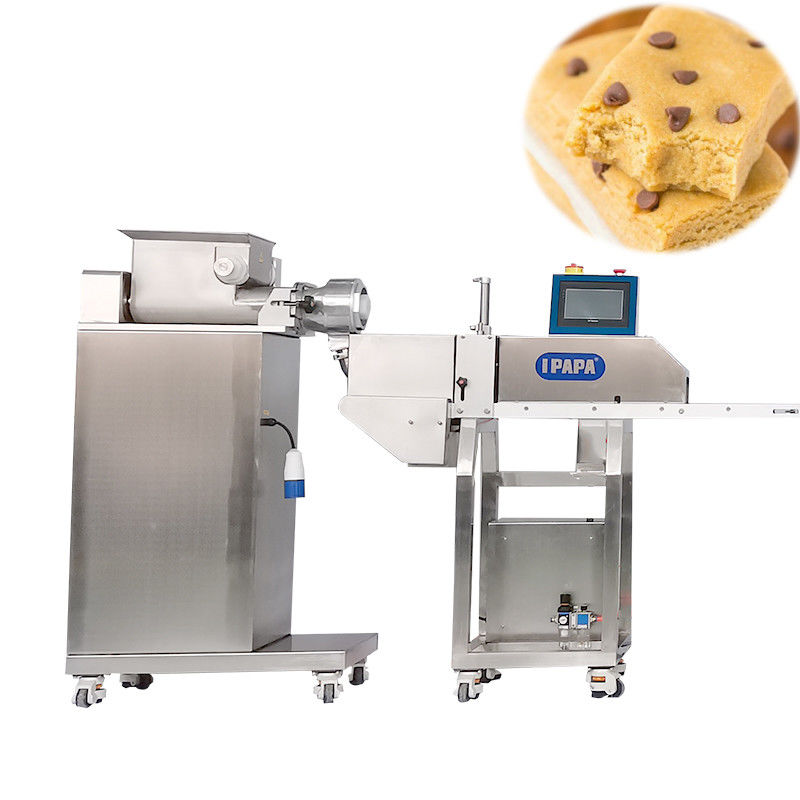

The automatic mini energy bar making machine is our newly designed horizontal type single row protein bar extrusion machine according to customers' requirement with smaller size and lower budget.The small energy bar machine is very is very easy to operate and move,small footprint size,which can put in the small bakery shop and do the proein bar,energy bar,date bar and other different bar food making.



Small energy bar machine is our fourth generation energy bar making machine, it consist of the protein energy bar extruder and energy bar cutting machine.The energy bar extruder is horizontal designed for better dough and or mixture transfering, and driven by two PE rolling screw inside the stainless steel flat feeding hopper.The double rolling screw will transfer the pre-mixed dough to the rectifier for dough equal distribution, then the dough will comes out of the customized nozzle mold to form a bar with a fixed size and shape and then finally conveyored and cutted by a separate vertical protein bar cutting machine.



The protein bar extruder is specially made for making soft mixture, hard mixture or sticky mixture bars.The protein bar extruder machine adopts to the horizontal type with double rolling screws to guarantee the dough extruded successfully to the rectifier, and a extra roller on top of hopper rolling down the mixture to guarantee no mixture come out. the horizontal design guarantees the perfect bar shape, the rectifer gurantees the uniform same size and weight of bar.The protein bar cutting machine make the bar length by guillotine cutter, and bar width and thickness and the shape  made by installing cutomsized nozzle mold.The extrusion nozzle mold will be customized according to your energy bar size and shape.



The P307 Small energy bar making machine is controlled by PLC program and operated by screen panel. All settings are done in the touch screen,which includes each section speed adjustment and memory settings.



Small protein bar machine is the best-selling product of our company, which are exported to all countries in the world, especially the United States, Britain and India.


In addition, a small chocolate enerober, cooling tunnel and automatic flow packaging machine can be added behind the protein bar extruder to form a complete chocoalate protein bar production line. Small protein bar machines can greatly decrease customer costs and develop efficiency.







Features:

1.The small protein bar machine is automatic PLC control with a touch screen.

2.Full stainless steel auger screws, and strong PU mold.

3.Newest technology, highest quality, CE certificated.

3.Least space required.



Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 0.5kw
Dimension 2250*560*1380mm
Weight 180KG



Automatic mini Homemade Energy Bar Making Machine 0





Automatic mini Homemade Energy Bar Making Machine 1

Automatic mini Homemade Energy Bar Making Machine 2

Automatic mini Homemade Energy Bar Making Machine 3



Bar produced by P307 Protein bar extruder



Automatic mini Homemade Energy Bar Making Machine 4

Automatic mini Homemade Energy Bar Making Machine 5

Application:



P307 Horizontal protein bar extruder video:





Protein bar extrusion machine with powder coating machine video:





Protein bar extruder machine with turning conveyor and packing line video:





Chocolate coated protein bar production line video:





Related Product:



P160 Automatic encrusting machine

P160 Automatic encrusting machine is our multifunctional equipment to make center filled products, such as cookies, mooncakes, stuffed pies, filled balls, filled date bars, and so on. The encrusting machine can make round, ball, cone, bar, strip shapes, etc. So the encrusting machine can also make bar products, It can not make hard dough, but it is enough for normal products making.

Automatic mini Homemade Energy Bar Making Machine 6



Optional devices:



1. Chocolate enrober

Chocolate enrober is used for coat chocolate around food or on bottom of food, the commercial chocolate enrober machine is small sized and easy operation. Customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine. The chocolate enrober has different capacities for customer to choose.

Automatic mini Homemade Energy Bar Making Machine 7

2. Planetary mixer

The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.

Automatic mini Homemade Energy Bar Making Machine 8



3. Flow wrapping machine

Automatic flow packing machine is used for food packing, featuring by steady working and excellent quality. It can pack variety of different materials and be very multifunctional to pack different kinds of food, such as bars, cookies, biscuits, cakes, breads, etc.

Automatic mini Homemade Energy Bar Making Machine 9
