Small Chocolate Dipping Machine For Peanut Butter Oreos
  • Small Chocolate Dipping Machine For Peanut Butter Oreos
  • Small Chocolate Dipping Machine For Peanut Butter Oreos
  • Small Chocolate Dipping Machine For Peanut Butter Oreos
  • Small Chocolate Dipping Machine For Peanut Butter Oreos

Small Chocolate Dipping Machine For Peanut Butter Oreos

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number PE8
Product Details
Capacity:
8KG Chocolate/batch
Belt Speed:
2meter/min
Enrober Belt Width:
180mm
Tunnel Belt Width:
200mm
Heating Method:
Electric Heating
Power:
5.5kw
Weight:
500KG
Voltage:
220V,Single Phase
Dimention:
3000mm X 570mm X 1350mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Small Chocolate Dipping Machine

,

Chocolate Dipping Machine Peanut Butter

,

Oreos Dipping Chocolate Machine 220V

Product Description

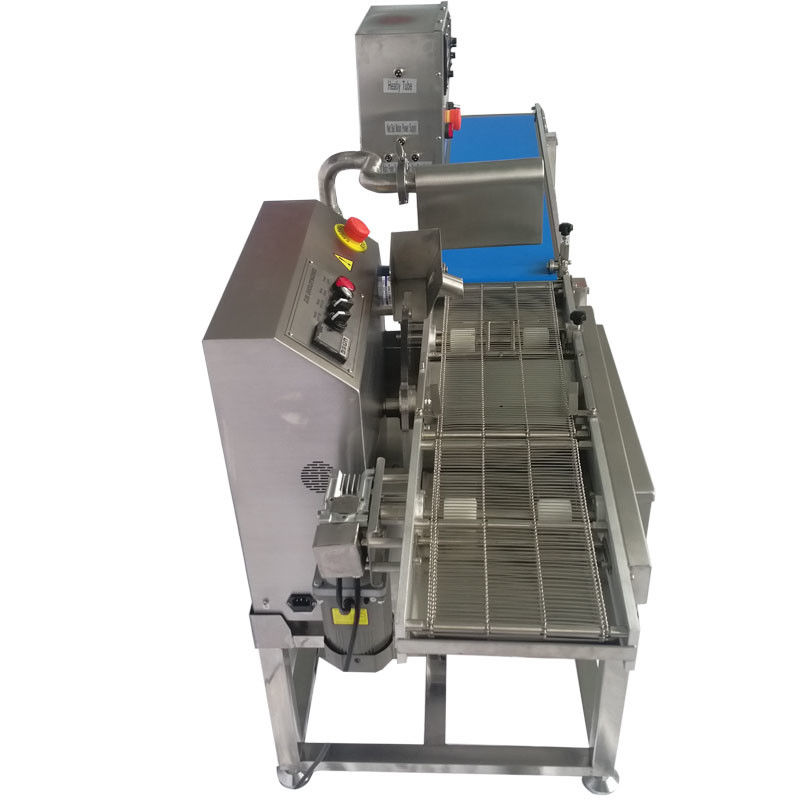

Small chocolate dipping machine for Peanut Butter Oreos



Description:



The Small chocolate dipping machine for Peanut Butter Oreos is designed for small scale chocolate industries,the width of the mesh conveyor is 180mm/300m and you could put 1 or 2 product per row,it's the best option for small scale chocolate enrobing machine if you have limited operation space and small production demand.The small chocolate enrober offer a precise and consistent process that ensures an end product with a consistent weight, uniform thickness and a perfect finish.



The chocolate dipping machine belt is 200 mm wide and features variable speed, traveling from 0.5 to 2 meters per minute,the food on the conveyor belt can go through the waterfall or curtain of the chocolate for fully or partly coating.Chocolate temperature is controlled by a sensitive digital thermostat with a one-tenth centigrade scale. Heating is achieved with a built in, fully electronic air circulation system.In this way,the chocolate enrober can create a consistent process that ensure the end product with consistent weight,uniform thickness and perfect finish.



The small chocolate dipping machine has 4 models with different melting tank capacity for customer to choose: PE8, PE15, PE30 and PE60. The PE15 Commercial chocolate enrobing machine tank capacity is 15kg chocolate per batch and 60kg per batch for PE60 chocolate enrober.There are two options for chocolate coating machine: 1. Chocolate enrobing machine with cooling tunnel. 2. Chocolate coating machine with cooling fan conveyor. The size of the cooling tunnel is 3.2m long,which is much bigger compared to the fan cooling conveyor and can cool the chocolate liquid fast,but the choclate enrobing machine with cooling fan conveyor is mostly used in shops, kitchen or at home. The chocolate enrobing machine with cooling tunnel is mainly designed for industrial purpose.



PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:



Model PE8 PE15 PE30 PE60
Capacity 15KG chocolate/batch 8KG chocolate/batch 25KG chocolate/batch 5KG chocolate/batch
Belt speed 2meter/min 2meter/min 2meter/min 2meter/min
Enrober mesh belt width 180mm 180mm 180mm 300mm
Tunnel PU belt widh 200mm 200mm 200mm 400mm
Heating method Electric heating Electric heating Electric heating Electric heating
Voltage 220V, single phase 220V, single phase 220V, single phase 220V, single phase
Power 1.8kw 2kw 2.8kw 3.1kw
Dimension 2000x5701350 2000x640x1350 3200x710x1350 3400x910x1400
Weight 80KG 100kg 190kg 240kg




Type 1: Chocolate enrobing machine + 3.2M Cooling tunnel

Small Chocolate Dipping Machine For Peanut Butter Oreos 0

Type 2: Chocolate dipping machine + 2M Fan cooling conveyor

Small Chocolate Dipping Machine For Peanut Butter Oreos 1




Features:



1.This 304 stainless steel chocolate Enrobing Lines is made up of the pouring ,vibrating and Auto temperature control into one.
2.It is quite flexible,and to be with compact conformation.
3.It is easy operation and convenient maintenance.
4.It is the main equipment which suitable for pouring and filling chocolate on-the-spot in food company, lab and shops.
Temperature range 1-10 degrees adjustable, US brand Copeland compressor 304 stainless steel material, 3MM thick stainless steel industrial pipe frame.Two layers insulation cotton inside stainless steel mirror decoration





Application:



Food coated by 304 stainless steel chocolate Enrobing Lines:



Small Chocolate Dipping Machine For Peanut Butter Oreos 2

Small Chocolate Dipping Machine For Peanut Butter Oreos 3





protien bar machine working with 304 stainless steel chocolate Enrobing Lines:





304 stainless steel chocolate Enrobing Lines for energy ball video:
