| Place of Origin | CHINA |
| Brand Name | iPAPA |
| Certification | CE |
| Model Number | PE15 |

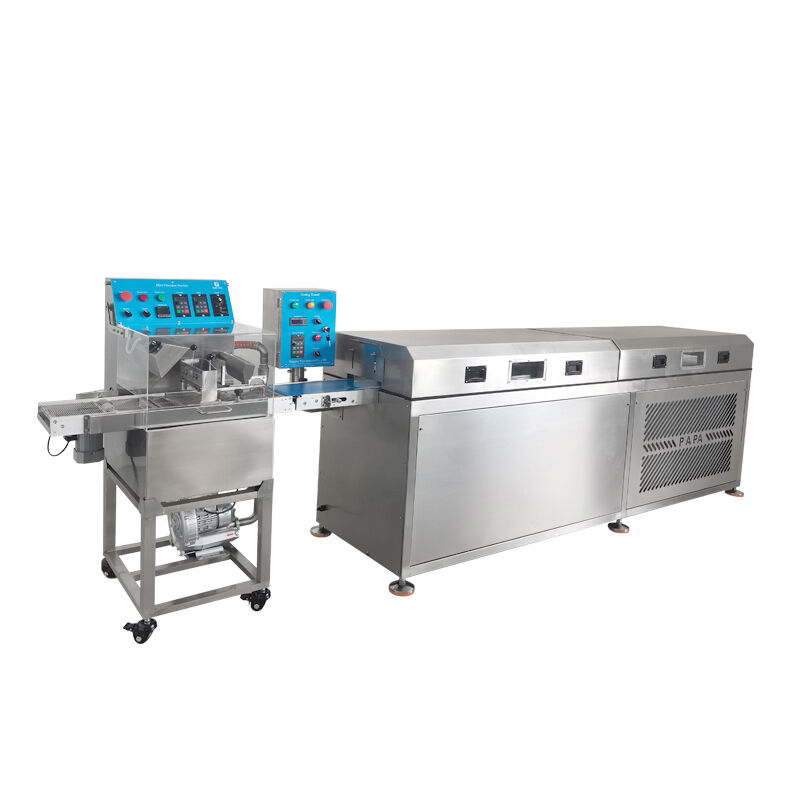

Small chocolate enrobing machine China
Description:
The small chocolate enrobing machine is designed for small scale chocolate industries,the width of the mesh conveyor is 180mm/300m and you could put 1 or 2 product per row,it's the best option for small scale chocolate enrobing machine if you have limited operation space and small production demand.The small chocolate enrober offer a precise and consistent process that ensures an end product with a consistent weight, uniform thickness and a perfect finish.
The commercial chocolate enrober machine has 4 models with different melting tank capacity for customer to choose: PE8, PE15, PE30 and PE60. The PE15 Commercial chocolate enrobing machine tank capacity is 15kg chocolate per batch and 60kg per batch for PE60 chocolate enrober.There are two options for chocolate coating machine: 1. Chocolate enrobing machine with cooling tunnel. 2. Chocolate coating machine with cooling fan conveyor. The size of the cooling tunnel is 3.2m long,which is much bigger compared to the fan cooling conveyor and can cool the chocolate liquid fast,but the choclate enrobing machine with cooling fan conveyor is mostly used in shops, kitchen or at home. The chocolate enrobing machine with cooling tunnel is mainly designed for industrial purpose.
The chocolate enrobing machine is most often used to coordinate with other food making machines in food production:
1. The chocolate coating machine is used after the cereal bar making machine to coat chocolate on snack bars;
2. The chocolate coating machine is used after the automatic encrusting machine to coat chocolate on cookies and stuffed pastries;
3. The chocolate coating machine is used after the protein bar making machine to coat chocolate on protien bars, cereal bars and energy bars.
4. The chocolate coating machine is also used after the protein energy ball making machine to coat chocolate on protein balls and energy balls.
PE8/PE15/PE30/PE60 Commercial small chocolate enrober specifications:
| Model | PE8 | PE15 | PE30 | PE60 |
|---|---|---|---|---|
| Capacity | 15KG chocolate/batch | 8KG chocolate/batch | 25KG chocolate/batch | 5KG chocolate/batch |
| Belt speed | 2meter/min | 2meter/min | 2meter/min | 2meter/min |
| Enrober mesh belt width | 180mm | 180mm | 180mm | 300mm |
| Tunnel PU belt widh | 200mm | 200mm | 200mm | 400mm |
| Heating method | Electric heating | Electric heating | Electric heating | Electric heating |
| Voltage | 220V, single phase | 220V, single phase | 220V, single phase | 220V, single phase |
| Power | 1.8kw | 2kw | 2.8kw | 3.1kw |
| Dimension | 2000x5701350 | 2000x640x1350 | 3200x710x1350 | 3400x910x1400 |
| Weight | 80KG | 100kg | 190kg | 240kg |
PE30 Commercial tunnel cooling chocolate enrobing machine demo video:
Food coated by PE15 Chocolate enrobing machine:
Application:
protien bar extruder with PE15 small chocolate enrobing line video:
PE15 Small chocolate enrobing line for energy ball video:
Optional devices:
Automatic protein bar extruding machine
Description:
The complete protein bar extruding line incudes mixer, encrusting machine, date bar cutter, tray arranger, conveyor, baking oven, flow wrapping machine. Optional equipment can be added to the date bar production line, such as maamoul stamping machine for making maamouls and mooncakes, ball roller machine for making energy balls and date balls, wire cut machine for making wire cut cookies and panda cookies,etc.
Specifications:
| Model | P160 |
|---|---|
| Capacity | 60 pcs/min |
| Application | Stuffed date bar, date cookies, date roll, fig newtons, date bites, etc. |
| Product weight | 10-250g |
| Casing and filling proportion | 1:9-10:0 |
| Voltage | 220V, single phase |
| Power | 4.5kw |
| Dimension | 4000*1650*1560mm |
| Weight | 650KG |
