Fully Automatic P190 Walnut-filled maamoul mooncake making encrusting machine
Description:

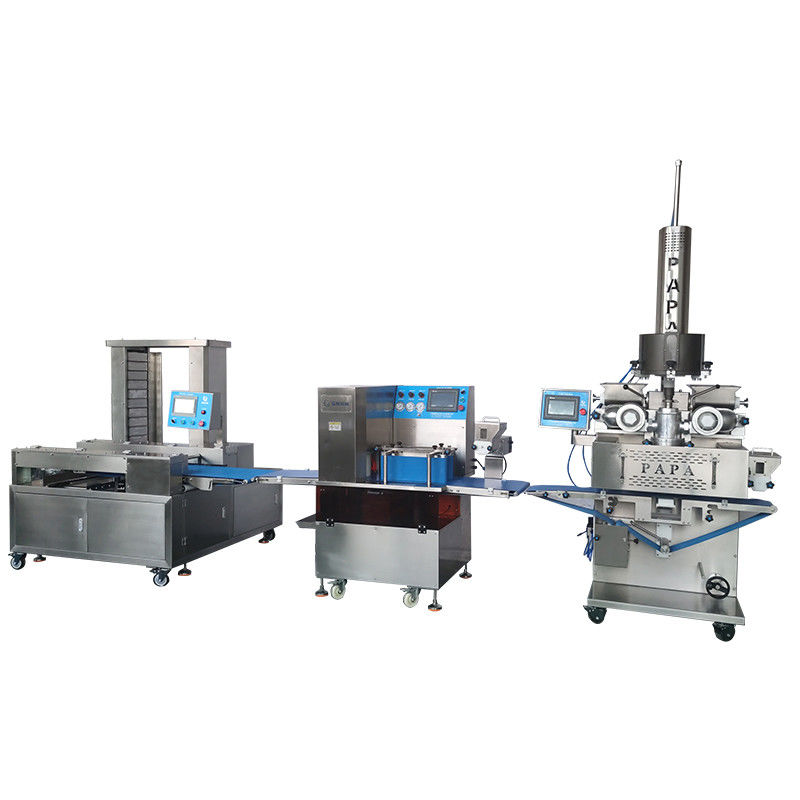

Papa fully automatic Date-filled cookie machine mooncake production line consisting of three machines: the P190 Automatic encrusting machine, Automatic mooncake stamping machine, and Automatic tray aligning machine. Here is a brief summary of each machine's function in the production line:
1.P190 Automatic Big Encrusting Machine:
Main machine used to make stuffed mooncake dough.
Capable of handling various stuffing materials such as fruit paste, jam, chocolate, sweet bean paste, meat, nuts, etc.
Responsible for encrusting the fillings within the dough to create the desired products.
2.CE Approved Arabic Date Cookie Stamping Machine:
Pattern and shape forming machine specifically designed for stamping mooncakes.
Automatically conveys the cut dough to the mooncake stamper.
The stamper senses the dough and imprints the desired patterns or shapes onto the mooncake dough.
3.Automatic Tray Alignment Machine:
Final machine in the production line that collects Arabic Date Cookies into baking trays in the required order.
Ensures that the mooncakes are aligned properly and ready for baking.
Prepares the finished products for the next stage, which may involve baking and packaging.
By utilizing these three machines in conjunction with each other, the production line can efficiently produce a large number of filled cookies, maamoul mooncakes, or Arabic Date Cookies with consistent quality and precision. The automation provided by these machines helps streamline the production process and increase output while maintaining product standards.
Specifications:
Model
P190
Capacity
40-85pcs/min
Application
mooncakes, maamouls, pineapple cakes, cookies, etc.
Product weight
10-1500g
Casing and filling proportion
1:9-10:0
Voltage
220V, single phase
Power
4.7kw
Dimension
6100*1180*1450mm
Weight
780KG
P190 VS. P160 Upgrade Points
Enhanced Hopper Design:
The hopper is lengthened to store more materials.
Stable pressure wheel assembly with a sealing ring to prevent oil leakage.
Improved Material Extrusion:
Thicker main shaft for stable extrusion of difficult-to-squeeze materials like jicama and ice skin.
Enhanced Power Transmission:
Power transmission parts are inside the long gearbox for better aesthetics and easier cleaning.
Increased Stability:
Fixed seat connection of the rectifier and hopper to prevent movement during operation.
Improved Material Discharge:
Material discharged from the bottom outlet for smoother flow, especially for liquids like soup and oil.
Enhanced Design and Cleaning:
Enlarged body with reduced accessories for easier cleaning.
Can produce products up to 1500 grams.
Improved Filling Tube Design:
Inner filling tube with Rheon technology for smooth material feeding without the need for a center ring.
Pump-up fixing method for easy removal without disassembling fixed mold head screws.
Advanced Stirring Technology:
Upgraded stirring technology for no material or oil leakage even after long-term use.
750W motor for stable and powerful operation.
Convenient Touch Screen Placement:
Touch screen positioned on the left for easier operation during debugging.
Quick Release Knife Plate:
Quick-release knife plate design for time-saving assembly and disassembly.
Enhanced Bearing and Conveyor Belt:
German Igus angle bearing for less friction and extended belt life.
Improved Cutter Design:
Metal processing structure for stable and low-noise operation.
Two motors for cutter lifting and opening/closing forces, allowing for adjustment on the touch screen.
Advanced Camera System:
Low-noise upper camera for stability and ease of adjustment.
Enhanced Product Features:
Capability to wrap a full double egg yolk with a quick-release structure.
Ability to squeeze solid filling materials like egg yolk and meat thread with the Y device installed.
These upgrades collectively enhance the functionality, efficiency, and performance of the P190 model compared to the P160 model, making it a more advanced and versatile machine for cookie and mooncake production.
Full automatic mooncake making machine demo video:
Food produced by mooncake making machine:
Application:
Mooncake making machine for maamoul:
Optional devices:
1. Automatic bar cutting machine
The automatic bar cutting machine is a separate machine controlled by PLC system with screen panel. It is placed right after the P160 Automatic encusting machine conveyor belt. The automatic bar cutting machine adopts teflon coated carbon steel cutting blade which vertically cut the food into pieces, the cutting speed and food length can be adjusted by control panel. The automatic bar cutting machine can make protein bar, fruit bar, filled date bar, round discs, date roll, cookies, etc.
2. Automatic ball roller machine
The automatic ball roller machine is a separate machine controlled by knob of frequency converter, It is also placed right after the P160 Automatic encrusting machine conveyor belt, this ball roller machine consists of stainless steel 304 structure and teflon coated aluminum rolling wheel. The rolling wheel is customized acccording to customer's ball diameter. The automatic ball roller machine can make energy ball, protein ball, cookie dough ball, etc.
