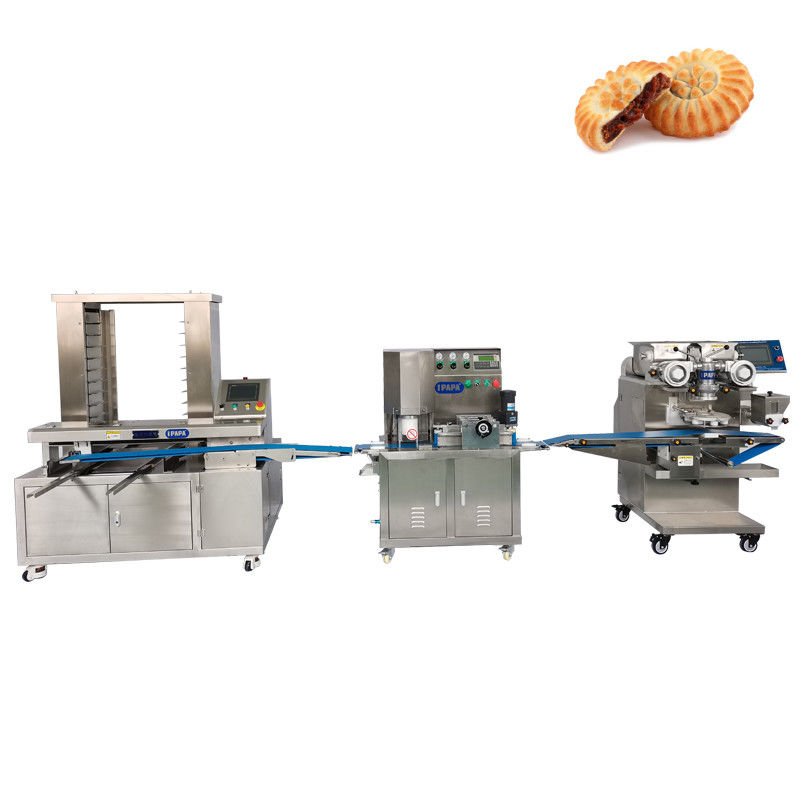

Papa Automatic Maamoul Cookies Production Line For Sales
  • Papa Automatic Maamoul Cookies Production Line For Sales
  • Papa Automatic Maamoul Cookies Production Line For Sales
  • Papa Automatic Maamoul Cookies Production Line For Sales
  • Papa Automatic Maamoul Cookies Production Line For Sales
  • Papa Automatic Maamoul Cookies Production Line For Sales

Papa Automatic Maamoul Cookies Production Line For Sales

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P160
Product Details
Capacity:
40-85 Pcs/min
Application:
Mooncake, Maamoul, Pineapple Cake, Cookies, Etc.
Product Weight:
10-250g
Casing And Filling Proportion:
1:9-10:0
Power:
4.7kw
Voltage:
220V
Dimention:
6100*1180*1450mm
Weight:
780KG
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
High Light:

Maamoul Cookies Production Line 40 Pcs/Min

,

Automatic Maamoul Cookies Production Line

,

Mooncake Making Equipment

Product Description

Papa Automatic maamoul cookies production line for Sales



Description:



The automatic maamoul cookies production line is a specialized setup used to mass-produce maamoul cookies, which are traditional Middle Eastern pastries filled with dates, nuts, or other sweet fillings. The mooncake production line is designed to automate and streamline the various stages of maamoul cookie production, from dough preparation to shaping, filling, baking, and packaging.


Dough Mixing System: The production line starts with a dough mixing system, which combines the ingredients for the maamoul dough, including flour, semolina, butter, sugar, yeast, and water. This system ensures thorough mixing and consistent dough quality.

Dough Resting and Conditioning: After mixing, the dough is allowed to rest and condition to improve its texture and workability. This step helps the dough to relax and makes it easier to handle during subsequent stages.

Dough Dividing and Shaping: The conditioned dough is then fed into a dividing and shaping machine. This machine portions the dough into equal-sized balls or pieces, ensuring uniformity in the final product. It may also shape the dough into round or oval discs to prepare for the filling process.

Filling System: The filling system is responsible for depositing the desired filling, such as dates or nuts, into the dough discs. This can be done using a piston or volumetric filler that accurately measures and deposits the fillings into the dough.

Maamoul Cookie Molding: Once the filling is added, the dough discs are shaped into their characteristic maamoul cookie form. This can be done using specially designed molds or pressing equipment that impresses decorative patterns onto the dough.

Baking: The shaped maamoul cookies are then transferred to baking trays or conveyor belts and passed through an oven for baking. The baking process is carefully controlled to achieve the desired texture, color, and taste of the cookies.

Cooling and Packaging: After baking, the maamoul cookies are cooled on cooling racks or conveyors to ensure they reach the appropriate temperature for packaging. Once cooled, the cookies are packaged in suitable containers, such as boxes, trays, or pouches, ready for distribution and sale.





Specifications:

Model P160
Capacity 40-85pcs/min
Application mooncakes, maamouls, pineapple cakes, cookies, etc.
Product weight 10-250g
Casing and filling proportion 1:9-10:0
Voltage 220V, single phase
Power 4.7kw
Dimension 6100*1180*1450mm
Weight 780KG



Papa Automatic Maamoul Cookies Production Line For Sales 0

Papa Automatic Maamoul Cookies Production Line For Sales 1

Papa Automatic Maamoul Cookies Production Line For Sales 2

Papa Automatic Maamoul Cookies Production Line For Sales 3





Full automatic Semolina Stuffed Cookies making machine demo video:





Food produced by Full automatic Semolina Stuffed Cookies making machine:



Papa Automatic Maamoul Cookies Production Line For Sales 4

Application:



Mooncake making machine for maamoul:





Optional devices:



1. Automatic bar cutting machine

The automatic bar cutting machine is a separate machine controlled by PLC system with screen panel. It is placed right after the P160 Automatic encusting machine conveyor belt. The automatic bar cutting machine adopts teflon coated carbon steel cutting blade which vertically cut the food into pieces, the cutting speed and food length can be adjusted by control panel. The automatic bar cutting machine can make protein bar, fruit bar, filled date bar, round discs, date roll, cookies, etc.

Papa Automatic Maamoul Cookies Production Line For Sales 5



2. Automatic ball roller machine

The automatic ball roller machine is a separate machine controlled by knob of frequency converter, It is also placed right after the P160 Automatic encrusting machine conveyor belt, this ball roller machine consists of stainless steel 304 structure and teflon coated aluminum rolling wheel. The rolling wheel is customized acccording to customer's ball diameter. The automatic ball roller machine can make energy ball, protein ball, cookie dough ball, etc.

Papa Automatic Maamoul Cookies Production Line For Sales 6
