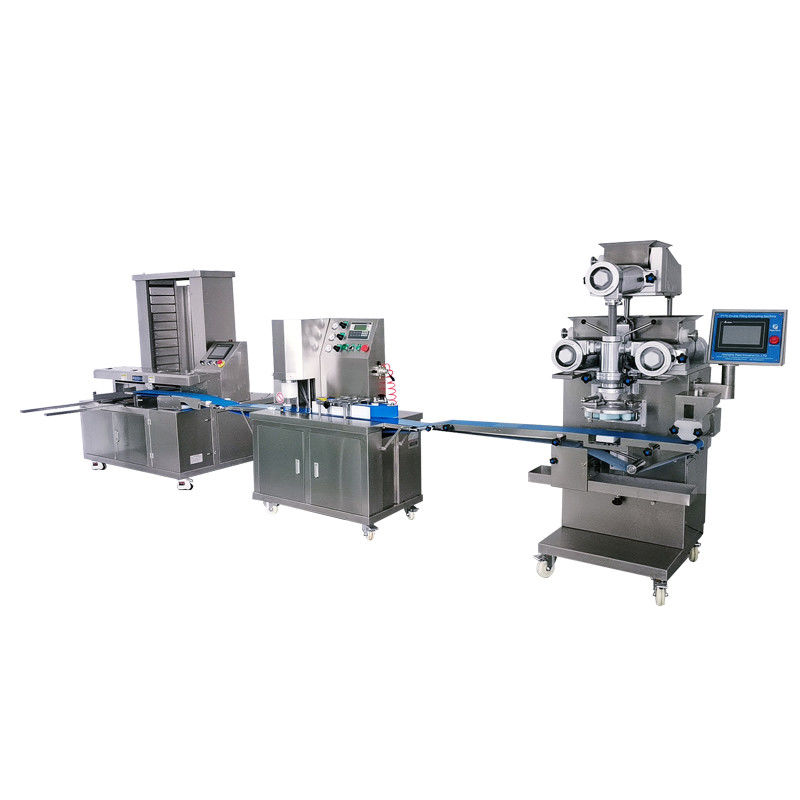

Papa hot selling Mung Bean Cake Production Line
  • Papa hot selling Mung Bean Cake Production Line
  • Papa hot selling Mung Bean Cake Production Line
  • Papa hot selling Mung Bean Cake Production Line
  • Papa hot selling Mung Bean Cake Production Line
  • Papa hot selling Mung Bean Cake Production Line

Papa hot selling Mung Bean Cake Production Line

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P160
Product Details
Capacity:
40-85 Pcs/min
Application:
Mooncake, Maamoul, Pineapple Cake, Cookies, Etc.
Product Weight:
10-250g
Casing And Filling Proportion:
1:9-10:0
Power:
4.7kw
Voltage:
220V
Dimention:
6100*1180*1450mm
Weight:
780KG
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Product Description

Papa hot selling Mung Bean Cake Production Line



Description:



Mung bean cakes are a summer dessert and are traditionally eaten during the Dragon Boat Festival, which is usually held in early summer. This delicious dessert can be prepared using our P160 maamoul cookies production line, which consists of P160 encrusting machine, PM101 embossing machine and PM102 tray arranger machine.



The main machine in the line is P160, which is suitable for products less than 180 grams, especially products less than 50 grams, with a high output of 80-120 per minute. We use sturdy and hygienic stainless steel cutters that meet your sanitary requirements.

With an easy-to-use color touch screen, data for up to 99 recipes can be stored on the P160 with high production capacity and superior production management. Inside the filling feeder, we have stable feeding rollers to keep the weight of each product the same, which could affect the reflux resistance when transferring raw materials. For the oscillating structure of the cutter, there are upper, middle and lower three cutting points that can be chosen to meet your different product requirements. To improve the abrasion resistance of the gear, we invented a double chain structure to ensure the gear runs smoothly.

It is used with PM101 stamping machine and PM102  tray arranging machine to complete this amazing mung bean cake production line, which saves a lot of labor costs and increases productivity.


Specifications:

Model P160
Capacity 40-85pcs/min
Application mooncakes, maamouls, pineapple cakes, cookies, etc.
Product weight 10-250g
Casing and filling proportion 1:9-10:0
Voltage 220V, single phase
Power 4.7kw
Dimension 6100*1180*1450mm
Weight 780KG



Papa hot selling Mung Bean Cake Production Line 0

Papa hot selling Mung Bean Cake Production Line 1

Papa hot selling Mung Bean Cake Production Line 2

Papa hot selling Mung Bean Cake Production Line 3





Full automatic mooncake making machine demo video:





Food produced by mooncake making machine



Papa hot selling Mung Bean Cake Production Line 4

Application:



Mooncake making machine for maamoul:





Optional devices:



1. Automatic bar cutting machine

The automatic bar cutting machine is a separate machine controlled by PLC system with screen panel. It is placed right after the P160 Automatic encusting machine conveyor belt. The automatic bar cutting machine adopts teflon coated carbon steel cutting blade which vertically cut the food into pieces, the cutting speed and food length can be adjusted by control panel. The automatic bar cutting machine can make protein bar, fruit bar, filled date bar, round discs, date roll, cookies, etc.

Papa hot selling Mung Bean Cake Production Line 5



2. Automatic ball roller machine

The automatic ball roller machine is a separate machine controlled by knob of frequency converter, It is also placed right after the P160 Automatic encrusting machine conveyor belt, this ball roller machine consists of stainless steel 304 structure and teflon coated aluminum rolling wheel. The rolling wheel is customized acccording to customer's ball diameter. The automatic ball roller machine can make energy ball, protein ball, cookie dough ball, etc.

Papa hot selling Mung Bean Cake Production Line 6
