P401 Full Automatic Granola Bar Manufacturing Machine
  • P401 Full Automatic Granola Bar Manufacturing Machine
  • P401 Full Automatic Granola Bar Manufacturing Machine
  • P401 Full Automatic Granola Bar Manufacturing Machine
  • P401 Full Automatic Granola Bar Manufacturing Machine

P401 Full Automatic Granola Bar Manufacturing Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P401
Product Details
Capacity:
100-250KG/H
Power:
5kw
Weight:
1200KG
Voltage:
380V, Three Phase
Dimention:
4800*920*1200mm
Cooling Type:
Cooling Fans
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Granola Bars, Cereal Bars, Muesli Bars, Peanut Bars,rice Bars, Etc.
High Light:

Granola Bar Forming Machine P401

,

Automatic Granola Bar Machine

,

Granola Bar Making Machine Three Phase

Product Description

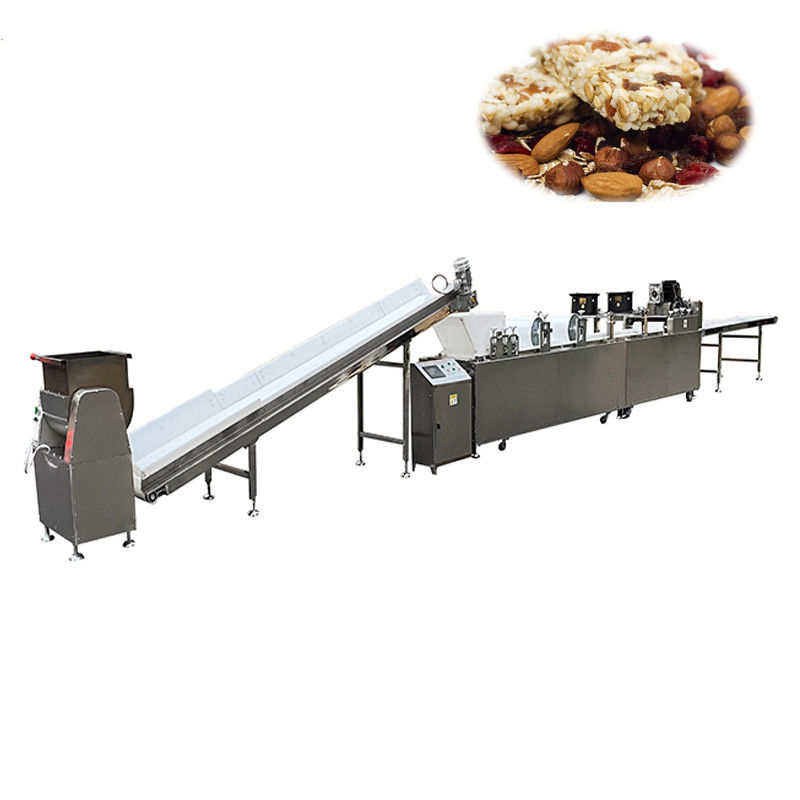

P401 full automatic granola bar manufacturing machine
Description:
P401 full automatic granola bar manufacturing machine is designed to make bars based on cripsy rice, puffed rice, cereals, granolas, nuts, seeds, dry fruits, protein powder, grounded nut powders or energy elements. So the slab bar forming machine can make puffed rice bar, rice crispy/rice krispies, ceral bars, granola bars, muesli bars, nut bars, seed bars, dry fruit bars, protein bars, power bars, peanut bars, sesame snaps, and other energy bars.

P401 full automatic granola bar manufacturing machine uses slab rolling technology to roll the material mixture into a whole slab with desired height and width, then the slab is cutted by the cross cutting knives to be each uniform sized bars. The complete slab bar making machine includes mixture feeding hopper, double rollers,  double cooling fans, cross cutting unit, conveyor and control box. The cooling fans can be replaced by cooling tunnel for better cooling performance and cooling sticky bars, and the cross cutting unit can be replaced by bar separating system to separate bars from each other for chocolte coating purpose, this will make the slab bar making machine a fully automatic slab bar machine.

Complete slab bar line consists of sugar boiler, material mixer, material lifting conveyor, P401 slab bar forming machine, packing machine. Fully automatic slab bar line uses full automatic cooking system ( electromagnetizing sugar boiler, sugar oil holding tank, sugar sprayer, lifting conveyor and spiral continuous mixer ), and full automatic bar separating system, this depends on customer's requirements. The packing machine can be a separated unit bar packing machine or a full automatic bar sorting and packaging line.

Specifications:

ModelP401
Capacity100-250 KG/H
Cooling typeCooling fans
Voltage380V, three phase
Power5kw
Dimension

4800*920*1200mm

Weight1200KG


P401 Full Automatic Granola Bar Manufacturing Machine 0
P401 Automatic slab bar forming machine demo video:


P401 Full Automatic Granola Bar Manufacturing Machine 1
Cooker, mixer and material conveyor:
P401 Full Automatic Granola Bar Manufacturing Machine 2
Bars produced by P401 automatic granola bar manufacturing machine:
P401 Full Automatic Granola Bar Manufacturing Machine 3

Can the slab bar forming line makes chocolate bar?
There are different kinds of chocolate bars: 1. natural chocolate bar; 2. chocolate coated candy bar; 3. chocolate mixed food bar. Our slab bar forming line can only make the chocolate mixed food bar, the chocolate coated candy bar need the chocolate candy bar machine, the natural chocolate bar need chocolate moulding machine or chocolate bar cutting machine, please send us your bar details to check.

Application:

New model slab bar making machine video:



Old model slab bar making machine in customer's factory video:







Optional device:

1. Bar separating system
Bar separating system is used in the slab bar production line for bar separating from each other, so that each bar will has enough distance to be chocolate coated or packed by full automatic packaging line.

P401 Full Automatic Granola Bar Manufacturing Machine 4


P401 Full Automatic Granola Bar Manufacturing Machine 5

Cooling tunnel with bar separating system video:



2. Chocolate enrobing line
The Chocolate enrobing line is used after the slab bar line for chocolate coating outside the bar or on the bottom of the bar. The separated bars will be transfered to the chocolate enrober and the long cooling tunnel will cool down the chocolate bars before entering the flow wrapping machine.
P401 Full Automatic Granola Bar Manufacturing Machine 6
Chocolate enrobing line for energy bar video:



3. Full automatic sorting and flow wrapping line
The full automatic sorting and flow wrapping line is used in the production lines like slab bar production line, protein bar production line or chocolate production line to do automatically bag flow wrap packaging. This section has no manual operation, all processes are done by the machine.
P401 Full Automatic Granola Bar Manufacturing Machine 7
Bar sorting and flow wrappling line video:



Automatic granola bar manufacturing machine is the most mature product made by Papa Industrial, It has different names in different countries, it is often called cereal bar making machine and granola bar making machine in USA and European countries, It is often called peanut candy bar making machine in India, or sesame snaps making machine and muesli bar making machine in Middle East, etc. No matter it's a cereal bar prodction line, granola bar production line or energy bar production line, they are all slab bar forming line, only some parts of the slab bar line need to be customized.

Welcome to contact us if you are interested in our multifunctional energy bar making machine!
