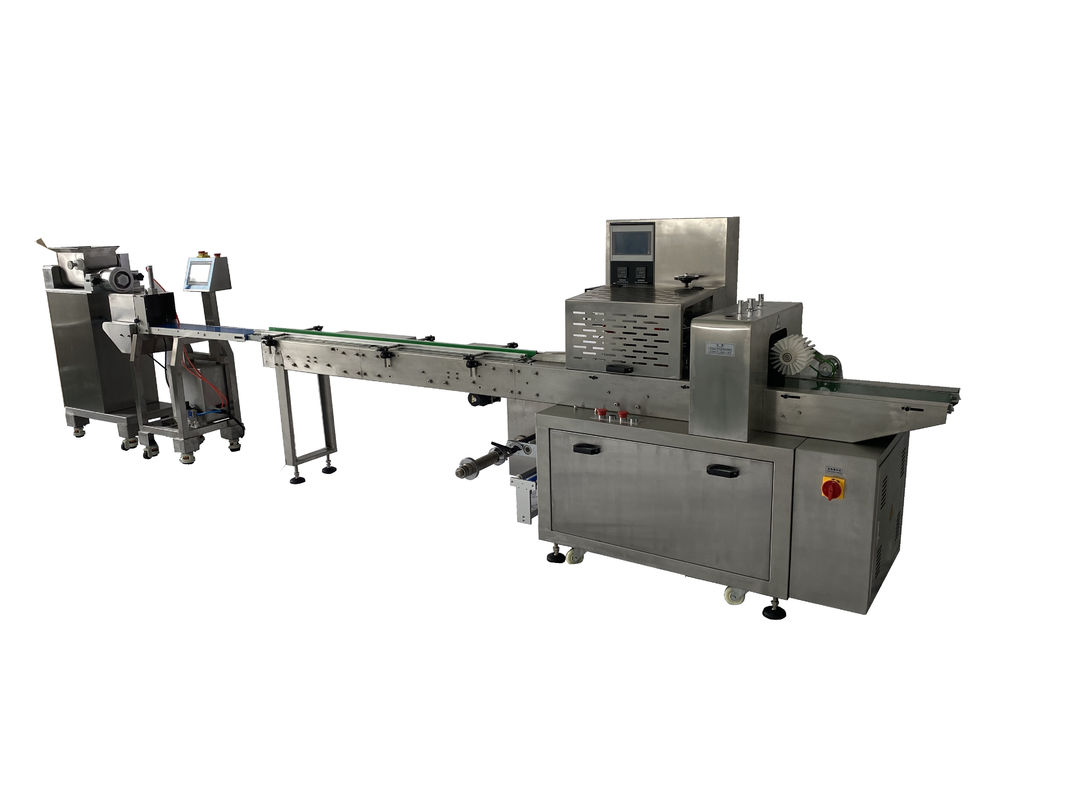

Full Automatic Energy Bar Flow Wrapper With Feeding
  • Full Automatic Energy Bar Flow Wrapper With Feeding
  • Full Automatic Energy Bar Flow Wrapper With Feeding
  • Full Automatic Energy Bar Flow Wrapper With Feeding

Full Automatic Energy Bar Flow Wrapper With Feeding

Place of Origin China
Brand Name ipapa
Certification CE
Model Number PA-250
Product Details
Name:
Full Automatic No Empty Bag Flow Wrapping Machine
Power (kw):
3KW
Size (L*W*H Mm):
3400*830*1350
Packing Speed (bag/min):
35-150
Packaging Film Width (mm):
90-240
Sealing Pressure (Newton/mm2):
15
Packaging Film Material:
OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP、Aluminum Film Etc.
High Light:

Automatic Energy Bar Flow Wrapper

,

Automatic Feeding Flow Wrapper 3KW

,

Snack Bar Automatic Flow Wrap Machine

Product Description

Full automatic energy bar flow wrapper with automatic feeding



Full automatic energy bar flow wrapper with automatic feeding is a state-of-the-art high-speed flow wrapper with a user-friendly human /machine interface control that allows for storing product settings and is very easy to learn which cuts down on operator training.The automatic snack bar wrapping machine is loaded with great features that help packagers take their production capabilities to a whole new level. Low noise servo motor driving system for all three independent servo motors.



This machine almost thinks for itself with a sensing function on each servo that prevents products from being damaged if misaligned and a standard no product, no bag (Product detector) feature to reduce film waste.



Flow wrapping machine(film downside wrapping)



Feature:

1) The main control circuit adopts inverter control, PLC touch screen display, and provided the good interface of person and machine. The machine operation is concentrated and intuitive;

2) The whole machine adopts dual frequency converter control, wide frequency conversion range, large speed adjustment range, which permits stepless variation. Packaging speed can be set by the production speed of the production line, and the matching is perfect.

3) After setting the packaging film length and the packing bag length, they are automatically controlled and tracked by a high-sensitivity electric eye. The bag length is accurate and not need to adjust by manual.

4) Each sealing temperature is independently controlled, suitable for a variety of packaging materials, and the sealing is beautiful and firm.

5) The printer can be configured according to the needs of users, so that the printing of production date, production batch number, etc. can be synchronized with the packaging..

Specifications and technical parameters



Packing speed (bag/min)

35-150



Packaging film width (mm)

90-240



Bag size (mm) Length(flat bag)

85-300



Width

30-100



Height

5-30



Total power (kw)

3.0



Main motor power (kw)

0.75+0.75



Heating power (kw)

1.2



Machine net weight (kg)

600



Machine dimensions (length * width * height) (mm)

1640×830×1350



Machine noise (dB)

≤78dB



Qualified rate of bagging (percentage)

≥98%



Sealing pressure (Newton/mm2)

15



Voltage 220V 50Hz
Packaging film material OPP,PE,PVC,OPP/CPP,PT/PE,KOP/CPP,Aluminum film etc.


Full Automatic Energy Bar Flow Wrapper With Feeding 0
Full Automatic Energy Bar Flow Wrapper With Feeding 1



Full Automatic Energy Bar Flow Wrapper With Feeding 2

Papa Industrial mainly uses the flow wrapping machine to pack snack bars, PA250 model is the ideal protein bar wrapping machine, snack bar wrapping machine, fruit bar wrapping machine, candy bar wrapping machine, cereal bar wrapping machine, chocolate bar wrapping machine, and granola bar packaging machine, Papa Industrial also uses the flow wrapping machine to pack cookies and maamouls. No matter a flow wrapping machine or a fully automatic flow wrapping production line, Papa Industrial can provide you turnkey solution for food packaging ! Weclome to contact us for more information !
