Automatic P401 Cereal Bar Processing Line
  • Automatic P401 Cereal Bar Processing Line
  • Automatic P401 Cereal Bar Processing Line

Automatic P401 Cereal Bar Processing Line

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P401
Product Details
Capacity:
100-250KG/H
Power:
5kw
Weight:
1200KG
Voltage:
380V, Three Phase
Dimention:
4800*920*1200mm
Cooling Type:
Cooling Fans
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Granola Bars, Cereal Bars, Muesli Bars, Peanut Bars,rice Bars, Etc.
High Light:

Cereal Bar Production Line P401

,

Automatic Cereal Bar Production Line

,

Cereal Making Machine 1200mm

Product Description

Automatic P401 cereal bar processing line



Description:



The Automatic P401 cereal bar processing line is designed for large production capacity on making bars based on cripsy rice, puffed rice, cereals, granolas, nuts, seeds, dry fruits, protein powder, grounded nut powders or energy elements.



The P401 automatic cereal bar processing line uses the slab rolling technology that rolls the mixture into big piece of slab with desired height and width and then cut to the small piece with with desired width and length by the knives.The cereal mixture can be continuously mixed with a mateiral mixer and then be delivered to the material lifting conveyor to the feeding hoppper of the cereal bar machine and then formed to a continuous product slab by the double rollers,finally cut to the small size of the bar we want.Usually the automatic creal bar machine will work with our sugar cooker,material mixer and material lifting conveyor to set up a automatic cereal bar production line.



Specifications:



Model P401
Capacity 100-250 KG/H
Cooling type Cooling fans
Voltage 380V, three phase
Power 5kw
Dimension

4800*920*1200mm

Weight 1200KG



Automatic P401 Cereal Bar Processing Line 0

P401 Automatic slab bar forming machine demo video:



Automatic P401 Cereal Bar Processing Line 1

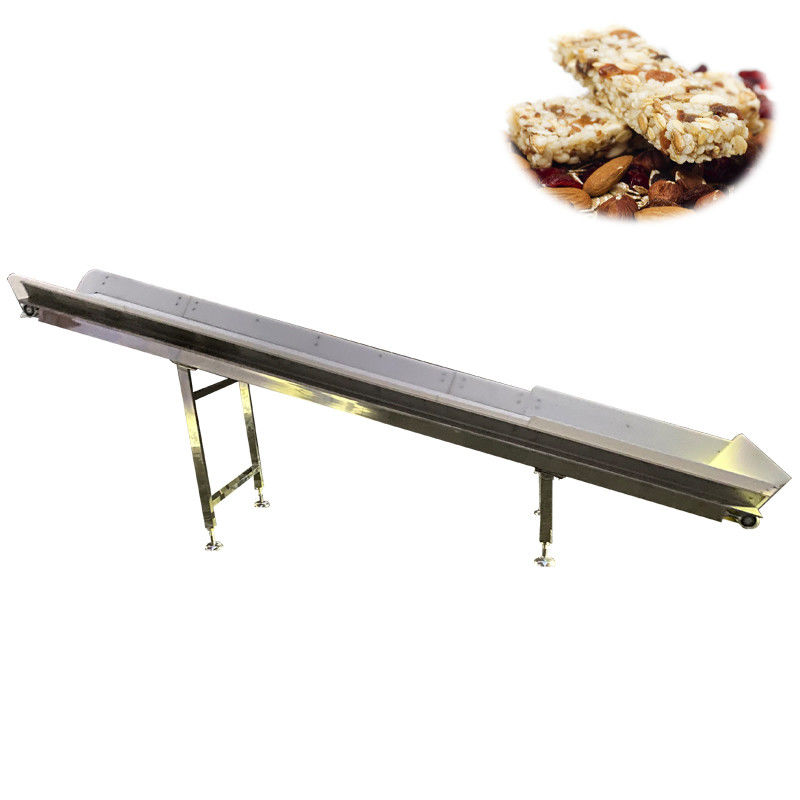

Cooker, mixer and material conveyor:

Automatic P401 Cereal Bar Processing Line 2

Bars produced by P401 Slab bar forming machine:

Automatic P401 Cereal Bar Processing Line 3

Application:



New model slab bar making machine video:





Old model slab bar making machine in customer's factory video:









Optional device:



1. Bar separating system

Bar separating system is used in the slab bar production line for bar separating from each other, so that each bar will has enough distance to be chocolate coated or packed by full automatic packaging line.



Automatic P401 Cereal Bar Processing Line 4





Automatic P401 Cereal Bar Processing Line 5



Cooling tunnel with bar separating system video:





2. Chocolate enrobing line

The Chocolate enrobing line is used after the slab bar line for chocolate coating outside the bar or on the bottom of the bar. The separated bars will be transfered to the chocolate enrober and the long cooling tunnel will cool down the chocolate bars before entering the flow wrapping machine.

Automatic P401 Cereal Bar Processing Line 6

Chocolate enrobing line for energy bar video:





3. Full automatic sorting and flow wrapping line

The full automatic sorting and flow wrapping line is used in the production lines like slab bar production line, protein bar production line or chocolate production line to do automatically bag flow wrap packaging. This section has no manual operation, all processes are done by the machine.

Automatic P401 Cereal Bar Processing Line 7

Bar sorting and flow wrappling line video:





Slab bar forming machine is the most mature product made by Papa Industrial, It has different names in different countries, it is often called cereal bar making machine and granola bar making machine in USA and European countries, It is often called peanut candy bar making machine in India, or sesame snaps making machine and muesli bar making machine in Middle East, etc. No matter it's a cereal bar prodction line, granola bar production line or energy bar production line, they are all slab bar forming line, only some parts of the slab bar line need to be customized.



Welcome to contact us if you are interested in our multifunctional energy bar making machine!
