Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine
  • Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine
  • Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine
  • Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine

Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P401
Product Details
Capacity:
100-250KG/H
Power:
5kw
Weight:
1200KG
Voltage:
380V, Three Phase
Dimention:
4800*920*1200mm
Cooling Type:
Cooling Fans
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Granola Bars, Cereal Bars, Muesli Bars, Peanut Bars,rice Bars, Etc.
High Light:

Automatic Valley Cereal Bar Cutting Machine

,

Valley Granola Bar Making Machine

,

380V Cereal Making Machine

Product Description

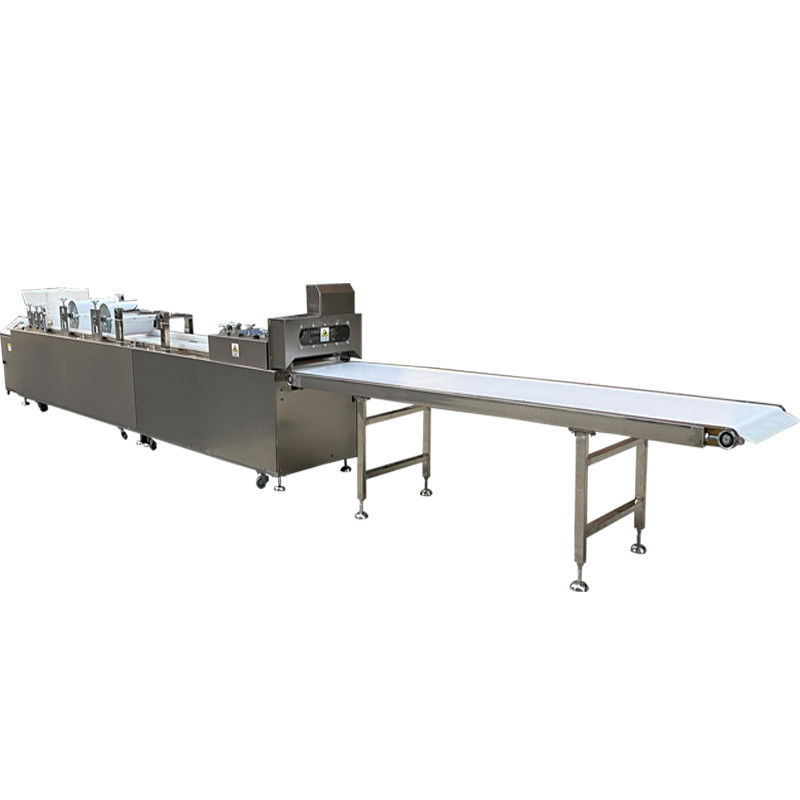

Automatic Nature Valley Bar machine/Valley bar forming and cutting machine



Description:



The automatic Nature Valley Bar machine/Valley bar forming and cutting machine uses a PLC operating system and an advanced mechanical structure to achieve fully automated production - continuous feeding, automatic flattening, automatic vertical cutting and cross-cutting,which can be widely used in cereal bar, muesli bar, granola bar, energy bar, nut bar, seed bar, protein bar, nutrition bar, rice bar, nougat candy bar making.



Specifications:



Model P401
Capacity 100-250 KG/H
Cooling type Cooling fans
Voltage 380V, three phase
Power 5kw
Dimension

4800*920*1200mm

Weight 1200KG



Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine 0

P401 Automatic slab bar forming machine demo video:





Model P401 P402 P403
Capacity 150-250KG 250-350KG 300-800KG
Power 5KW 5.5KW 10KW
Voltage 380V 3 phase 380V 3 phase 380V 3 phase
Dimension 4800*920*1200mm 6000*920*1200mm 12000x1400x1300mm
Weight 1200KG 1500KG 1800KG
Cooling type Fan cooling Fan cooling Refrigerator


Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine 1

Cooker, mixer and material conveyor:

Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine 2

Bars produced by P401 Slab bar forming machine:

Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine 3

Application:



New model slab bar making machine video:





Old model slab bar making machine in customer's factory video:









Optional device:



1. Bar separating system

Bar separating system is used in the slab bar production line for bar separating from each other, so that each bar will has enough distance to be chocolate coated or packed by full automatic packaging line.



Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine 4





Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine 5



Cooling tunnel with bar separating system video:





2. Chocolate enrobing line

The Chocolate enrobing line is used after the slab bar line for chocolate coating outside the bar or on the bottom of the bar. The separated bars will be transfered to the chocolate enrober and the long cooling tunnel will cool down the chocolate bars before entering the flow wrapping machine.

Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine 6

Chocolate enrobing line for energy bar video:





3. Full automatic sorting and flow wrapping line

The full automatic sorting and flow wrapping line is used in the production lines like slab bar production line, protein bar production line or chocolate production line to do automatically bag flow wrap packaging. This section has no manual operation, all processes are done by the machine.

Automatic Nature Valley Bar Machine / Valley Bar Forming And Cutting Machine 7

Bar sorting and flow wrappling line video:





Slab bar forming machine is the most mature product made by Papa Industrial, It has different names in different countries, it is often called cereal bar making machine and granola bar making machine in USA and European countries, It is often called peanut candy bar making machine in India, or sesame snaps making machine and muesli bar making machine in Middle East, etc. No matter it's a cereal bar prodction line, granola bar production line or energy bar production line, they are all slab bar forming line, only some parts of the slab bar line need to be customized.



Welcome to contact us if you are interested in our multifunctional energy bar making machine!
