Cereal Bar Forming Machine
>
|
| Place of Origin | CHINA |
| Brand Name | iPAPA |
| Certification | CE |
| Model Number | P401 |

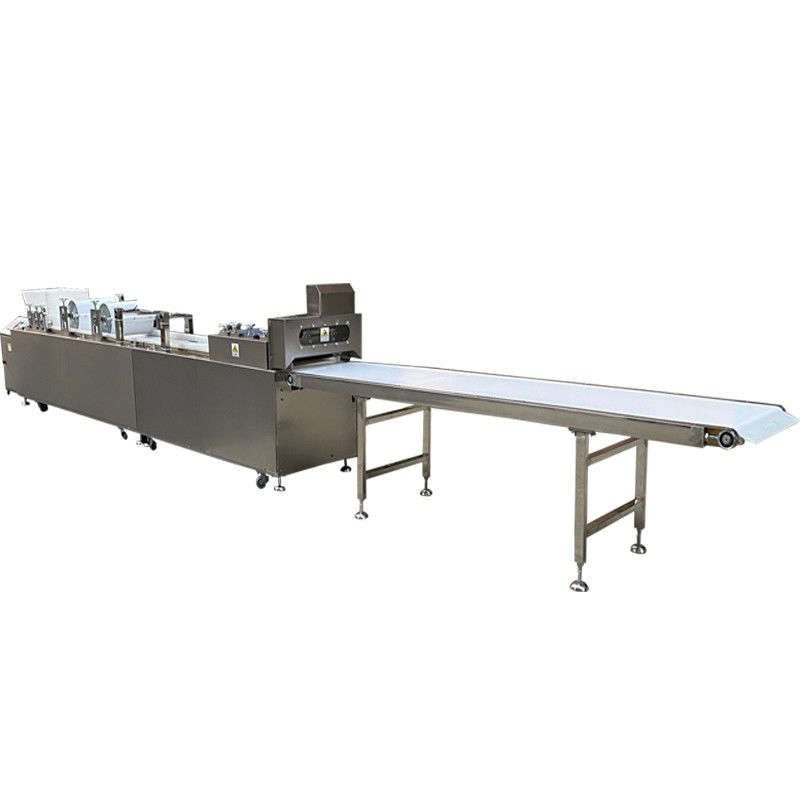

P401 fully automatic Peanut Brittle Bar making machine
Description:
The P401 Peanut Brittle Bar Production Line is mainly desgigned to cut Peanut Candy, Sesame Candy, Nuts Candy, Melon Seeds Cake and Crispy Black Rice Cake..It has the advantage of large production, less manpower, less waste, easy operation and maintenance etc.
The P401 automatic peanut brittle bar machine uses the slab rolling technology that rolls the mixture into big piece of slab and cut to the small piece with with desired width and length by the vertical and horizontal cutting device.The cereal bar making machine includes feeding hopper, double rollers, cooling fans, cutting unit, conveyor and control box.The roller width is 450mm and the Max cutting speed can reach 30 times per minute,which can ensure the production speed 16,000 pieces of bar per hour.
Specifications:
| Model | P401 |
|---|---|
| Capacity | 100-250 KG/H |
| Cooling type | Cooling fans |
| Voltage | 380V, three phase |
| Power | 5kw |
| Dimension |
4800*920*1200mm |
| Weight | 1200KG |
P401 Automatic slab bar forming machine demo video:
Cooker, mixer and material conveyor:
Bars produced by P401 Slab bar forming machine:
Application:
New model slab bar making machine video:
Old model slab bar making machine in customer's factory video:
