CE certificated Nuts Cereal Bar Making machine
  • CE certificated Nuts Cereal Bar Making machine
  • CE certificated Nuts Cereal Bar Making machine

CE certificated Nuts Cereal Bar Making machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P401
Product Details
Capacity:
100-250KG/H
Power:
5kw
Weight:
1200KG
Voltage:
380V, Three Phase
Dimention:
4800*920*1200mm
Cooling Type:
Cooling Fans
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Granola Bars, Cereal Bars, Muesli Bars, Peanut Bars,rice Bars, Etc.
Product Description

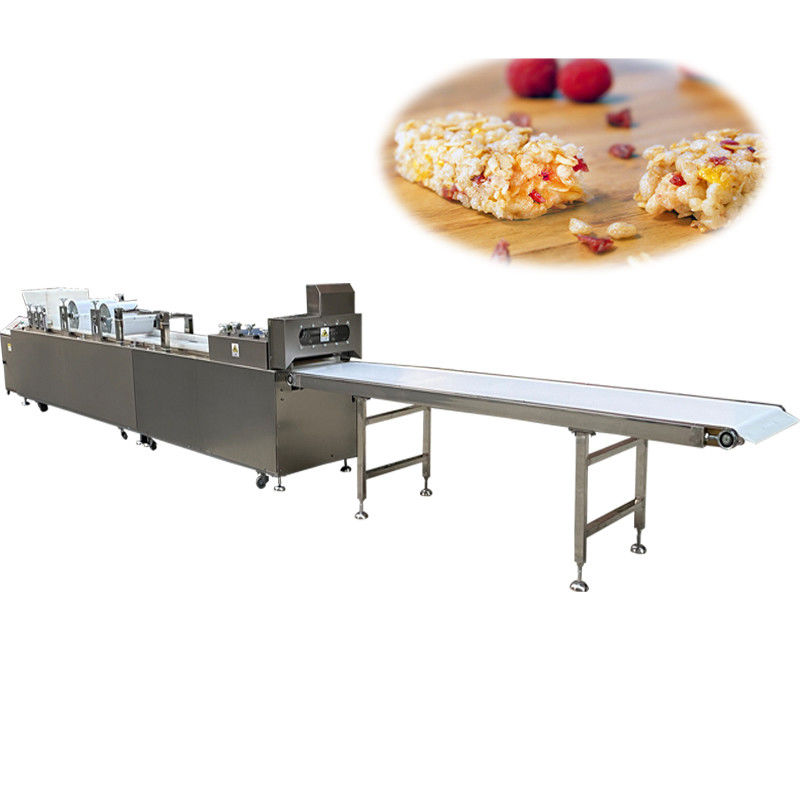

CE certificated Nuts Cereal Bar Making machine



Description:



The CE certificated Nuts Cereal Bar Making machine is designed for large production capacity on making bars based on cripsy rice, puffed rice, cereals, granolas, nuts, seeds, dry fruits, protein powder, grounded nut powders or energy elements,such as puffed rice bar, rice crispy/rice krispies, ceral bars, granola bars, muesli bars, nut bars, seed bars, dry fruit bars, protein bars, power bars, peanut bars, sesame snaps, and other energy bars.



The hopper of the Nuts Cereal Bar   Production Line is a scraper, auger and feeding roller structure, independent motor, frequency conversion speed regulation, uniform feeding, without manual intervention.The conveying and cutting power of the Nuts Cereal Bar cutting machine are double servo motors, stable cutting, accurate size.



The P401 automatic cereal bar machine  uses the slab rolling technology that rolls the mixture into big piece of slab with desired height and width and then cut to the small piece with with desired width and length by the vertical and horizontal cutting device.



Specifications:



Model P401
Capacity 100-250 KG/H
Cooling type Cooling fans
Voltage 380V, three phase
Power 5kw
Dimension

4800*920*1200mm

Weight 1200KG



CE certificated Nuts Cereal Bar Making machine 0

P401 Automatic slab bar forming machine demo video:



CE certificated Nuts Cereal Bar Making machine 1

Cooker, mixer and material conveyor:

CE certificated Nuts Cereal Bar Making machine 2

Bars produced by P401 Slab bar forming machine:

CE certificated Nuts Cereal Bar Making machine 3

Application:



New model slab bar making machine video:





Old model slab bar making machine in customer's factory video:
