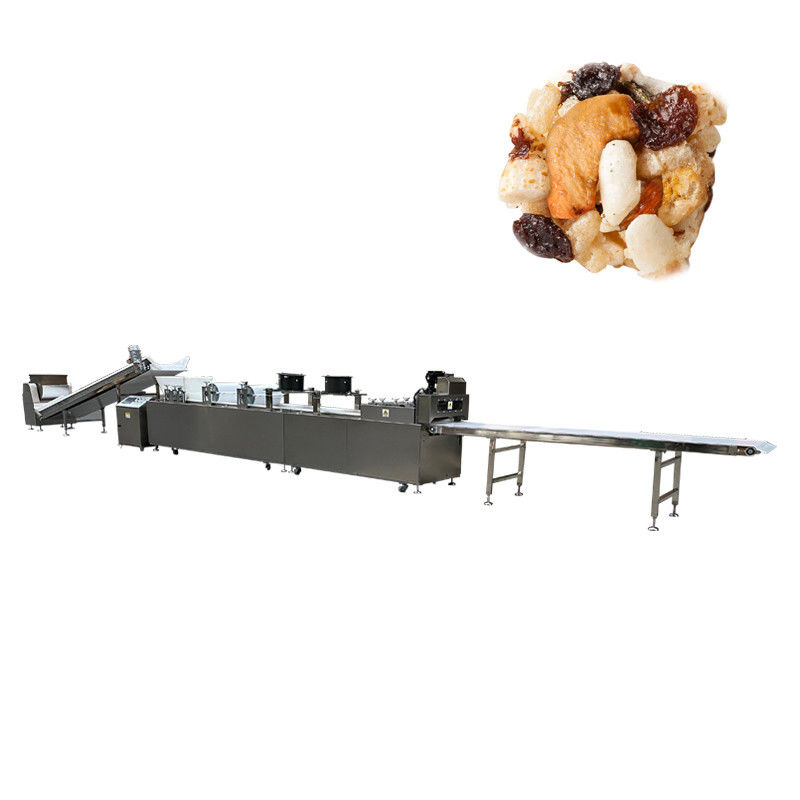

Automatic P401 nutrition bar making machine
  • Automatic P401 nutrition bar making machine
  • Automatic P401 nutrition bar making machine

Automatic P401 nutrition bar making machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P401
Product Details
Capacity:
100-250KG/H
Power:
5kw
Weight:
1200KG
Voltage:
380V, Three Phase
Dimention:
4800*920*1200mm
Cooling Type:
Cooling Fans
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Granola Bars, Cereal Bars, Muesli Bars, Peanut Bars,rice Bars, Etc.
Product Description

Automatic P401 nutrition bar making machine



Description: P401 Crispy crunch candy bar line slab bar forming machine

Automatic P401 nutriton bar making machine is designed to make bars based on cripsy rice, puffed rice, cereals, granolas, nuts, seeds, dry fruits, protein powder, grounded nut powders or energy elements.The roller width of cereal bar making machine is 450mm and the Max cutting speed is 30 times per minute,the production speed is 300 pcs per minute if you can make the cereal bar width 45mm.



The P401 nutrition bar forming machine can be widely used in making cereal bars, granola bars, muesli bars, nut bars, seed bars, dry fruit bars, protein bars, power bars, peanut bars, sesame snaps, and other energy bars.



Specifications:



Model P401
Capacity 100-250 KG/H
Cooling type Cooling fans
Voltage 380V, three phase
Power 5kw
Dimension

4800*920*1200mm

Weight 1200KG



Automatic P401 nutrition bar making machine 0

P401 Automatic slab bar forming machine demo video:





Model P401 P402 P403
Capacity 150-250KG 250-350KG 300-800KG
Power 5KW 5.5KW 10KW
Voltage 380V 3 phase 380V 3 phase 380V 3 phase
Dimension 4800*920*1200mm 6000*920*1200mm 12000x1400x1300mm
Weight 1200KG 1500KG 1800KG
Cooling type Fan cooling Fan cooling Refrigerator


Automatic P401 nutrition bar making machine 1

Cooker, mixer and material conveyor:

Automatic P401 nutrition bar making machine 2

Bars produced by P401 Slab bar forming machine:

Automatic P401 nutrition bar making machine 3

Application:



New model slab bar making machine video:





Old model slab bar making machine in customer's factory video:









Slab bar forming machine is the most mature product made by Papa Industrial, It has different names in different countries, it is often called cereal bar making machine and granola bar making machine in USA and European countries, It is often called peanut candy bar making machine in India, or sesame snaps making machine and muesli bar making machine in Middle East, etc. No matter it's a cereal bar prodction line, granola bar production line or energy bar production line, they are all slab bar forming line, only some parts of the slab bar line need to be customized.



Welcome to contact us if you are interested in our multifunctional energy bar making machine!
