P401 Full Automatic Granola Bar making Machine
  • P401 Full Automatic Granola Bar making Machine
  • P401 Full Automatic Granola Bar making Machine

P401 Full Automatic Granola Bar making Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P401
Product Details
Capacity:
100-250KG/H
Power:
5kw
Weight:
1200KG
Voltage:
380V, Three Phase
Dimention:
4800*920*1200mm
Cooling Type:
Cooling Fans
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Granola Bars, Cereal Bars, Muesli Bars, Peanut Bars,rice Bars, Etc.
Product Description

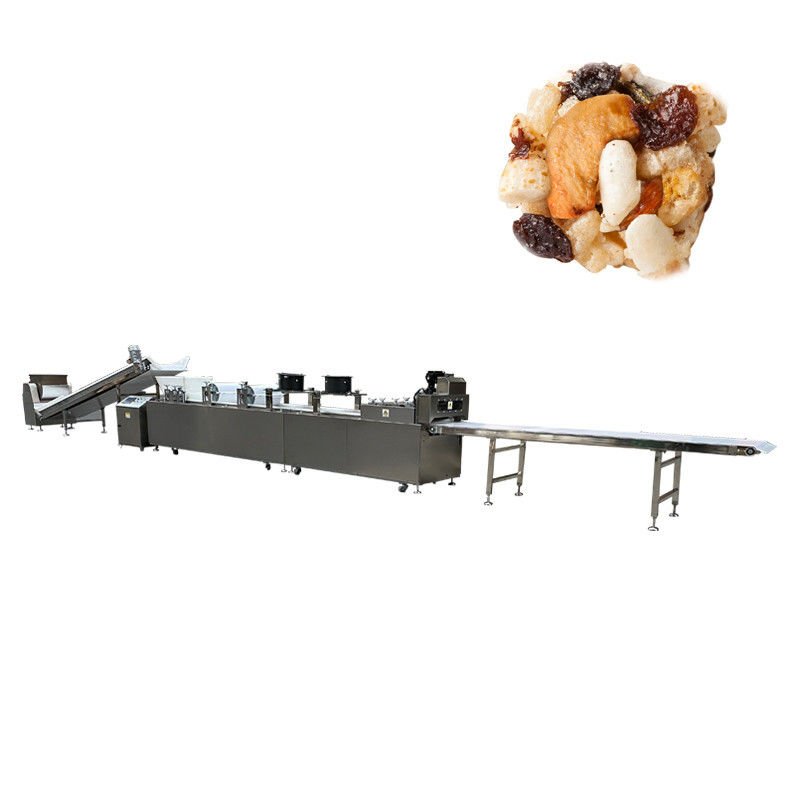

P401 Fully Automatic Granola Bar Making Machine


Description:


P401 fully automatic granola bar making machine is designed to make the cereal bars, granola bars, muesli bars, nut bars, seed bars, dry fruit bars, protein bars, power bars, peanut bars, sesame snaps, and other energy bars based on cripsy rice, puffed rice, cereals, granolas, nuts, seeds, dry fruits, protein powder, grounded nut powders or energy elements.

The granola bar making machine uses slab rolling technology to roll the material mixture into a whole slab with desired height and width and then cut to the small pieces with uniform size by the knives.The complete granola bar making machine includes mixture feeding hopper, double rollers,  double cooling fans, cross cutting unit, conveyor and control box.

Specifications:

Model P401
Capacity 100-250 KG/H
Cooling type Cooling fans
Voltage 380V, three phase
Power 5kw
Dimension

4800*920*1200mm

Weight 1200KG


P401 Full Automatic Granola Bar making Machine 0
P401 Automatic slab bar forming machine demo video:


P401 Full Automatic Granola Bar making Machine 1
Cooker, mixer and material conveyor:
P401 Full Automatic Granola Bar making Machine 2
Bars produced by P401 automatic granola bar manufacturing machine:
P401 Full Automatic Granola Bar making Machine 3

Can the slab bar forming line makes chocolate bar?
There are different kinds of chocolate bars: 1. natural chocolate bar; 2. chocolate coated candy bar; 3. chocolate mixed food bar. Our slab bar forming line can only make the chocolate mixed food bar, the chocolate coated candy bar need the chocolate candy bar machine, the natural chocolate bar need chocolate moulding machine or chocolate bar cutting machine, please send us your bar details to check.

Application:

New model slab bar making machine video:



Old model slab bar making machine in customer's factory video:




Automatic granola bar manufacturing machine is the most mature product made by Papa Industrial, It has different names in different countries, it is often called cereal bar making machine and granola bar making machine in USA and European countries, It is often called peanut candy bar making machine in India, or sesame snaps making machine and muesli bar making machine in Middle East, etc. No matter it's a cereal bar prodction line, granola bar production line or energy bar production line, they are all slab bar forming line, only some parts of the slab bar line need to be customized.

Welcome to contact us if you are interested in our multifunctional energy bar making machine!
