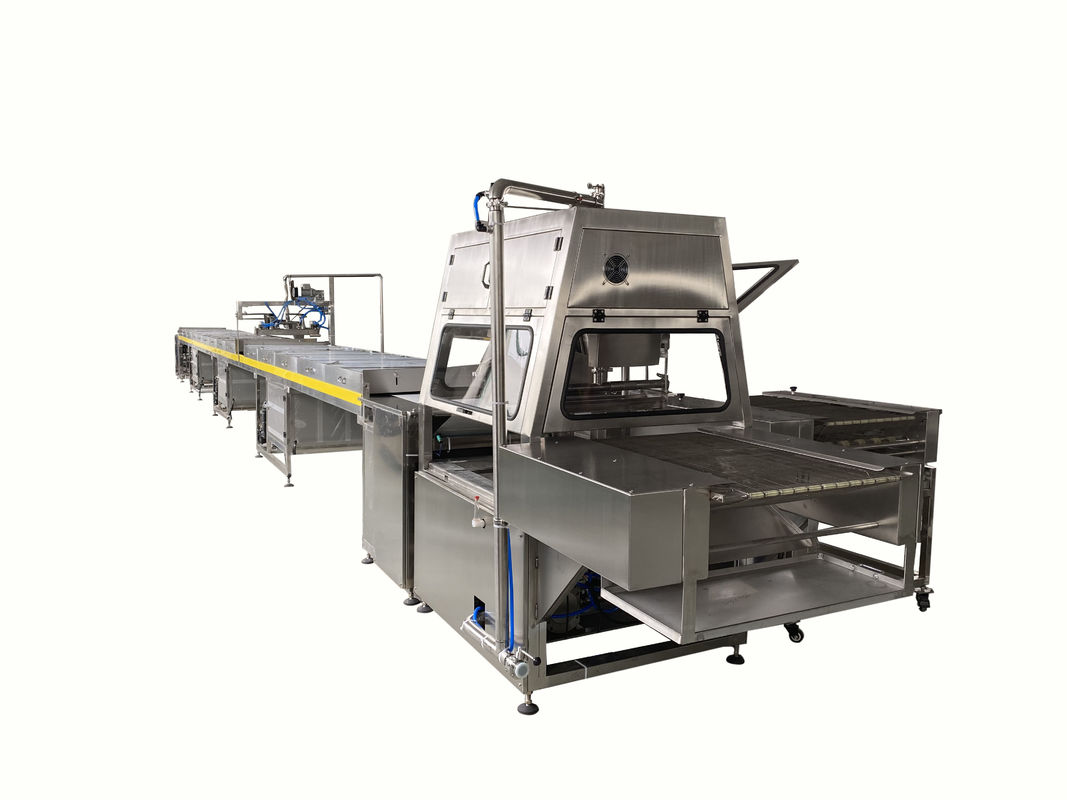

Industrial Chocolate Biscuit Coating Machine / Making Machine
  • Industrial Chocolate Biscuit Coating Machine / Making Machine
  • Industrial Chocolate Biscuit Coating Machine / Making Machine
  • Industrial Chocolate Biscuit Coating Machine / Making Machine

Industrial Chocolate Biscuit Coating Machine / Making Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number 400
Product Details
Belt Width:
400mm
Belt Speed:
1-10meter/min
Tunnel Length:
10meter
Tunnel Temperature:
2-10 ℃
Refrigerator:
2sets
Power:
12.1kw
Weight:
2000KG
Voltage:
380V, Three Phase
Dimention:
14200x950x1800mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Industrial Chocolate Coating Machine

,

Biscuit Chocolate Coating Machine

,

Chocolate Making Machine 380V

Product Description

Industrial Chocolate biscuit coating machine/making machine



Description:



Industrial Chocolate biscuit coating machine/making machine is our industrial level chocolate enrobing production line for making chocolate coated biscuit and other chocolate enrobed or coated products,such as candies,energy bars, rice crispies, cookies, biscuits, cakes, breads, etc.



The Industrial Chocolate biscuit coating machine can create one or more than two different “waterfall” of chocolate liquid for one or two different coating on the products.The biscuit that need be coated can go through the chocolate waterfall paste before they move down the freezing Tunnel. Once coated, the biscuit food will pass under an air curtain and over a vibrating plate to remove the excess chocolate.Then the chocolate coated food will continue to go through the Cooling Tunnel for cooling or drying.



The industrial biscuit chocolate coating line normally is connected after the food forming machine, such as protein bar production line, granola bar production line, cookie production, biscuit production, bread production line and so on. As for which chocolate enrobing line model to choose ,it depends on the food forming machine belt size. Our chocolate enrobing line can be customized for the specific height for customer. Customer can use the chocolate enrobing machine alone if he doesn't have the food making machine, they need to take the food to the chocolate enrobing line by hand or by a extra conveyor to finish the food enrobing.



Different models of chocolate enrobing line specifications:



Model 400 600 900 1200
Belt width 400mm 600mm 900mm 1200mm
Belt speed 1-10meter/min 1-10meter/min 1-10meter/min 1-10meter/min
Cooling tunnel length 10meter 14meter 20meter 24meter
Refrigerator unit 2 3 4 5
Refrigerator DANFOSS DANFOSS DANFOSS DANFOSS
PLC/Touch screen

Hpmont

Hpmont Hpmont Hpmont
Voltage 380V, Three phase 380V, Three phase 380V, Three phase 380V, Three phase
Power 12.1kw 20.8kw 23.8kw 27.8kw
Dimension 14200x950x1800mm 18200x1150x1800 24200x1450x1800 28250x1750x1800
Weight 2000KG 2450KG 3400KG 4100KG





Product Features

The industrial chocolate enrobing machine is a special automatic equipment for production colored chocolate products. The enrober machine has the functions of full coating, bottom coating and partial coating, and integrates chocolate enrobing and cooling.



Industrial Chocolate Biscuit Coating Machine / Making Machine 0

Application of Industrial Chocolate Enrober Machine
It can dip chocolate paste on the surface of a variety of foods, such as candy, cake, wafer biscuits, cookies, egg rolls,moon cakes and fruit jerky, form a variety of unique taste of chocolate products. The chocolate coating machine can realize enrobing on the surface of food or enrobing on the bottom of food.



Advantages of Industrial Chocolate coating machine
1.Equipped with cooling tunnel, 3P refrigeration units have good refrigeration effect.
2.The chocolate enrober can be designed into two double net coatings, one side can be painted with white chocolate and the other is black chocolate.
3.The conveyor belt is equipped with automatic correction device, the machine uses touch screen, PLC control.
4.The length of chocolate enrobing equipment and cooling tunnel can be adjusted according to customer requirements.



How to achieve continuous chocolate liquid feeding?


500L Chocolate melting tank

For continuous chocolate liquid feeding, we customize customer a small size 500L chocolate melting tank, the 500L chocolate melting tank has heating pipes inside which are used to heat and melt chocolate blocks into liquid.

Industrial Chocolate Biscuit Coating Machine / Making Machine 1



Chocolate pump

The 5 M3 chocolate feeding pump is used to connect the chocolate enrober machine and the chocolate melting tank. Chocolate liquid will be transferred from the melting tank to the enrober tank by accurate ration. The jacketed connecting pipes are used to connect all the machines to transfer chocolate liquids.

Industrial Chocolate Biscuit Coating Machine / Making Machine 2



400 Chocolate enrobing production line demo video:





Industrial chocolate enrobing production line in production:



Industrial Chocolate Biscuit Coating Machine / Making Machine 3





Food coated by chocolate enrobing machine



Industrial Chocolate Biscuit Coating Machine / Making Machine 4



Application:



Industrial Chocolate enrobing line for ball products video:





Chocolate coating line for cake products video:





Chocolate coating line for protein bar products video:





Industrial Chocolate enrobing machine for dounut product video:





Chocolate enrobing line for strawberries video:





Chocolate enrobing line with granules sprinkling machine video:
