Multipurpose small protein bar extruding machine with output capacity 40-60 pcs/Min

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box, 1350*950*1520mm Delivery Time : 3-7 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 5 sets/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P307

Detail Information

Capacity: 10-60 Pcs/min Product Shape: Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight: 10-250g Power: 0.5kw
Voltage: 220V,Single Phase Dimention: 2250*560*1380mm
Weight: 180KG Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Date Bar
High Light:

Multipurpose Protein Bar Extruding Machine

,

40 Pcs/Min Protein Bar Extruder Machine

,

Single Phase Protein Bar Extruder

Product Description

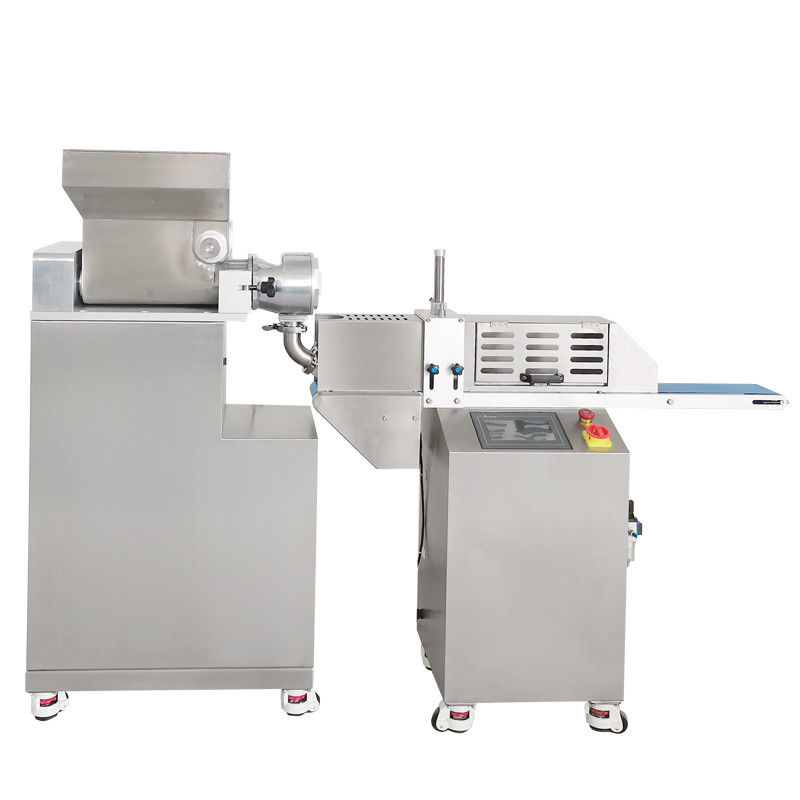

Multipurpose small protein bar extruding machine



Description:



Multipurpose small protein bar extruding machine is our fourth generation protein bar extruder machine, the small protein bar extruding machine is horizontal designed for better dough moving, and driven by two PE screwinside the stainless steel flat feeding hopper, the screw will move the pre-mixed dough to the rectifier for dough equally distribution, then the dough comes of the customized nozzles to form a bar and finally conveyored and cutted by a separate vertical protein bar cutting machine.



The small protein bar extruding machine is controlled by PLC program and operated by screen panel. All settings are done in the touch screen,which includes each section speed adjustment and memory settings.



The small protein bar extruding machine can be used alone or combined with other food machines: It can combine cooling tunnel for products which need cooling; It can combine chocolate enrober for chocolate coated products; It can combine packing machine for auto bag wrapping: It can combine oven for baking; It can be used in other food production line, etc.





Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 0.5kw
Dimension 2250*560*1380mm
Weight 180KG



Multipurpose small protein bar extruding machine with output capacity 40-60 pcs/Min 0







Multipurpose small protein bar extruding machine with output capacity 40-60 pcs/Min 1

Multipurpose small protein bar extruding machine with output capacity 40-60 pcs/Min 2



Bar produced by P307 Protein bar extruder



Multipurpose small protein bar extruding machine with output capacity 40-60 pcs/Min 3

Multipurpose small protein bar extruding machine with output capacity 40-60 pcs/Min 4

Application:



P307 Multipurpose small protein bar extruding machine video:





Multipurpose small protein bar extruding machine with powder coating machine video:





Multipurpose small protein bar extruding machine with turning conveyor and packing line video:





Chocolate coated protein bar production line video:





Related Product:



P160 Automatic encrusting machine

P160 Automatic encrusting machine is our multifunctional equipment to make center filled products, such as cookies, mooncakes, stuffed pies, filled balls, filled date bars, and so on. The encrusting machine can make round, ball, cone, bar, strip shapes, etc. So the encrusting machine can also make bar products, It can not make hard dough, but it is enough for normal products making.

Multipurpose small protein bar extruding machine with output capacity 40-60 pcs/Min 5
