Fully Automatic Small Protein Bar Production Line With Packing Machine

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 14-30 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P307

Detail Information

Capacity: 10-60 Pcs/min Product Shape: Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight: 10-250g Power: 9kw
Voltage: 220V,Single Phase Dimention: 8000*2500*1450 Mm
Weight: 1300KG Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Protein Bar, Energy Bar, Fruit Bar, Date Bar, Chocolate Bar, Cookies, Etc.
High Light:

P307 Automatic Protein bar forming machine

,

304 Ss Protein Bar Production Line

,

60 pcs/min Protein Bar Extruder Machine

Product Description

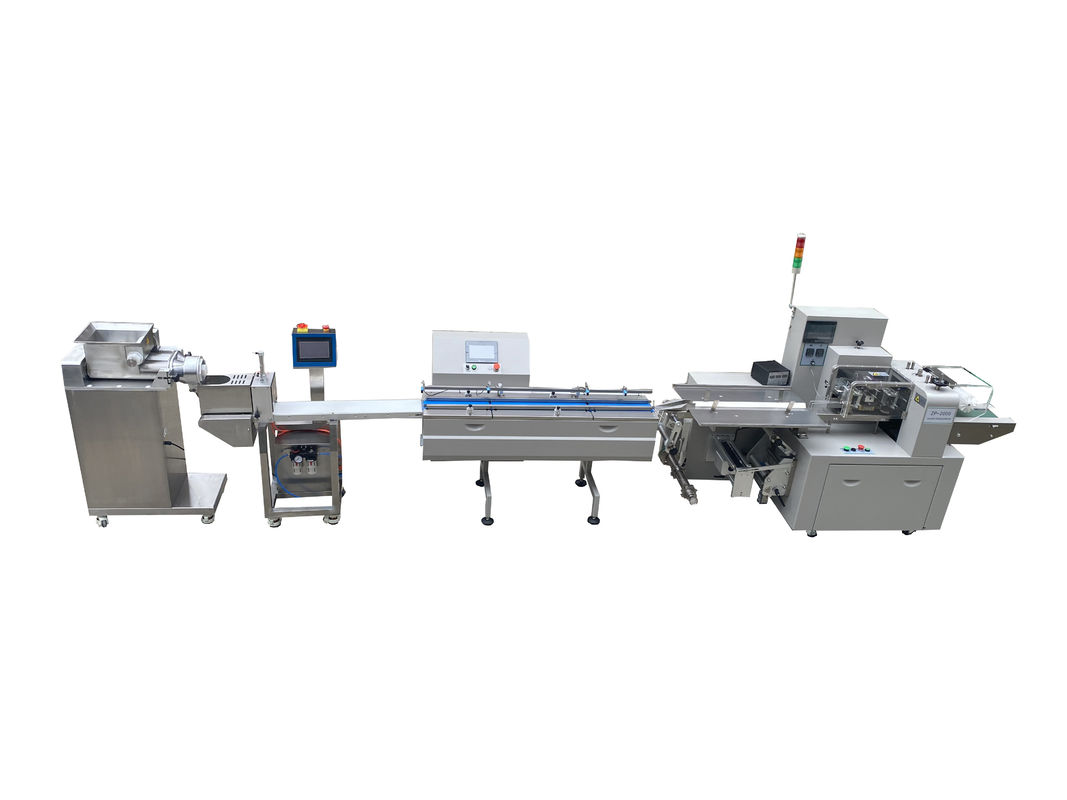

Fully automatic Small Protein Bar bar production line with packing machine



Description:



Fully automatic small protein bar production line with packing machine includes protein bar extruder, protein bar cutter, connection conveyor, flow wrapping machine. Customer can freely choose the machines needed for suitable collocation.



Protein bar extruder machine and protein bar cutting machine is the bar forming machine, the extrusion nozzles can be customized by bar width and height. The protein bar making machine can adjust the bar length by screen panel.



Flow wrapping line has automatic sensor to sort and count the bars in order before entering the flow wrapping machine, and the film downside wrapping type can perfectly protect the bars from broken or deformed, especially for protecting fragile and sticky bars.



Feature:


1)The main control circuit adopts inverter control, PLC touch screen display, and provided the good interface of person and machine. The machine operation is concentrated and intuitive;
2)The whole machine adopts dual frequency converter control, wide frequency conversion range, large speed adjustment range, which permits stepless variation. Packaging speed can be set by the production speed of the production line, and the matching is perfect.
3)After setting the packaging film length and the packing bag length, they are automatically controlled and tracked by a high-sensitivity electric eye. The bag length is accurate and not need to adjust by manual.
4)Each sealing temperature is independently controlled, suitable for a variety of packaging materials, and the sealing is beautiful and firm.
5)The printer can be configured according to the needs of users, so that the printing of production date, production batch number, etc. can be synchronized with the packaging..



Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 9kw
Dimension 5650*830*1350mm
Weight 1300KG





Fully Automatic Small Protein Bar Production Line With Packing Machine 0





Bar produced by P307 protein bar making machine:

Fully Automatic Small Protein Bar Production Line With Packing Machine 1



Application:



Complete Small chocolate coated protein bar production line video:





Small fruit bar production line with packaging machine video:





Small chocolate coated date bar production line video:





Double layers bar production line with granules sprinkler video:





Related Product



Filled date bar making machine

The filled date bar making machine consists of P160 Automatic encrusting machine and Automatic bar cutting machine. This filled date bar machine is used for center filled bars, like filled date bar, filled protein bar, filled cookies, etc.

Fully Automatic Small Protein Bar Production Line With Packing Machine 2

Filled date bar making machine video:





Bar shape cookie making machine video:





Optional devices:



1. Metal detector

The metal detector is widely use for detecting metals in food, pharmaceutical products, rubber, garment, plastic, beverage, chemical and any other industries to ensure product safety and protect your brand.

Fully Automatic Small Protein Bar Production Line With Packing Machine 3



2. Checkweighter

Checkweighter is used for online weight check for packed food. Step for food quality control, It is high accurate loadcell based on advanced DSP technology, and automatic weighing compensation and zero tracking, as well as quickly product shift and speed recall.

Fully Automatic Small Protein Bar Production Line With Packing Machine 4



Small protein bar line with metal detector and checkweighter video:





3. Planetary mixer

The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.

Fully Automatic Small Protein Bar Production Line With Packing Machine 5

P307 Chocolate coated protein bar making machine is an ideal small bar line for starting a new business and for low investment, If you have any questions about the P307 Protein bar making machine, please send us an inquiry, we will answer you as soon as possible!
