P307 Horizontal Energy Bars Maker

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box, 1350*950*1520mm Delivery Time : 3-7 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 5 sets/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P307

Detail Information

Capacity: 10-60 Pcs/min Product Shape: Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight: 10-250g Power: 0.75kw
Voltage: 220V,Single Phase Dimention: 2250*560*1380mm
Weight: 180KG Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Fruit Bar, Date Bar, Energy Bar, Protein Bar, Etc.
High Light:

Horizontal Energy Bars Maker

,

304 Stainless Steel Extruder

,

60pcs/Min Stainless Steel Extruder

Product Description

P307 Horizontal Small Energy Bars Maker



Description:

P307 Horizontal small protein bar extruder machine is our fourth generation protein bar extruder machine, The P307 Small protein bar extruder is horizontal designed for better dough transfering, and driven by two PE spirals inside the stainless steel flat feeding hopper, the sprials will transfer the pre-mixed dough to the rectifier for dough equally distribution, then the dough comes of the custom made nozzles to form a bar and finally conveyored and cutted by a separate vertical protein bar cutting machine. The P307 Small protein bar making machine is controlled by PLC program and operated by screen panel. All settings are done in the touch screen,which includes each section speed adjustment and memory settings.



P307 Small protein bar manufacturing machine is small sized, automatic control and easy cleaning, It is little space required, so it is suitable to be used at home, shops or in factory.



P307 Small protein bar cutting machine can be used alone or combined with other food machines: It can combine cooling tunnel for products which need cooling; It can combine chocolate enrober for chocolate coated products; It can combine packing machine for auto bag wrapping: It can combine oven for baking; It can be used in other food production line, etc.



Features:

1> 304 stainless steel structure for the hoppers and machine body
2> Simple structure, compact size, user-friendly interface, easy operation, stable and reliable production.
3> The product shape can be adjustable by different mould nozzle.
4> Can OEM your size and nozzle according to your requirement.
5> Suitable for different material product and can mix nuts, , like butter cookies material, date material,etc.





Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 0.5kw
Dimension 2250*560*1380mm
Weight 180KG

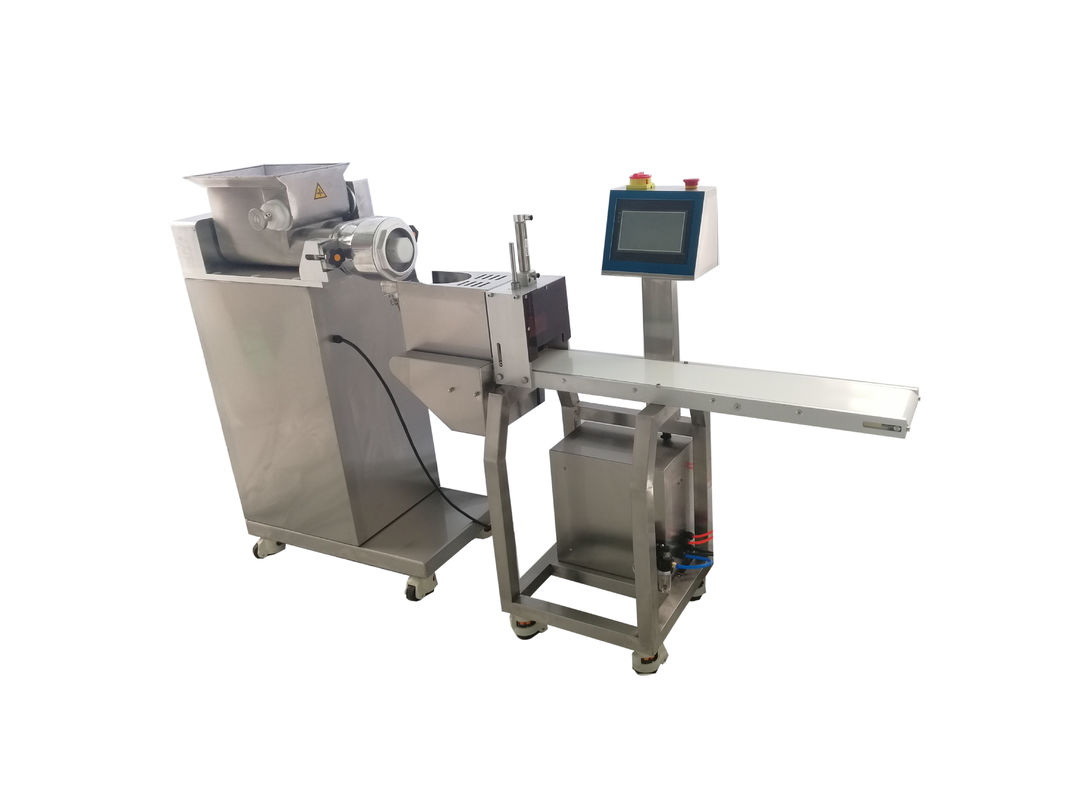

P307 Horizontal Energy Bars Maker 0





P307 Horizontal Energy Bars Maker 1

P307 Horizontal Energy Bars Maker 2

P307 Horizontal Energy Bars Maker 3



Bar produced by P307 Protein bar extruder



P307 Horizontal Energy Bars Maker 4

P307 Horizontal Energy Bars Maker 5

Application:



P307 Horizontal protein bar extruder video:





Protein bar extrusion machine with powder coating machine video:





Hard protein energy bar extruder cutting machine video:





Chocolate coated protein bar production line video:





Related Product:



P160 Automatic encrusting machine

P160 Automatic encrusting machine is our multifunctional equipment to make center filled products, such as cookies, mooncakes, stuffed pies, filled balls, filled date bars, and so on. The encrusting machine can make round, ball, cone, bar, strip shapes, etc. So the encrusting machine can also make bar products, It can not make hard dough, but it is enough for normal products making.

P307 Horizontal Energy Bars Maker 6



Optional devices:



1. Chocolate enrober

Chocolate enrober is used for coat chocolate around food or on bottom of food, the commercial chocolate enrober machine is small sized and easy operation. Customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine. The chocolate enrober has different capacities for customer to choose.

P307 Horizontal Energy Bars Maker 7

2. Planetary mixer

The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.

P307 Horizontal Energy Bars Maker 8



3. Flow wrapping machine

Automatic flow packing machine is used for food packing, featuring by steady working and excellent quality. It can pack variety of different materials and be very multifunctional to pack different kinds of food, such as bars, cookies, biscuits, cakes, breads, etc.

P307 Horizontal Energy Bars Maker 9
