Papa new developed P320 small snack bar cereal bar making machine
Papa new developed P320 small snack bar cereal bar making machine
Place of Origin
CHINA
Brand Name
iPAPA
Certification
CE
Model Number
P320
Product Details
Capacity:
100-250KG/H
Power:
5kw
Weight:
1200KG
Voltage:
380V, Three Phase
Dimention:
4800*920*1200mm
Cooling Type:
Cooling Fans
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Granola Bars, Cereal Bars, Muesli Bars, Peanut Bars,rice Bars, Etc.
Highlight:
crunch granola making machine
,
Crispy granola making machine
,
slab granola bar machine
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
Fumigation-free wooden box
Delivery Time
15-30 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
2 sets/month
Product Description

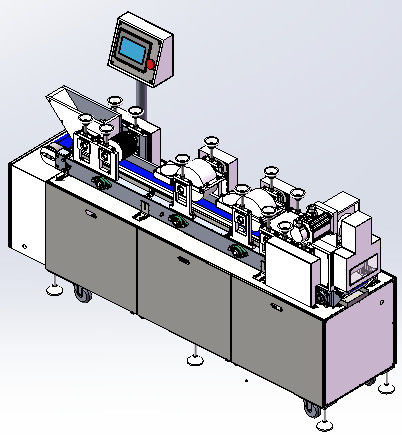

Papa new developed P320 small snack bar cereamaking machine
Description:
Papa new developed P320 small snack bar making machineis designed to make bars based on cripsy rice, puffed rice, cereals, granolas, nuts, seeds, dry fruits, protein powder, grounded nut powders or energy elements.So the slab bar forming machine can make puffed rice bar, rice crispy/rice krispies, ceral bars, granola bars, muesli bars, nut bars, seed bars, dry fruit bars, protein bars, power bars, peanut bars, sesame snaps, and other energy bars.The snack cereal bar mixture can be continuously mixed with a binder in the mass preparation unit. After mixing, the mixture can be delivered to the transport belt, formed to a continuous product slab by two equalizing rollers, and is then cut to the desired product width.
Specifications:
Model
P320
Capacity
100-130 KG/H
Cooling type
Cooling fans
Voltage
380V, three phase
Power
5kw
Dimension
2500*120*1200mm
Weight
450KG
P320 Automatic Snack bar forming machine demo video:
Bars produced by P320 Slab bar forming machine:
Related Product
P401 full automatic granola bar manufacturing machine is designed to make bars based on cripsy rice, puffed rice, cereals, granolas, nuts, seeds, dry fruits, protein powder, grounded nut powders or energy elements. So the slab bar forming machine can make puffed rice bar, rice crispy/rice krispies, ceral bars, granola bars, muesli bars, nut bars, seed bars, dry fruit bars, protein bars, power bars, peanut bars, sesame snaps, and other energy bars.
The P401 full automatic granola bar manufacturing machine is designed to produce a variety of bars using ingredients such as crispy rice, puffed rice, cereals, granolas, nuts, seeds, dried fruits, protein powder, nut powders, and energy elements. Here are the key features and process involved in manufacturing granola bars with this machine:
Ingredients Variety:
Can process a wide range of ingredients including crispy rice, puffed rice, cereals, granolas, nuts, seeds, dried fruits, protein powder, and more.
Slab Rolling Technology:
Utilizes slab rolling technology to form a whole slab of the material mixture with the desired height and width.
Bar Types:
Capable of producing various types of bars such as puffed rice bars, rice crispy bars, cereal bars, granola bars, muesli bars, nut bars, seed bars, dry fruit bars, protein bars, power bars, peanut bars, sesame snaps, and other energy bars.
Machine Components:
Includes a mixture feeding hopper, double rollers, double cooling fans, cross-cutting unit, conveyor, and control box.
Cooling Options:
Cooling fans can be replaced by a cooling tunnel for improved cooling performance, especially for sticky bars.
Customization:
The cross-cutting unit can be replaced by a bar separating system for separating bars, facilitating chocolate coating and making the machine fully automatic.
Complete Production Line:
The full production line includes a sugar boiler, material mixer, material lifting conveyor, the P401 slab bar forming machine, and a packing machine.
Fully Automatic Operation:
Utilizes a full automatic cooking system with components like an electromagnetizing sugar boiler, sugar oil holding tank, sugar sprayer, lifting conveyor, and spiral continuous mixer.
Packaging Options:
The packing machine can be a standalone unit for bar packaging or part of a fully automatic bar sorting and packaging line.
The P401 full automatic granola bar manufacturing machine offers a versatile solution for producing a variety of bars efficiently and effectively. Its slab rolling technology, cooling options, and customization features make it suitable for different types of bar production processes, catering to a range of customer requirements in the granola bar manufacturing industry.
Specifications:
Model
P401
Capacity
100-250 KG/H
Cooling type
Cooling fans
Voltage
380V, three phase
Power
5kw
Dimension
4800*920*1200mm
Weight
1200KG
Application:
New model slab bar making machine video:
Optional device:
1. Bar separating system
Bar separating system is used in the slab bar production line for bar separating from each other, so that each bar will has enough distance to be chocolate coated or packed by full automatic packaging line.
Cooling tunnel with bar separating system video:
2. Chocolate enrobing line
The Chocolate enrobing line is used after the slab bar line for chocolate coating outside the bar or on the bottom of the bar. The separated bars will be transfered to the chocolate enrober and the long cooling tunnel will cool down the chocolate bars before entering the flow wrapping machine.
Chocolate enrobing line for energy bar video:
3. Full automatic sorting and flow wrapping line
The full automatic sorting and flow wrapping line is used in the production lines like slab bar production line, protein bar production line or chocolate production line to do automatically bag flow wrap packaging. This section has no manual operation, all processes are done by the machine.
Bar sorting and flow wrappling line video:
Slab bar forming machine is the most mature product made by Papa Industrial, It has different names in different countries, it is often called cereal bar making machine and granola bar making machine in USA and European countries, It is often called peanut candy bar making machine in India, or sesame snaps making machine and muesli bar making machine in Middle East, etc. No matter it's a cereal bar prodction line, granola bar production line or energy bar production line, they are all slab bar forming line, only some parts of the slab bar line need to be customized.
Welcome to contact us if you are interested in our multifunctional energy bar making machine!
FAQ:
What does the small cereal bar making machine consist of?
Slab bar forming machine or slab former is the most mature product made by Papa Industrial, It has different names in different countries, it is often called cereal bar making machine and granola bar making machine in USA and European countries, It is often called peanut candy bar making machine in India, or sesame snaps making machine and muesli bar making machine in Middle East, etc.No matter it's a cereal bar prodction line, granola bar production line or energy bar production line, they are all slab bar forming line, only some parts of the slab bar line need to be customized.
Can your small P320 cereal bar machinery for lab use?
The size of the small snack bar food machine that we desigend is for the customers who have small production demand and the small operation space.The footprint of the small granola bar machine is very small,customers can put it in lab for different sample cereal bar researching and making.
Can your small cereal bar machinery make peanut candy bar or nut bar?
The small cereal bar machine is mainly designed for peanut candy bar. So the cereal bar machine is actually a peanut bar making machine. The P301 model small peanut bar machine is enough for making normal peanut bars. As the peanut candy bar is normally made with high temperature syrup (up to 150 Celsius), so the peanut candy bar making machine is equipped with two strong cooling fans to cool down the hot peanut slab fast. The cutting blade width of the peanut bar cutting machine can be adjusted according to customer's bar width. The peanut brittle making machine can adjust the bar length automatically by touch screen and adjust the bar height by adjusting roller height.
Can the cereal bar making machine make puffed rice bar?
The cereal bar making machine is originally designed for puffed rice bar as well. The puffed rice bar can be formed into many shapes, like square bar shape, ball shape, round dis shape, cylinder shape and other abnormal shapes. Our P401 model puffed rice bar machine uses cutting method, so it can only make bar shape puffed rice bar. Other shapes need our rice crispy machine, the rice crispy making machine is our only model machine for rice bites, rice treats, rice squares, rice sticks, rice rollers, rice disc, rice ball and nut clusters. For some rice treats and nut clusters with squares shape, the rice bites making machine can also make it, customer can choose which method he prefers.
Can your cereal bar production line machine makes muesli bar?
Yes, the cereal bar production line machine can make muesli bar. muesli bar share same production process to cereal bar production process. For making muesli bar, the muesli bar making machine is still the major machine in the muesli bar production line, but the muesli bar recipes will be a little different, the muesli bar is more crispy, so we suggest the new guillotine cutter instead of the rolling knives in the muesli bar manufacturing process.
Welcome to contact us if you are interested in our multifunctional energy bar making machine!
