Large capacity Chocolate date bar production line

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 14-30 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P307

Detail Information

Capacity: 10-60 Pcs/min Product Shape: Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight: 10-250g Power: 9kw
Voltage: 220V,Single Phase Dimention: 8000*2500*1450 Mm
Weight: 1300KG Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Protein Bar, Energy Bar, Fruit Bar, Date Bar, Chocolate Bar, Cookies, Etc.
High Light:

10pcs min chocolate bar maker machine

,

30KG chocolate bar maker machine

,

ss304 round energy bar extruder

Product Description

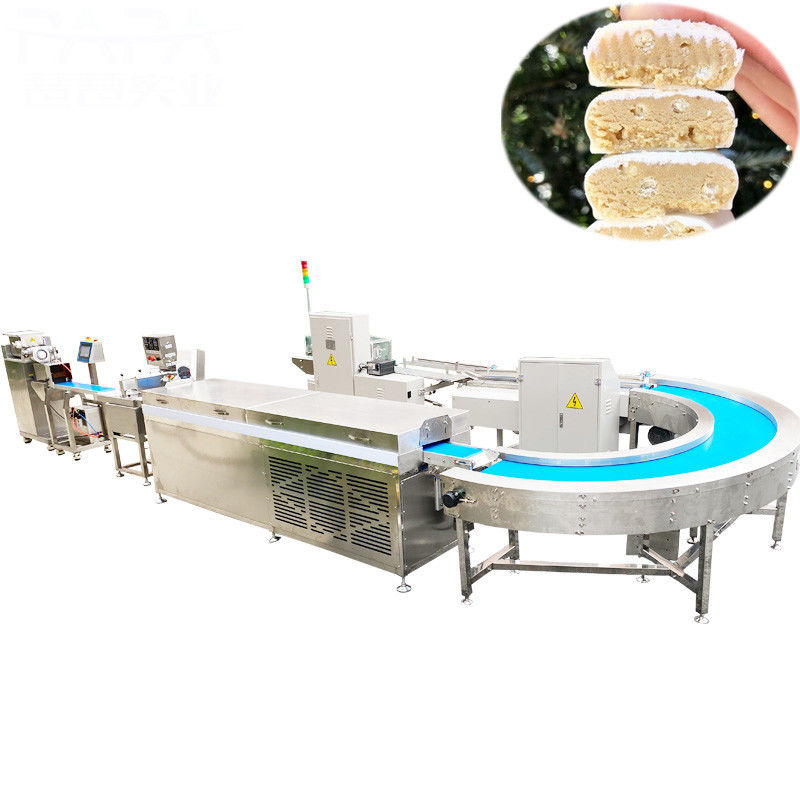

Large capacity Chocolate date bar production line



Description:

Large capacity Chocolate date bar production line includes protein bar extruder, protein bar cutter, chocolate enrober, chocolate cooling tunnel, 180 ° turning conveyor, connection conveyor, flow wrapping machine. Customer can freely choose the machines needed for suitable collocation.



Protein bar extruder machine and protein bar cutting machine is the bar forming machine, the extrusion nozzles can be customized by bar width and height. The protein bar making machine can adjust the bar length by screen panel.



Chocolate enrober is the essential equipment for chocolate coating outside the bar, the chocolate coating can be fully coated or bottom coated on the bar, of course, the chocolate enrober machine can coat other food as well besides the bar products. We have different capacities ( 8KG/15KG/30KG/60KG ) chocolate enrober for customer to choose according to their production line. Besides,we provided chocolate melting tank and transfer pump as accessory equipments for customer to choose by achieving continuous chocolate supplying.



Chocolate cooling tunnel is the essential equipment for chocolate cooling, The cooling tunnel has strong 3P power refrigerating unit to reach minimum minus 20 ℃ temperature. Except for cooling chocolate, customer can connect the cooling tunnel right after the protein bar machine for making sticky bars without chocolate coating.



180 ° Turning conveyor is used to connect the cooling tunnel and flow wrapping line for saving space. Customer can take it out as long as he has enough space for the protien bar production line. Besides, we can customize the turning conveyor to different radian ( such as 90 °)to meet customer's factory layout.



Flow wrapping line has automatic sensor to sort and count the bars in order before entering the flow wrapping machine, and the film downside wrapping type can perfectly protect the bars from broken or deformed, especially for protecting fragile and sticky bars.



P307 Chocolate coated protein bar making machine is special designed for bar products, such as protein bar, fruit bar, energy bar, date bar, coconut bar, nutrition bar, power bar, chocolate bar, bar shape cookies, date roll, date bites, disc, etc.



P307 Chocolate coated protien bar making machine is our small protein bar line special designed for low production, new business or limited space. It has a low capacity of maximum 60 pieces bar per minute, if customer need big capacity,we have P400 Multiple row protein bar extruder for customer to choose.



Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 9kw
Dimension 8000*2500*1450mm
Weight 1300KG





Large capacity Chocolate date bar production line 0

Large capacity Chocolate date bar production line 1





Bar produced by P307 protein bar making machine:

Large capacity Chocolate date bar production line 2



Application:



Complete Small chocolate coated protein bar production line video:





Small fruit bar production line with packaging machine video:





Small chocolate coated date bar production line video:





Double layers bar production line with granules sprinkler video:





Related Product



Filled date bar making machine

The filled date bar making machine consists of P160 Automatic encrusting machine and Automatic bar cutting machine. This filled date bar machine is used for center filled bars, like filled date bar, filled protein bar, filled cookies, etc.

Large capacity Chocolate date bar production line 3

Filled date bar making machine video:





Bar shape cookie making machine video:





Optional devices:



1. Metal detector

The metal detector is widely use for detecting metals in food, pharmaceutical products, rubber, garment, plastic, beverage, chemical and any other industries to ensure product safety and protect your brand.

Large capacity Chocolate date bar production line 4



2. Checkweighter

Checkweighter is used for online weight check for packed food. Step for food quality control, It is high accurate loadcell based on advanced DSP technology, and automatic weighing compensation and zero tracking, as well as quickly product shift and speed recall.

Large capacity Chocolate date bar production line 5



Small protein bar line with metal detector and checkweighter video:





3. Planetary mixer

The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.

Large capacity Chocolate date bar production line 6

P307 Chocolate coated protein bar making machine is an ideal small bar line for starting a new business and for low investment, If you have any questions about the P307 Protein bar making machine, please send us an inquiry, we will answer you as soon as possible!
