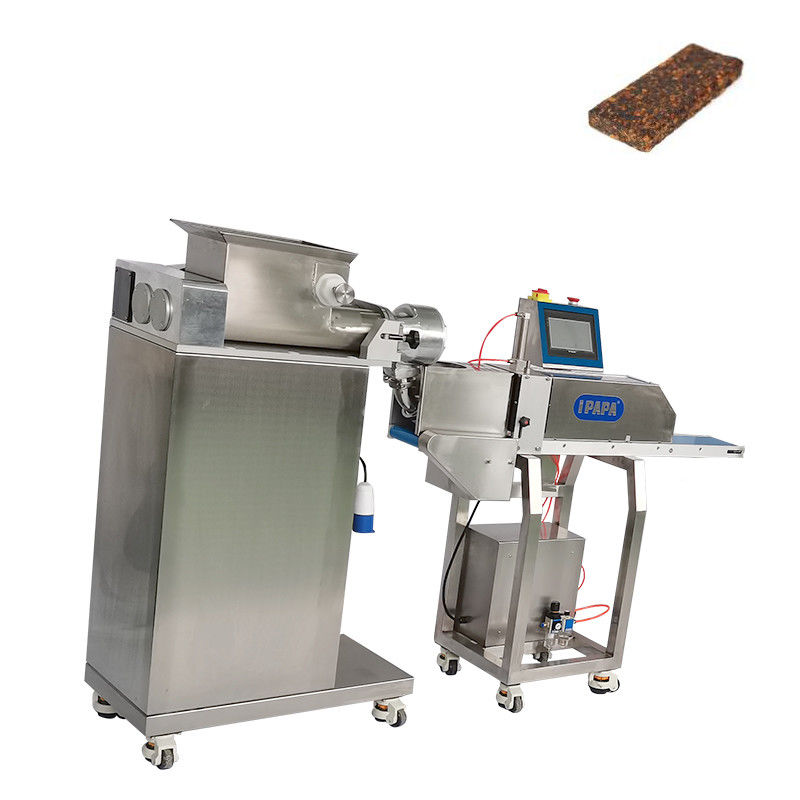

P307 Stainless steel 304 single Line Fruit Bar Making Machine
  • P307 Stainless steel 304 single Line Fruit Bar Making Machine
  • P307 Stainless steel 304 single Line Fruit Bar Making Machine
  • P307 Stainless steel 304 single Line Fruit Bar Making Machine
  • P307 Stainless steel 304 single Line Fruit Bar Making Machine

P307 Stainless steel 304 single Line Fruit Bar Making Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P307
Product Details
Capacity:
10-60 Pcs/min
Product Shape:
Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight:
10-250g
Power:
0.5kw
Voltage:
220V,Single Phase
Dimention:
2250*560*1380mm
Weight:
180KG
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Fruit Bar
High Light:

P307 Single Line Fruit Bar Maker

,

0.5kw Power Fruit Bar Making Machine

,

180KG Fruit Bar Making Machine

Product Description

Single line fruit bar making machine for start business



Description:



Single line fruit bar making machine is four fourth generation protein bar extruder machine, The single line fruit bar making machine  is horizontal designed for better dough transfering, and driven by two PE spirals inside the stainless steel flat feeding hopper, the sprials will transfer the pre-mixed dough to the rectifier for dough equally distribution, then the dough comes of the custom made nozzles to form a bar and finally conveyored and cutted by a separate vertical protein bar cutting machine. The P307 Small protein bar making machine is controlled by PLC program and operated by screen panel. All settings are done in the touch screen,which includes each section speed adjustment and memory settings.



Single line fruit bar making machine is special designed for bar products with different shapes like bar shape, round shape, disc shape, bites shape, pyramid shape, etc. It is avaibale to make protein bar, date bar, fruit bar, energy bar, power bar, nutrition bar, coconut bar, cookies and so on.



Single line fruit bar making machine is small sized, automatic control and easy cleaning, It is little space required, so it is suitable to be used at home, shops or in factory.



Single line fruit bar making machine can be used alone or combined with other food machines: It can combine cooling tunnel for products which need cooling; It can combine chocolate enrober for chocolate coated products; It can combine packing machine for auto bag wrapping: It can combine oven for baking; It can be used in other food production line, etc.





Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 0.5kw
Dimension 2250*560*1380mm
Weight 180KG



P307 Stainless steel 304 single Line Fruit Bar Making Machine 0







P307 Stainless steel 304 single Line Fruit Bar Making Machine 1

P307 Stainless steel 304 single Line Fruit Bar Making Machine 2



Bar produced by P307 Protein bar extruder



P307 Stainless steel 304 single Line Fruit Bar Making Machine 3

P307 Stainless steel 304 single Line Fruit Bar Making Machine 4

Application:



Single line fruit bar making machine :





Single line fruit bar making machine with powder coating machine video:





Protein bar extruder machine with turning conveyor and packing line video:





Chocolate coated fruit bar production line video:





Related Product:



P160 Automatic encrusting machine

P160 Automatic encrusting machine is our multifunctional equipment to make center filled products, such as cookies, mooncakes, stuffed pies, filled balls, filled date bars, and so on. The encrusting machine can make round, ball, cone, bar, strip shapes, etc. So the encrusting machine can also make bar products, It can not make hard dough, but it is enough for normal products making.

P307 Stainless steel 304 single Line Fruit Bar Making Machine 5



Optional devices:



1. Chocolate enrober

Chocolate enrober is used for coating all kinds of food, such as date bar, protein bar, corporate with packing machine, you will get perfect chocotae dates bars.

P307 Stainless steel 304 single Line Fruit Bar Making Machine 6

2. Planetary mixer

The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for date materials mixing.

P307 Stainless steel 304 single Line Fruit Bar Making Machine 7



3. Flow wrapping machine

Automatic flow packing machine is used for food packing, featuring by steady working and excellent quality. It can pack variety of different materials and be very multifunctional to pack different kinds of food, such as bars, cookies, biscuits, cakes, breads, etc.

P307 Stainless steel 304 single Line Fruit Bar Making Machine 8
