P307 Small mini protein bar making machine

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box, 1350*950*1520mm Delivery Time : 3-7 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 5 sets/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P307

Detail Information

Capacity: 10-60 Pcs/min Product Shape: Bar, Round, Strip, Square, Pyramid, Disc, Etc
Product Weight: 10-250g Power: 0.5kw
Voltage: 220V,Single Phase Dimention: 2250*560*1380mm
Weight: 180KG Material: Stainless Steel 304
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Application: Fruit Bar, Date Bar, Energy Bar, Protein Bar, Etc.
High Light:

P307 Small protein bar making machine

,

mini protein bar making machine

,

10 pcs/min energy bar making machine

Product Description

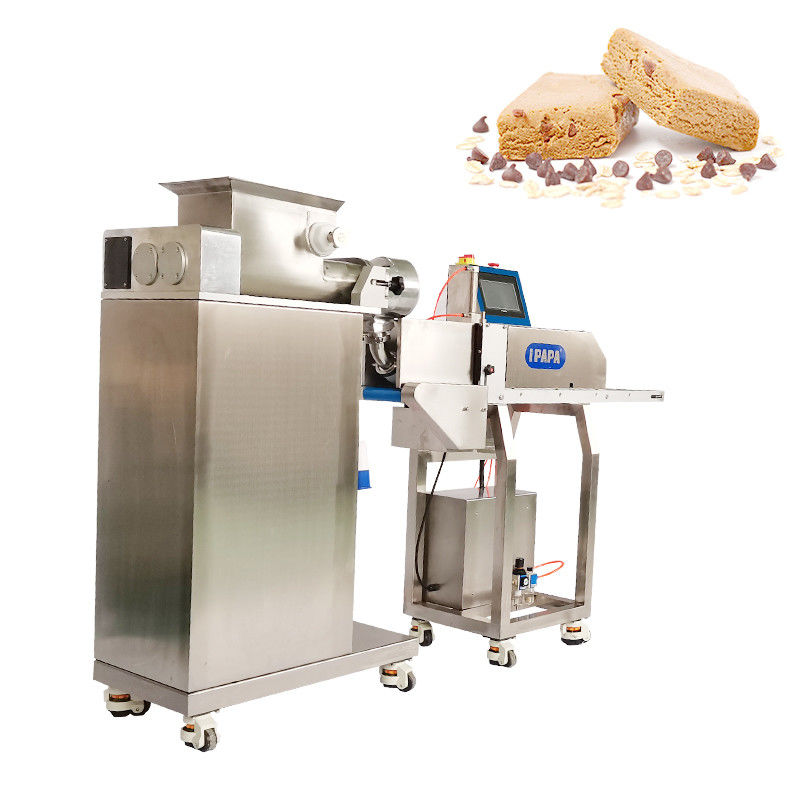

P307 Small mini protein bar making machine



Description:



P307 Small mini protein bar making machine is our fourth generation protein bar making machine,it consist of the protein bar extruder machine and protein bar cutter,the protein bar extruder is horizontal designed for better dough transfering, and driven by two PE rolling screws inside the stainless steel flat feeding hopper, the rolling screw will transfer the pre-mixed dough to the rectifier for dough equal distribution, then the dough comes out of the customized nozzles to form a bar and finally conveyored and cutted by a separate vertical protein bar cutting machine.



The protein bar extruder is specially made for making soft mixture, hard mixture or sticky mixture bars.The protein bar extruder machine adopts to the horizontal type with double rolling screws to guarantee the dough extruded successfully to the rectifier, and a extra roller on top of hopper rolling down the mixture to guarantee no mixture come out. the horizontal design guarantees the perfect bar shape, the rectifer gurantees the uniform same size and weight of bar.The protein bar cutting machine make the bar length by guillotine cutter, and bar width and thickness and the shape made by installing cutomsized nozzle mold.The extrusion nozzle mold will be customized according to your energy bar size and shape.



P307 Small protein bar extrusion machine is special designed for bar products with different shapes like bar shape, round shape, disc shape, bites shape, pyramid shape, etc. It is avaibale to make protein bar, date bar, fruit bar, energy bar, power bar, nutrition bar, coconut bar, cookies and so on. P307 Small mini protein bar making machine is controlled by PLC program and operated by screen panel. All settings are done in the touch screen,which includes each section speed adjustment and memory settings.



P307 Small mini protein bar making machine is small sized, automatic control and easy cleaning, It is little space required, so it is suitable to be used at home, shops or in factory.



P307 Small mini protein bar making machine can be used alone or combined with other food machines: It can combine cooling tunnel for products which need cooling; It can combine chocolate enrober for chocolate coated products; It can combine packing machine for auto bag wrapping: It can combine oven for baking; It can be used in other food production line, etc.


Small protein bar machine is the best-selling product of our company, which are exported to all countries in the world, especially the United States, Britain and India.



Features:



1.The small protein bar machine is automatic PLC control with a touch screen.

2.Machine body & Hopper made by 304 Stainless steel.

3.Extruder and cutter separately design makes the machine easy for cleaning

4.Newest technology, highest quality, CE certificated.

5.Least space required.



Specifications:

Model P307
Capacity 10-60pcs/min
Product shape bar, round, strip, square, pyramid, bites, etc.
Product weight 10-250g
Voltage 220V, single phase
Power 0.5kw
Dimension 2250*560*1380mm
Weight 180KG



P307 Small mini protein bar making machine 0





P307 Small mini protein bar making machine 1

P307 Small mini protein bar making machine 2

P307 Small mini protein bar making machine 3



Bar produced by P307 Protein bar extruder



P307 Small mini protein bar making machine 4

P307 Small mini protein bar making machine 5

Application:



P307 Horizontal protein bar extruder video:





Protein bar extrusion machine with powder coating machine video:





Protein bar extruder machine with turning conveyor and packing line video:





Chocolate coated protein date bar production line video:





Related Product:



P160 Automatic encrusting machine

P160 Automatic encrusting machine is our multifunctional equipment to make center filled products, such as cookies, mooncakes, stuffed pies, filled balls, filled date bars, and so on. The encrusting machine can make round, ball, cone, bar, strip shapes, etc. So the encrusting machine can also make bar products, It can not make hard dough, but it is enough for normal products making.

P307 Small mini protein bar making machine 6



Optional devices:



1. Chocolate enrober

Chocolate enrober is used for coat chocolate around food or on bottom of food, the commercial chocolate enrober machine is small sized and easy operation. Customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine. The chocolate enrober has different capacities for customer to choose.

P307 Small mini protein bar making machine 7

2. Planetary mixer

The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.

P307 Small mini protein bar making machine 8



3. Flow wrapping machine

Automatic flow packing machine is used for food packing, featuring by steady working and excellent quality. It can pack variety of different materials and be very multifunctional to pack different kinds of food, such as bars, cookies, biscuits, cakes, breads, etc.

P307 Small mini protein bar making machine 9
