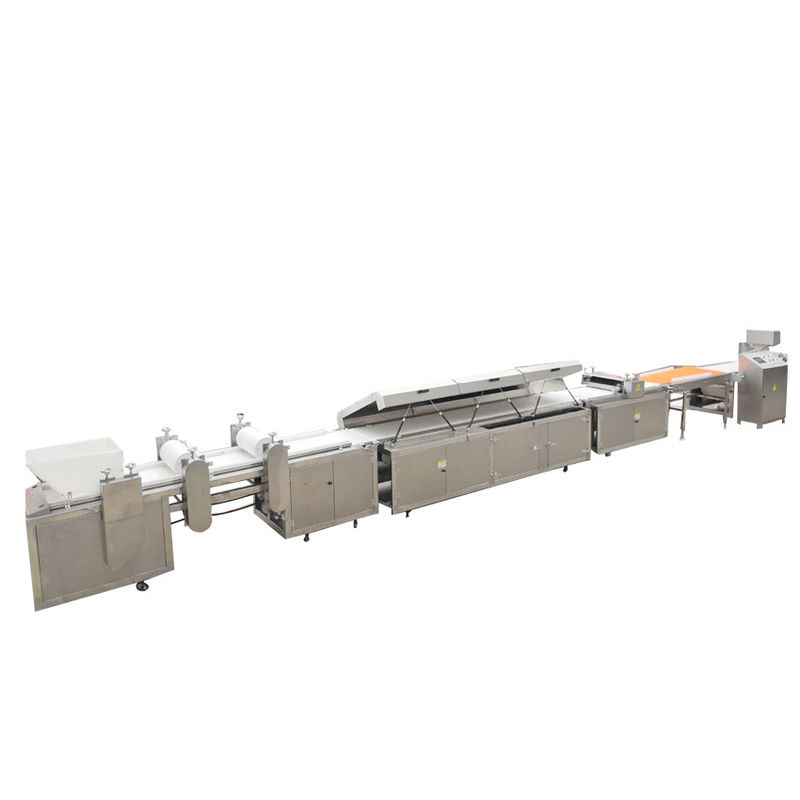

Papa Automatic P403 Fully Automated Cereal Bar Production Line with 350-450KG/H Capacity and Stainless Steel 304 Construction
  • Papa Automatic P403 Fully Automated Cereal Bar Production Line with 350-450KG/H Capacity and Stainless Steel 304 Construction
  • Papa Automatic P403 Fully Automated Cereal Bar Production Line with 350-450KG/H Capacity and Stainless Steel 304 Construction
  • Papa Automatic P403 Fully Automated Cereal Bar Production Line with 350-450KG/H Capacity and Stainless Steel 304 Construction

Papa Automatic P403 Fully Automated Cereal Bar Production Line with 350-450KG/H Capacity and Stainless Steel 304 Construction

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P403
Product Details
Capacity:
350-450KG/H
Power:
5kw
Weight:
1200KG
Voltage:
380V, Three Phase
Dimention:
4800*920*1200mm
Cooling Type:
Cooling Fans
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Granola Bars, Cereal Bars, Muesli Bars, Peanut Bars,rice Bars, Etc.
Highlight:

Fully Automated Cereal Bar Production Line

,

350-450KG/H Capacity Energy Bar Making Machine

,

Stainless Steel 304 Granola Bar Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
Fumigation-free wooden box
Delivery Time
15-30 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
2 sets/month
Product Description

Papa Automatic Large P403 Nougat Candy Bar Production Line For Sales

Description:



Papa automatic P403 Chocolate Coated Cereal Energy Protein Bar Making Machine includes Material Conveyor, cereal bar forming machine,6 meter cooling tunnel,Cutting unit&bar Separating system&Conveyor,180° Turning Conveyor,600 Chocolate coating line with 14M cooling tunnel,  and fully automatic feeding packing line. Customer can freely choose the machines needed for suitable collocation.



The large candy bar machine can be fully automated end-to-end process; modular design allows for optional chocolate coating and automatic packaging.

The Nougat Bar Complete production stages include:
Raw material mixing & cooking → Layering & sheeting → Constant-temperature cooling tunnel → Longitudinal slitting → Precision cross-cutting → Chocolate enrobing (optional) → Secondary cooling → Automatic product alignment & packaging





- Capacity: 400–1200 kg of finished product per hour

- Machine Material: All food-contact parts made of 304 stainless steel; compliant with food hygiene standards

- Control System: PLC with touchscreen interface and variable frequency drive (VFD); dimensions/weight adjustable via one-touch control

III. Core Technical Parameters (Standard Model)

1. Finished product specifications: 20–100g

2. Operating voltage: 380V/50Hz

3. Cooling tunnel temperature control: 5–12°C (rapid setting, non-stick)

4. Cutting method: Servo-driven blade assembly or wire cutting (clean cuts, no crumbling/waste)

5. Optional modules: Nut sprinkler, chocolate enrobing machine, fully automatic pillow-type packaging machine



Specifications:



Model P403
Capacity 350-450 KG/H
Cooling type Cooling Tunnel
Voltage 380V, three phase
Power 5kw
Dimension 4800*920*1200mm
Weight 1200KG






Papa Automatic P403 Fully Automated Cereal Bar Production Line with 350-450KG/H Capacity and Stainless Steel 304 Construction 0
P401 Automatic slab bar forming machine demo video:


Papa Automatic P403 Fully Automated Cereal Bar Production Line with 350-450KG/H Capacity and Stainless Steel 304 Construction 1
Cooker, mixer and material conveyor:
Papa Automatic P403 Fully Automated Cereal Bar Production Line with 350-450KG/H Capacity and Stainless Steel 304 Construction 2
Bars produced by P403 Slab bar forming machine:
Papa Automatic P403 Fully Automated Cereal Bar Production Line with 350-450KG/H Capacity and Stainless Steel 304 Construction 3
Application:

New model slab bar making machine video:
