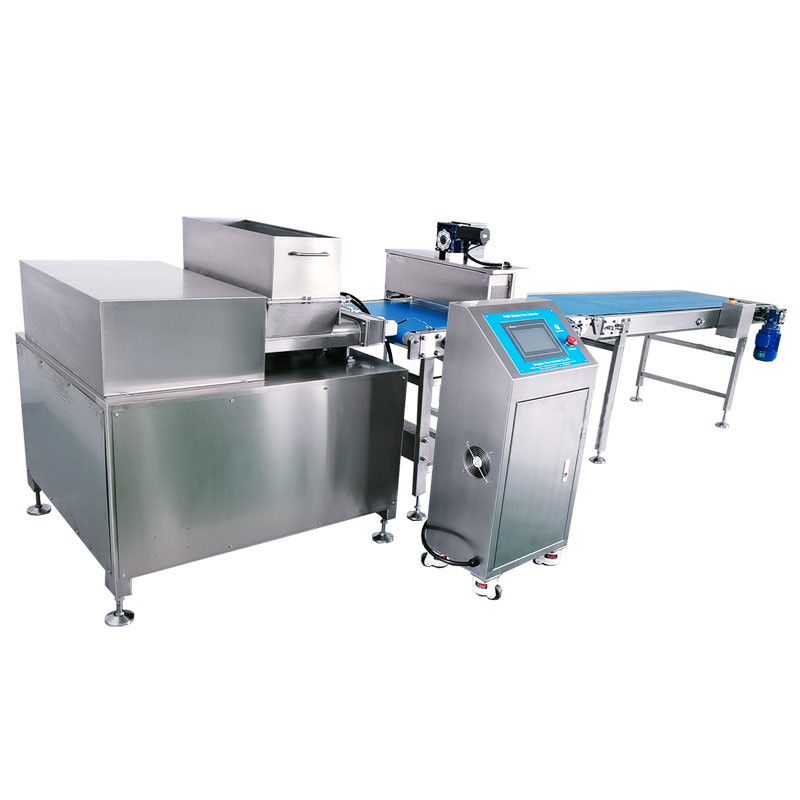

Papa Multifunction Protein Energy Dates Bar Extruder Machine
Description:
Papa Snack energy dates bar extruder machine is an automated production line designed for the efficient production of energy bars, oat bars, cereal bars, snack bars, health food bars, and similar products. The system typically includes hoppers for raw material feeding, a mixing chamber for mixing oats, nuts, sweeteners, etc...
Papa protein bar extruder is a specialized food processing machine used for producing protein bars or nutritional bars. It primarily uses high-pressure extrusion to mix raw materials and form uniform bar-shaped, block-shaped, or other customized products.
Core functions: Mixing raw materials such as protein powder, nuts, syrups, grains, and binders (e.g., honey, maltose), and forming the protein bars into specific shapes through extrusion.
Application scenarios:
Fitness and nutritional food (high-protein, low-sugar formulas)
Energy bar and meal replacement bar production
Customized healthy snacks (e.g., with added vitamins, dietary fiber, etc.)
Specifications:
Model
P400
Capacity
120-360 pcs/min
Product shape
bar, round, strip, square, pyramid, bites, etc.
Product weight
10-250g
Voltage
220V, single phase
Power
2.5kw
Dimension
4300*968*1200mm
Weight
400KG
High output Date bar production line
P400 Multipe lanes date bar production line:
Bar produced by P400 Multipe lanes protein bar production line:
Application:
Multiple lanes protein bar production line for trapezoid shape bar:
Multiple lanes protein bar production line for nuts mixed energy bar:
Multiple lanes protein bar production line for sticky fruit bar:
Optional devices:
1. Cooling tunnel
The cooling tunnel is used for cooling food products or chocolate coated products, the cooling temperature normally is setted 0-10 ℃, the cooling tunnel length normally require 6-10 meters, it depends on customer's requirements on customer's product formula. The conveyor belt width has 400mm, 600mm, 900mm and 1200mm for customer to choose. The cooling tunnel is a optional equipment according to customer's product textrure requirements.
The automatic panning system or tray aligning machine is used for auto bar sorting and collecting into baking trays. For some bars which need oven baking, room cooling or normal storage, customer need to collect the bars into the baking trays. The auto tray aligning machine avoids collecting the bars one by one by hands, It largely saves the time and labor.
3. Chocolate enrobing line
Industrial type chocolate enrobing line includes chocolate enrober and chocolate cooling tunnel. The industrial type chocolte enrobing line has a minumum 400mm belt width which will be connected to the protein bar forming machine, the belt height will be customized according to protein bar machine belt height. It is the essential equipment for making chocolate coated bars.
4. Full auto sorting and flow wrapping line
The full automatic sorting and flow wrapping line includes automatic sorting conveyors and automatic flow wrapping machine. The sorting conveyor need to customized according to customer's protein bar line belt width and height, as well as direction in factory. The sorting conveyor can connect directly to the bar forming machine, or connect the cooling tunnel, or connect the cooling conveyor, or connect the chocolate enrober, it is very flexible. The automatic flow wrapping machine is the major machine doing the film wrapping work for the bar products. It has high speed for wrapping bars with different sizes.
P400 Multiple lanes protein bar production line can be separately used or connect other machines in food production. It ideally meets customer's need for high production and low cost, welcome to contact us if you want to know more about our protein bar production line!
