Place of Origin | CHINA |
Brand Name | iPAPA |
Certification | CE |
Model Number | 600 |
China industrial biscuit chocolate enrobing dipping coating machine enrober for donut
Description:

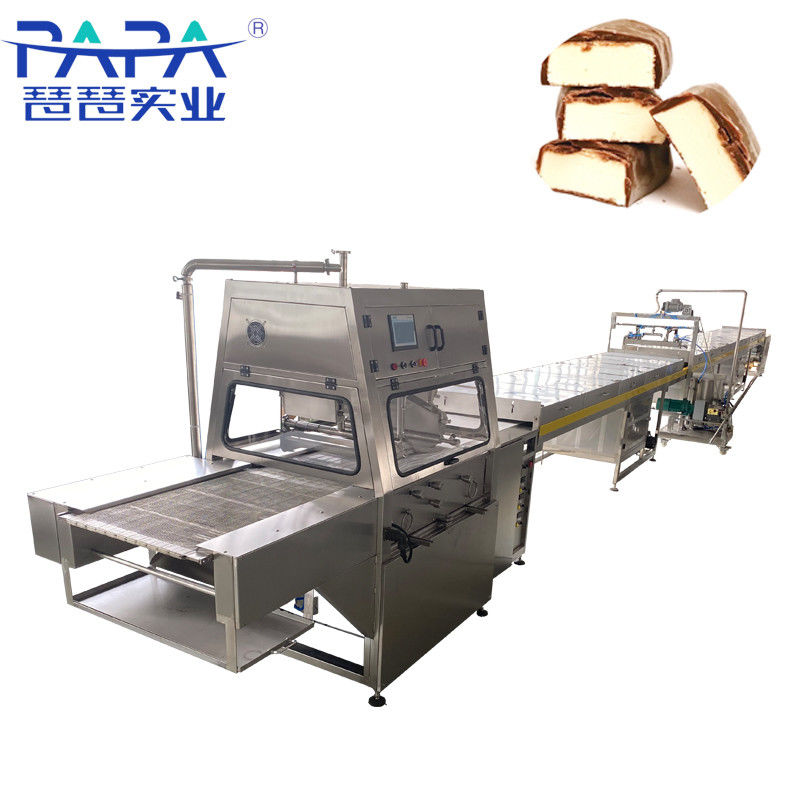

China industrial biscuit chocolate enrobing dipping coating machine enrober for donut is to coat chocolate on various food such as biscuit, wafers, egg rolls, cake pie and snacks etc to form variety of unique chocolate food.
The chocolate enrobing dipping coating machine enrober for donut consists of chocolate enrober machine and chocolate cooling tunnel. The belt width of large scale chocolate dipping machine that we have is 400mm,600mm,900mm and 1200mm,etc.Customers can choose different belt size according to his personal requirement.
The large scale industrial chocolate coating line normally is connected to the food forming machine, such as protein bar production line, granola bar production line, cookie production, biscuit production, bread production line and so on. So as to which model of the chocolate coating line to choose is depending on the food forming machine belt size. The height of our chocolate coating line can be customized per the request of the customer. Customer can use the chocolate coating line only if he doesn't have the food making machine, then he need to take the food to the chocolate enrobing line by hand or by a extra conveyor.
The ideal cooling temperature for the chocolate coating line is 2-10 ℃, it will has the best taste and form of the final chocolate coated products. Of course, the cooling tunnel can be customize to lower temperature if customer requires.
The chocolate coating line normally need continuous production together with the food making machine, this requires continuous chocolate liquid supplying to the tank of chocolate coating machine, we have complete sets of chocolate preparing equipments: Sugar grinder, fat melting tank, chocolate conching machine, chocolate holding tank, chocolate tempering machine and chocolate pumps. The chocolate tempering machine is the necessary equipment for making pure chocolate, Customer can choose the chocolate melting tank only if be just buy the chocolate blocks as raw materials for melting.
Features:
The machine can coat the whole surface or coat the single surface. The coating areas can be controlled by vibration and wind speed.
Fan speed is uniform ,high quality for coating the chocolate .Coating surface is uniform, smooth and beautiful.
The conveyor belt is provided with automatic correction device, the machine adopts touch screen, PLC control.
The cooling tunnel device is designed by us ,with air flow uniform and stability ,better than the normal equipments.
The machine is easy to clean ,the mesh uses pulling type ,it takes only about 20 minutes to clean the machine .
The machine can be designed for two double mesh belts to coat ,one side can be coated with white chocolate ,one black chocolate.
The length of the machine can be adjusted according to customer requirements.
Different models of chocolate enrobing line specifications:
Model | 400 | 600 | 900 | 1200 |
---|---|---|---|---|
Belt width | 400mm | 600mm | 900mm | 1200mm |
Belt speed | 1-10meter/min | 1-10meter/min | 1-10meter/min | 1-10meter/min |
Cooling tunnel length | 10meter | 14meter | 20meter | 24meter |
Refrigerator unit | 2 | 3 | 4 | 5 |
Refrigerator | DANFOSS | DANFOSS | DANFOSS | DANFOSS |
PLC/Touch screen |
Hpmont |
Hpmont | Hpmont | Hpmont |
Voltage | 380V, Three phase | 380V, Three phase | 380V, Three phase | 380V, Three phase |
Power | 12.1kw | 20.8kw | 23.8kw | 27.8kw |
Dimension | 14200x950x1800mm | 18200x1150x1800 | 24200x1450x1800 | 28250x1750x1800 |
Weight | 2000KG | 2450KG | 3400KG | 4100KG |
Industrial chocolate coating production line demo video:
Industrial chocolate coating line in customer factory:
Industrial chocolate enrobing production line in production:
Food coated by chocolate coating line:
Application:
Chocolate coating line for ball products video:
Chocolate coating line for cake products video:
Chocolate coating line for protein bar products video:
Chocolate coating line for biscuit stick products video:
Chocolate coating line for dounut product video:
Chocolate coating line for strawberries video:
As a professional chocolate machine manufacturer and supplier, our chocolate coating line are exported to a lot of countries, especially to USA, Australia and Europe, we also have different kinds of food making machine to match the chocolate coating machine, please feel free to contact us if you have any questions in our chocolate coating line!
