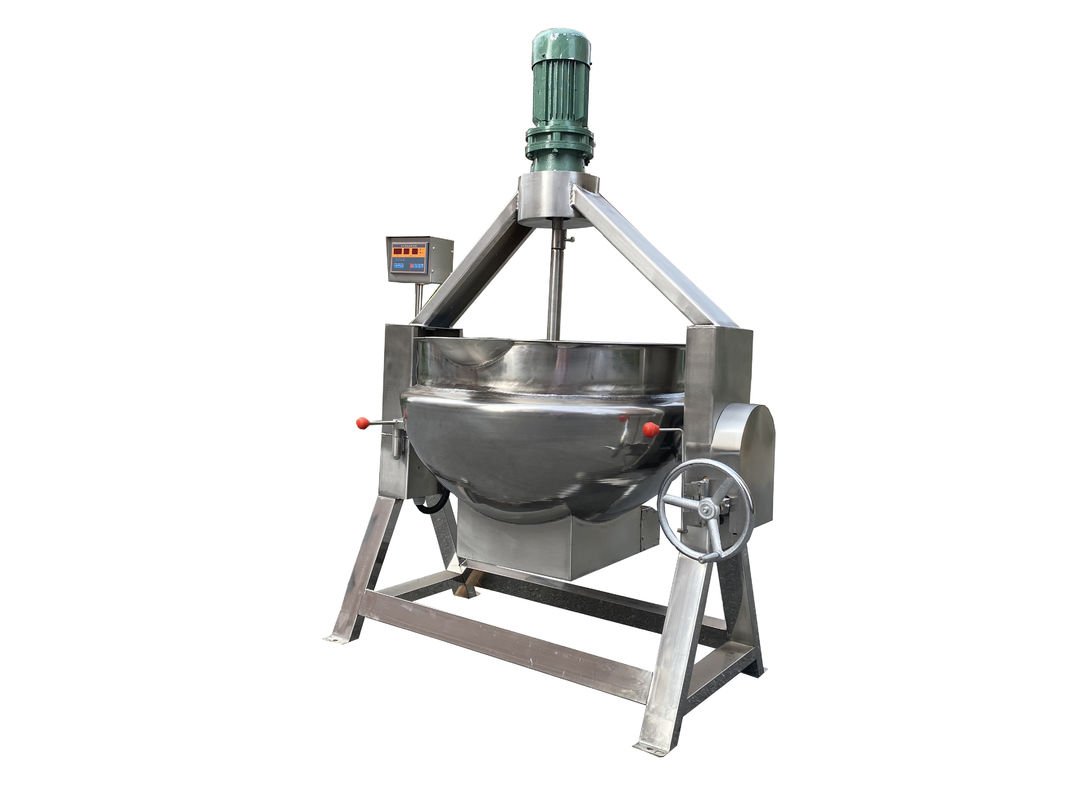

Industrial sugar Syrup Boiler Machine/Sugar Cooker Machine with Agitator
Industrial sugar Syrup Boiler Machine is also known as steam kettle, cooking kettle, jacketed steam kettle, mainly consists of kettle body and feet. The kettle body is double-layer structure composed of both inner and outer spherical kettle, with 380V electric power as heat source. Inner layer is assembled with electric heating rods, electric thermocouple and heat conducting oil (self-contained), heating up to 320°C for the max. An electric control box is equipted with automatic temperature control system. The kettle is featured with such advantages as wide heating area, uniform heating, high thermal efficiency, short boiling time, easy to control heating temperature, etc..
A. The vertical Jacketed kettle consists of pot body, vertical supporting legs, stirring system, heating system, transmission device, stirring shaft, hydrolytic system and so on.
B. From the structure, it can be divided into vertical, vertical mixing, tilting and tilting mixing.
C. From the heating type, it can be divided into steam heating(steam as a heat source), gas heating(LPG or natural gas as a heat source), gas heat transfer oil and electric heat transfer oil(heat transfer oil as a heat source).
D. From the material, it can be divided into all-steel type A(all made of stainless steel),
all-steel B-type( pot body and jacket are made of stainless steel, the frame and legs are made of carbon steel and semi-steel type(pot is made of stainless steel, the jacket, frame and legs are made of carbon steel)
1.Fully automatic system extremely increase customers working efficiency.
2.Pot volume ranges from 100L up to 800L.
3.Distinct mixing system caters for clients' strict working demand.
4.Robot welding system keeps our product away from any crack.
5.Wireless temperature sensor minimize temp tolerance.
6.PTFE scrappers durable for high temp, high errosion material.
7.Sealed mixing head enables machine's working much long time.
8.Mixing arm tilted backwards automatically before discharging.
9.Cooking arm tiled to 90° hydraulically to allow easy discharge of food materials.
10.Wide application for all kinds of food or snack.
Industrial Electric Syrup Cooker with mixer video:
Automatic Syrup Cooking Pot Syrup Cooker with mixer can be widely used in a variety of food cooking process. Such as curry paste, ketchup, meat, vegetable, soup, congee, potato sauce, chili sauce, fruit jame, glutinous cake as well as dry materials like flour, bean, peanut, wheat etc. This machine can be used in large restaurant, school, factory etc.
Wlcome to send us an inquiry if you are interested in our Industrial Electric Syrup Cooker with mixer!
